SDA Operator’s Manual

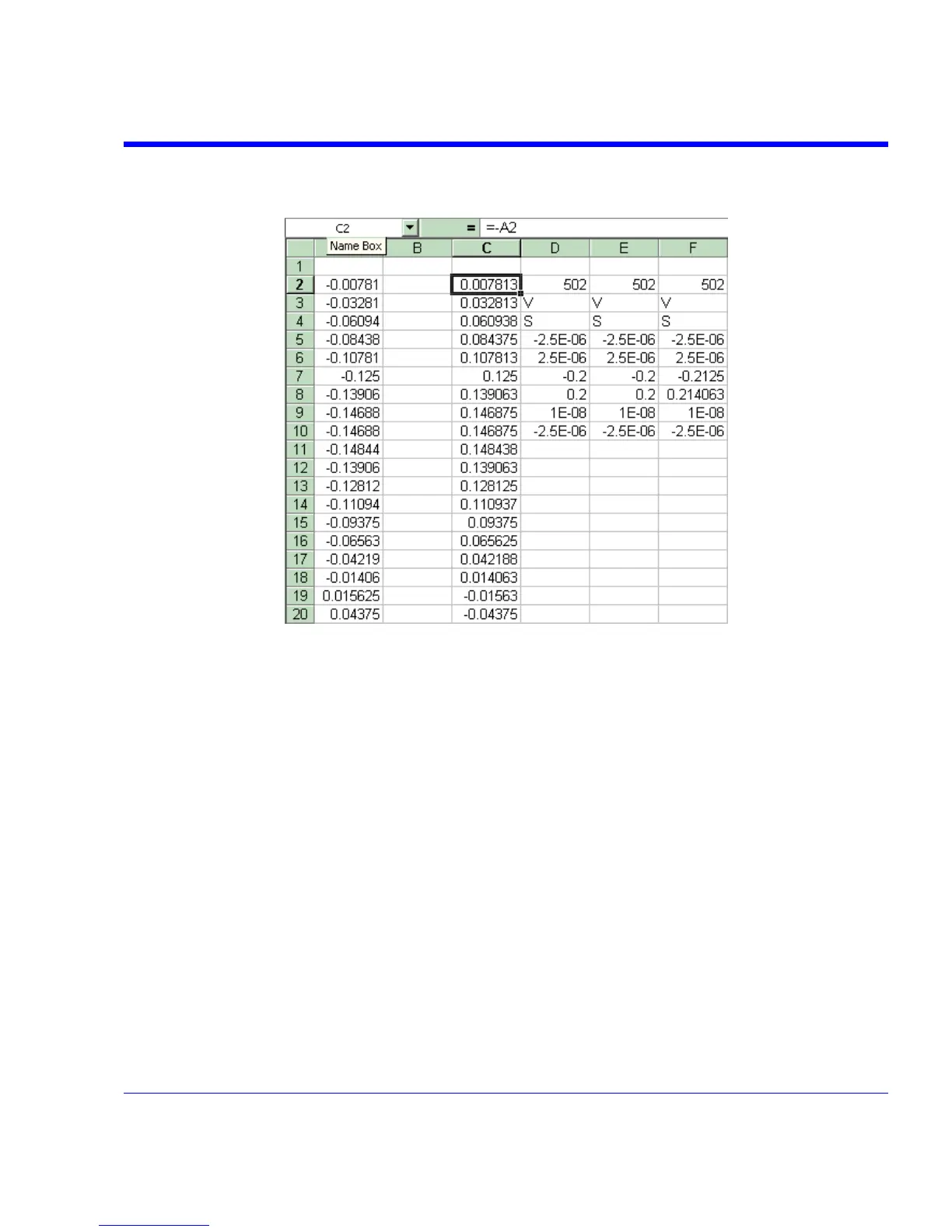

To get the output values in column C, we set C2 = - A2 and copy this formula down the column.

This is the only action needed in Excel, and can be seen in the next figure:

SDA-OM-E Rev H 233
