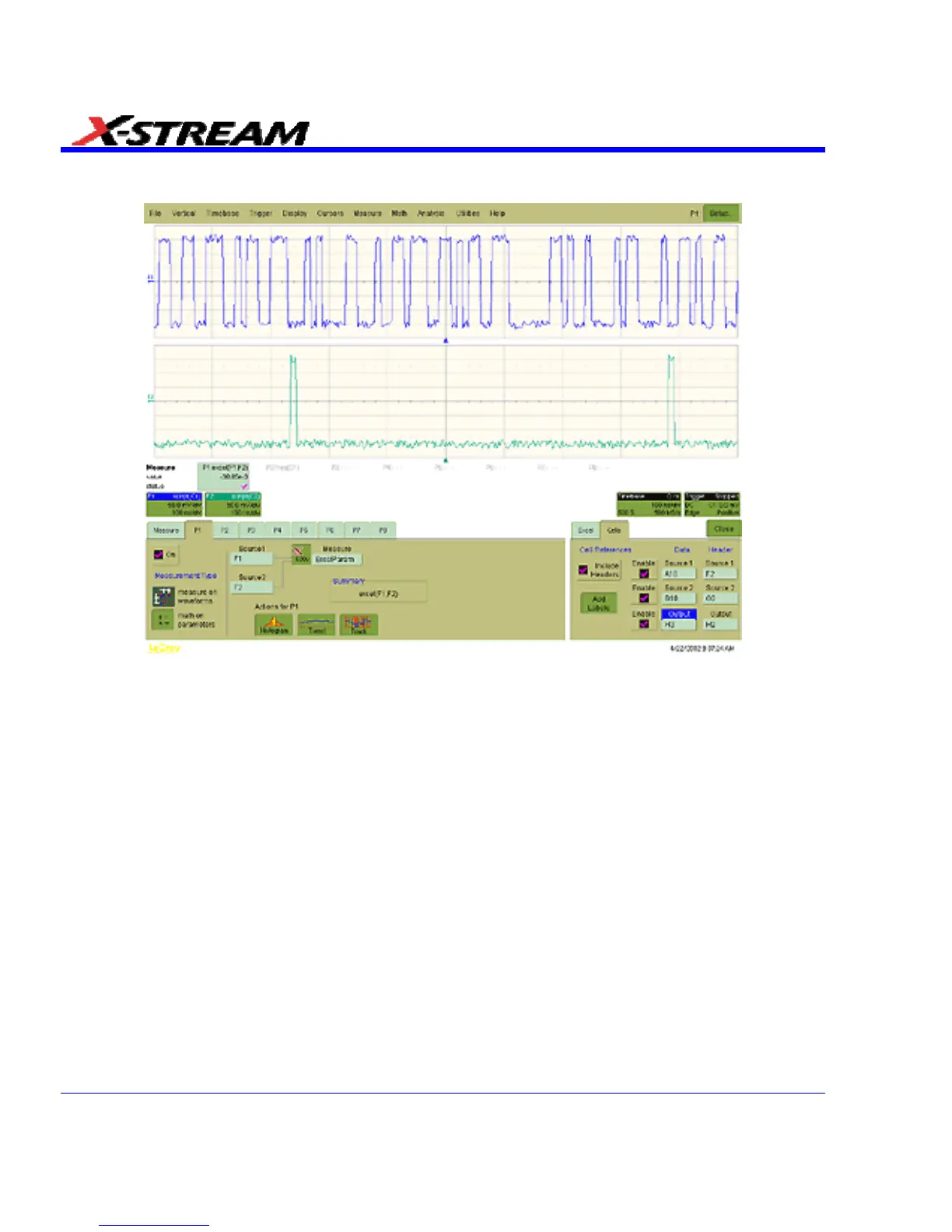

This figure shows the instrument screen:
These traces were made using VBS scripts in functions F1 and F2, based on pseudo-random
numbers to provide noise and varying pulse widths. Randomize Timer was used in both scripts
ensuring successive acquisitions to produce different data. Script F1 generates pulses having
widths that are multiples of a set clock period. F2 generates one pulse in the first half of the time
window, and one pulse in the second half. Both pulses are constrained to coincide with the clock
pulses of F1. F1 and F2 are used here only as simulations and are not part of the measurement
process, which only uses P1.
The call to Excel is made through Parameter P1.
