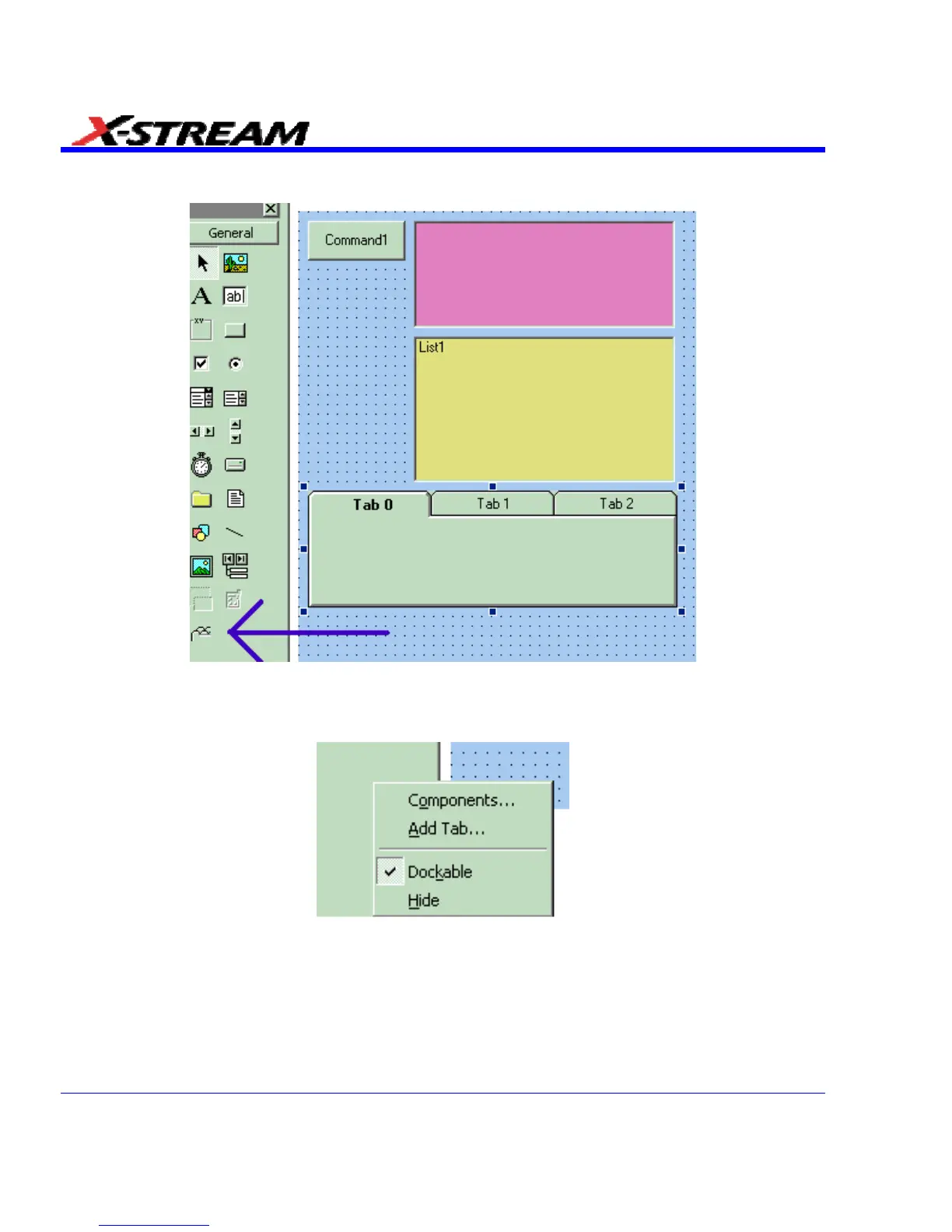

In the next example you can see a command button, a picture box, a list box and a Tabbed

Dialog Control.

The Tabbed Control (arrow) is not in the basic tool box. To gain access to it, right click in the tool

box at left (but not on an icon.) You will see this menu:
