A group of buttons is provided to quickly set the pattern to all 1s, all 0s, or all Xs. And a fourth

button is provided to invert the entire data pattern:

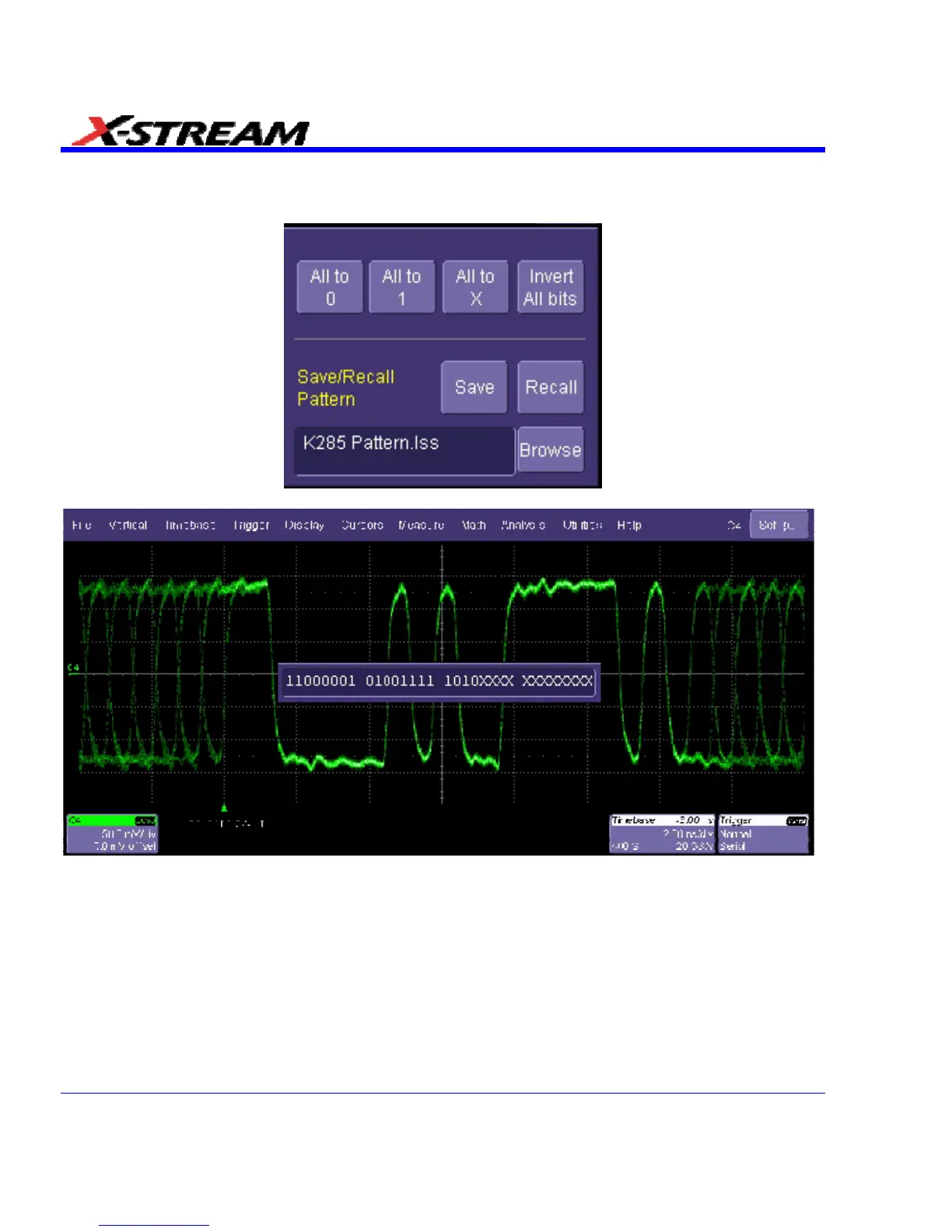

Example Bit Pattern and Resulting Waveform

324 SDA-OM-E Rev H
