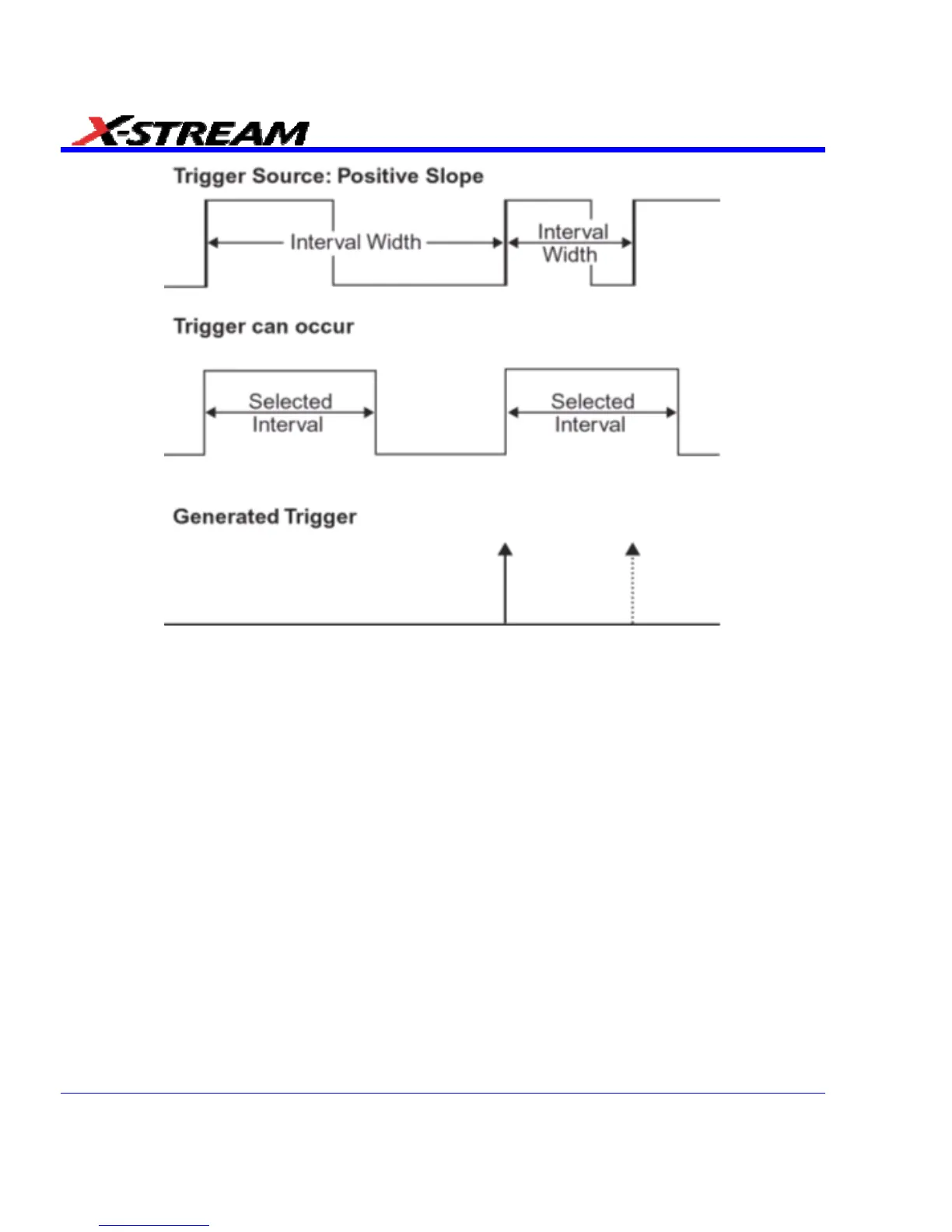

Interval Trigger that triggers when the interval width is smaller than the selected interval. The broken, upward-
pointing arrow indicates a potential trigger, while the bold one shows where the actual trigger occurs on the
positive edge within the selected interval.
Interval Greater Than: For this Interval Trigger, generated on an interval larger than the one that
you set, select a minimum interval between two edges of the same slope. The instrument
generates the trigger on the second edge if it occurs after the set interval. The timing for the
interval is initialized and restarted whenever the selected edge occurs. You can set an interval
from 2 ns to 20 s.
86 SDA-OM-E Rev H
