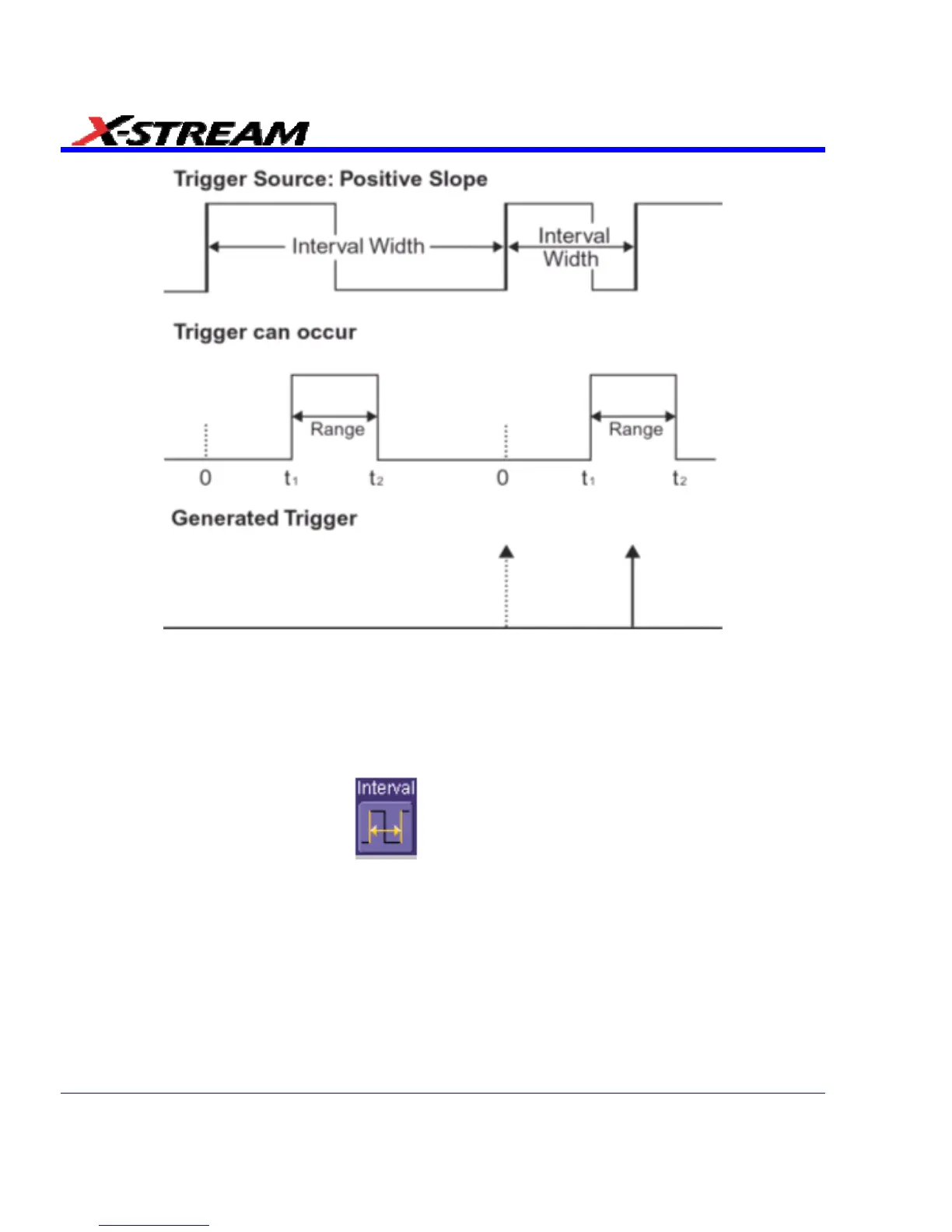

Interval Trigger that triggers when the interval falls within the selected range:
t1 = range's lower time limit; t2 = range's upper limit. The broken upward-pointing arrow indicates a potential
trigger, while the bold one indicates where the actual trigger occurs on the positive edge within the selected
range.
Interval Trigger Setup
1. In the menu bar, touch Trigger, then Trigger Setup... in the drop-down menu.
2. Touch the Interval trigger button
.
3. Touch inside the Trigger On data entry field and select a source on which to trigger.
Touch inside the Level data entry field and enter a value using the pop-up numeric keypad.
4. Select positive or negative slope.
5. Touch the LessThan button and enter a pulse-width value in the Upper Limit data entry
field.
Or touch the GreaterThan button and enter a value in the Lower Limit data entry field.
Or touch the InRange button.
88 SDA-OM-E Rev H
