SDA Operator’s Manual
How Dropout Trigger Works

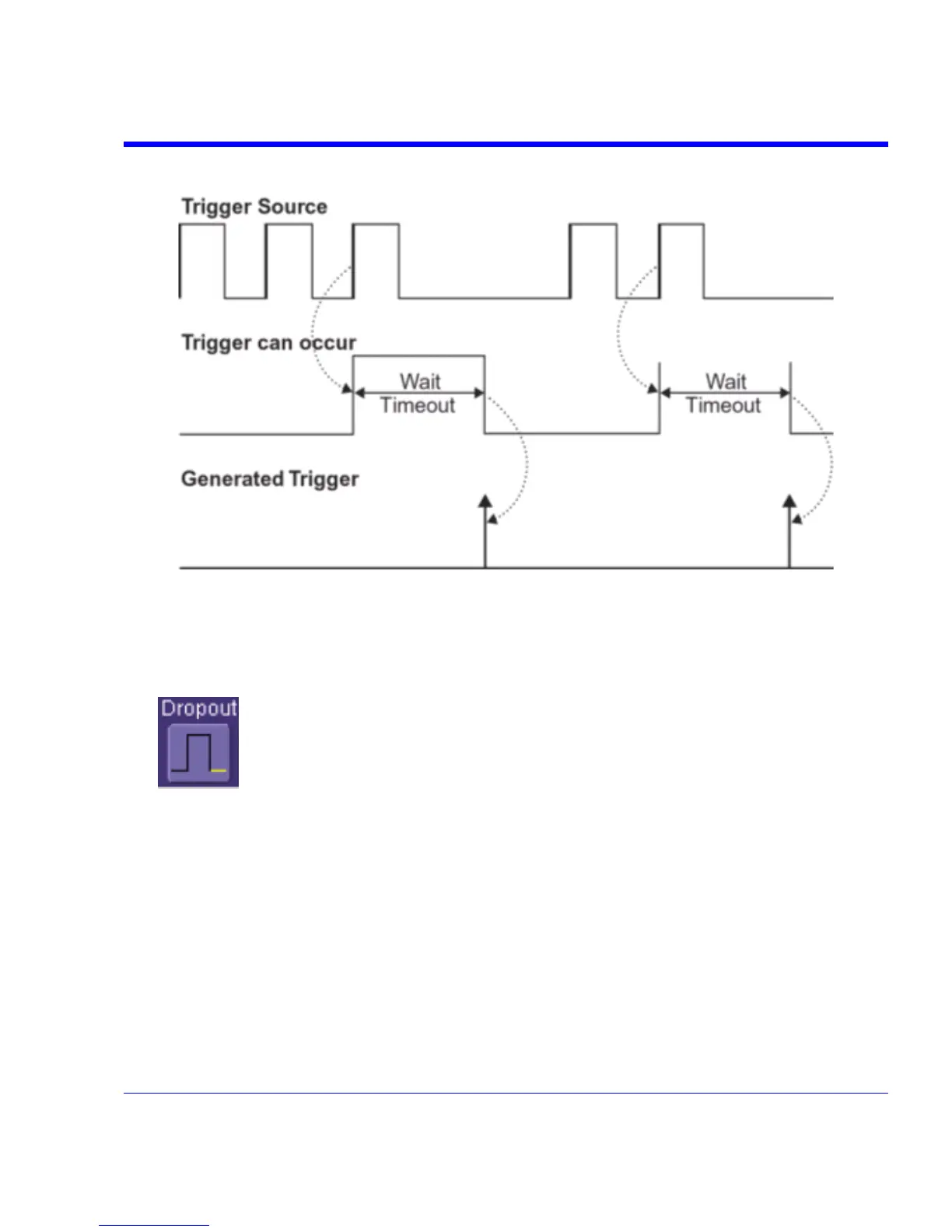

Dropout Trigger: occurs when the timeout has expired. The bold upward-pointing arrows show where the trigger
occurs.
Dropout Trigger Setup
1. In the menu bar, touch Trigger, then Trigger Setup... in the drop-down menu.
2. Touch the Dropout trigger button.
3. Select Positive or Negative slope.
4. Touch inside the Trigger after timeout data entry field and enter a time window using the
pop-up numeric keypad.
