16 Working with the FB Editor
16.3 Using the FB Editor as "Viewer"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3. Click the symbol to edit the display format of the selected inputs/outputs.

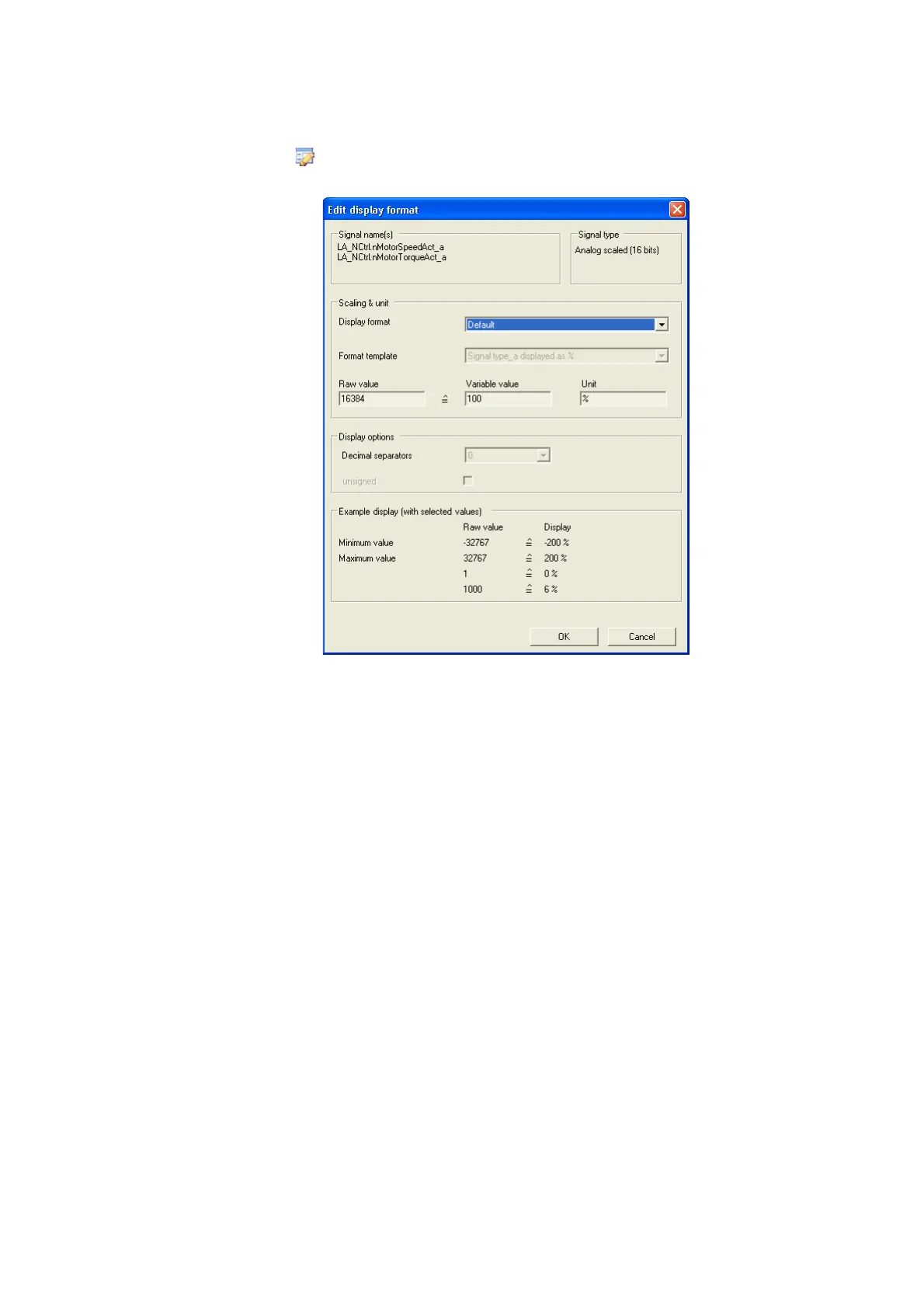

•The Edit display format dialog box is displayed:
4. Go to the Display format list field and select the "User-defined" entry.
5. Go to the Format template list field and select "No template".
6. Select the required scaling, unit, number of decimal positions, and sign handling.
7. Click OK to accept the settings and close the Edit display format dialog box.
•The Display format dialog box now displays the text "User-defined" for the changed
inputs/outputs in the Format column.
After all required formats have been changed:
8. Click Back to close the Display format dialog box.
• For online monitoring, the changed format is used.
