2.3.2 Change parameter settings with PC and Lenze software
The USB diagnostic adapter, for instance, can be used for the communication between the PC
(including the »EASY Starter« or » Engineer« software) and the inverter, see the following
illustration. The USB diagnostic adapter is the connection between the PC (free USB port) and the
inverter (X6 diagnostic interface).

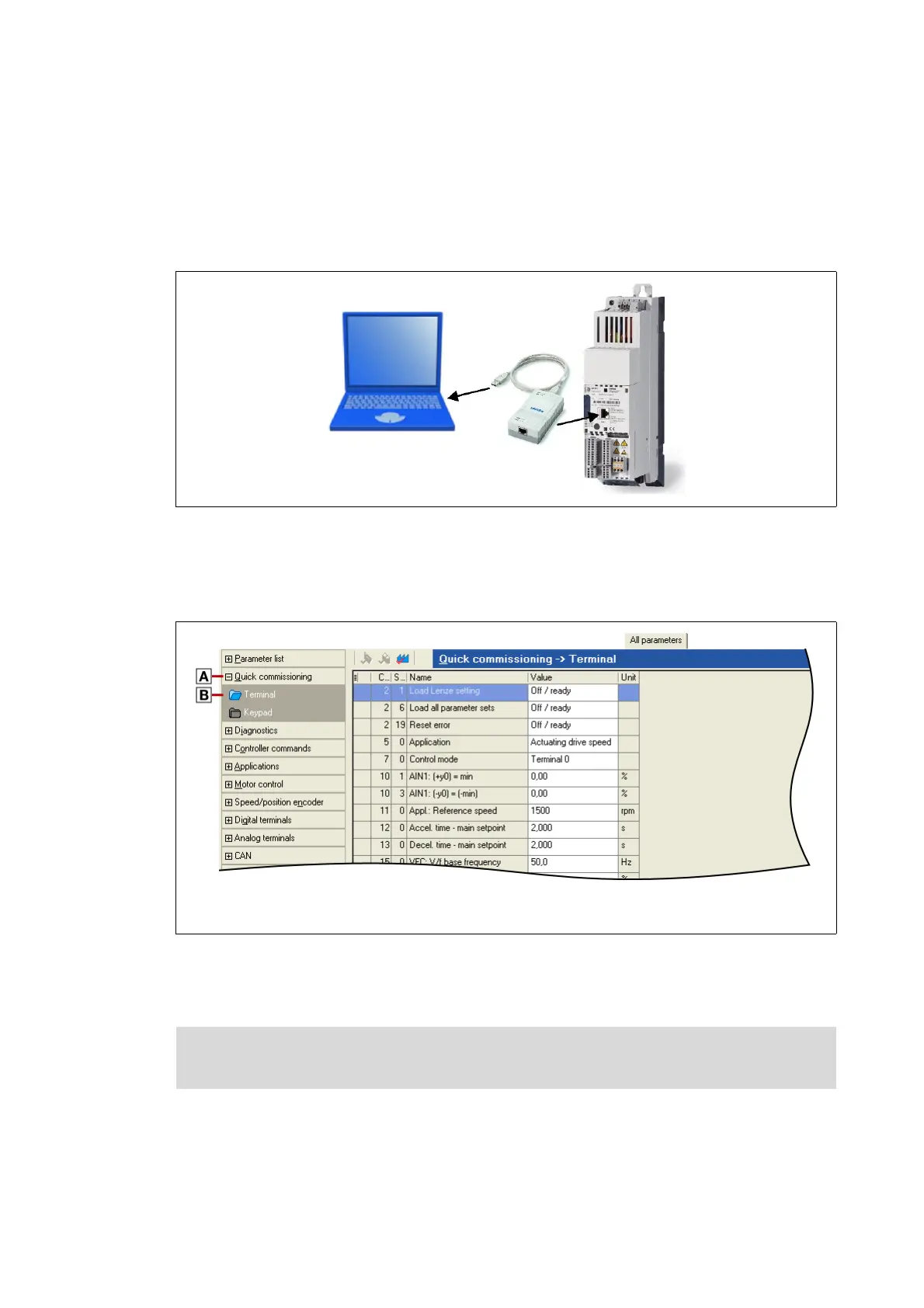

[2-3] Exemplary constellation for parameterising the inverter
The All parameters tab in the »EASY Starter« and the »Engineer« provides a quick access to all
parameters of the inverter.
The given categories and subcategories correspond 1:1 to the menus and submenus of the keypad:
[2-4] All parameters tab in the »Engineer«
Moreover, the »Engineer« provides a commissioning interface on the Application parameters tab
where you can commission the application in a few steps.
 Category
 Subcategories
 Detailed information on how to handle the »Engineer« can be found in the integrated
online help that you can call with the [F1] function key.
