5.5.2 Comparison of VFCplusEco - VFCplus
The following characteristics show the impact of the energy-saving V/f characteristic control
(VFCplusEco) compared to the standard V/f characteristic control (VFCplus).
• The characteristics were recorded with a standard asynchronous motor 2.2 kW with energy
efficiency class IE1 at speed = 600 rpm.

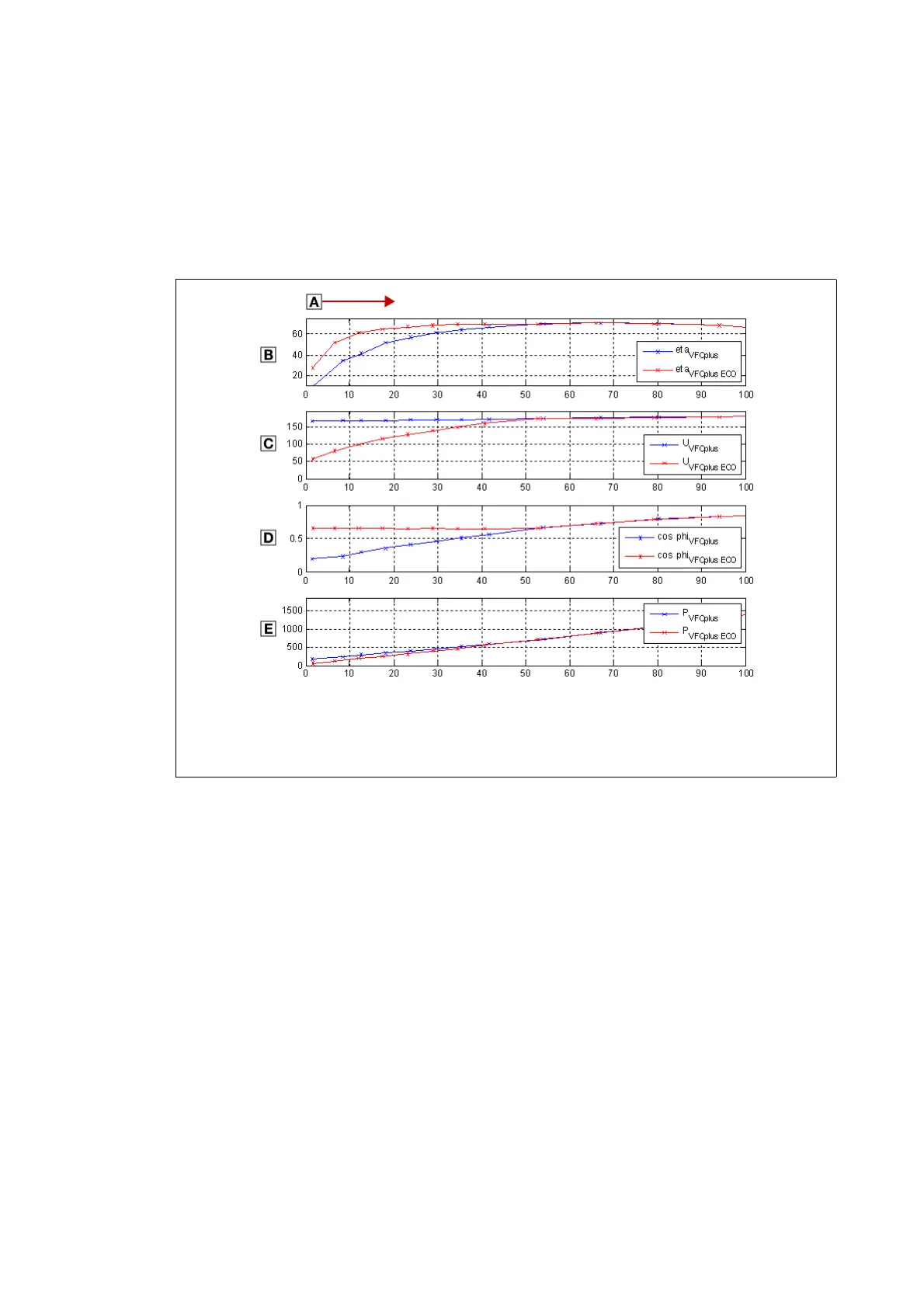

[5-8] Comparison of VFCplusEco - VFCplus
 scaled torque in [%]
 efficiency in [%]
 motor voltage in [V]
 power factor
 electrical power in [W]
