17.1.28.1 Function 1: dnIn1 = dnIn2
This function compares two signals with regard to equality. It can, for instance, provide the
comparison "actual speed equals setpoint speed" (n
act
=n
set
).
•Use C01672
to set the window within which the equality is to apply.
•Use C01671
to set a hysteresis if the input signals are not stable and the output oscillates.

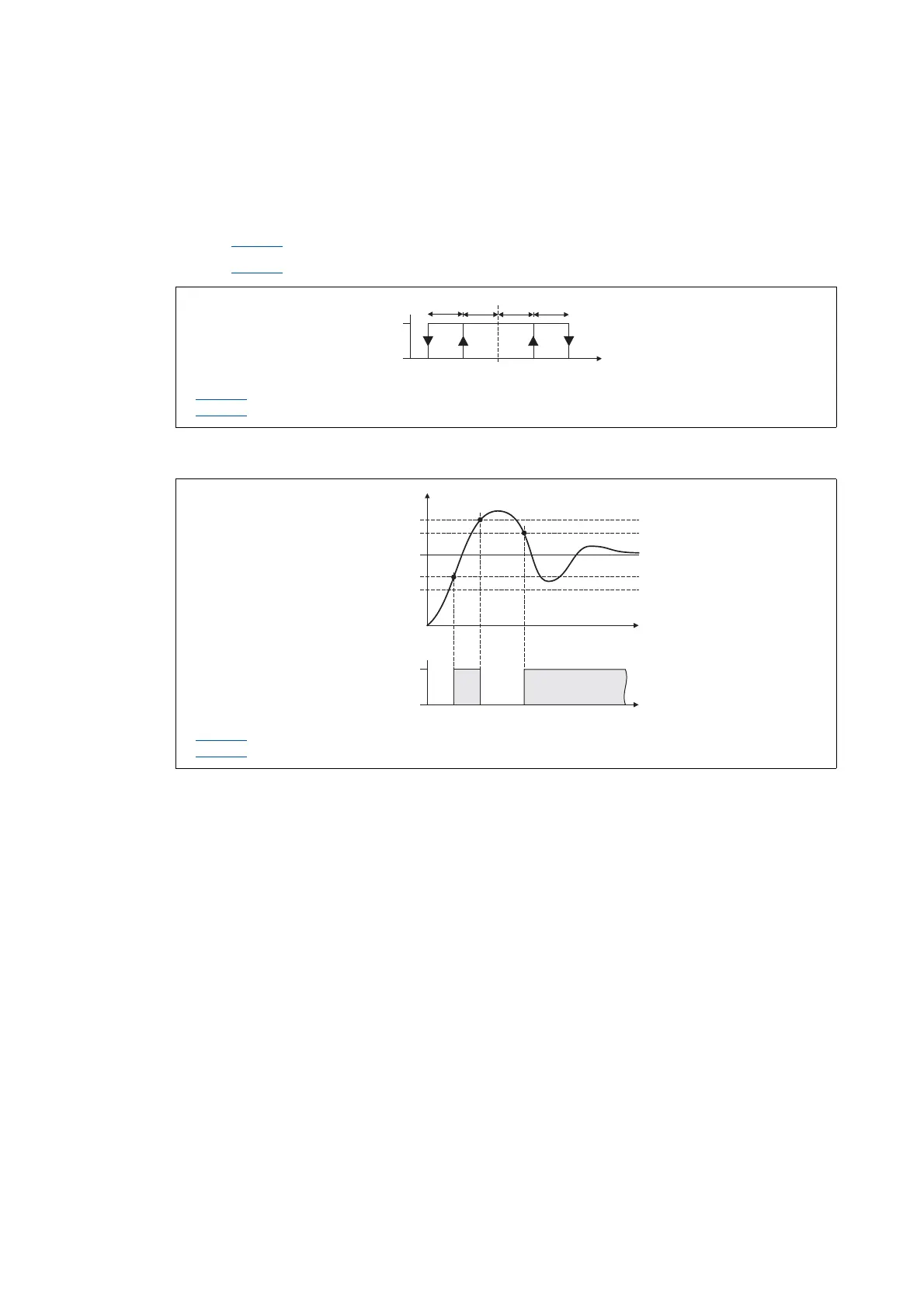

[17-12] Function 1: Switching performance
[17-13] Function 1: Example
 C001671: Hysteresis
 C001672
: Window
TRUE
FALSE
bOut
dnIn2_p
dnIn1_p
 
 C001671: Hysteresis
 C001672
: Window
dnIn1_p
dnIn2_p
TRUE
FALSE
bOut
t
t




