3 Commissioning
3.10 PC manual control
94
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.10.3 Set/reset home position
The measuring system in the machine is selected by means of homing and the 0 position is set
within the possible physical travel range.

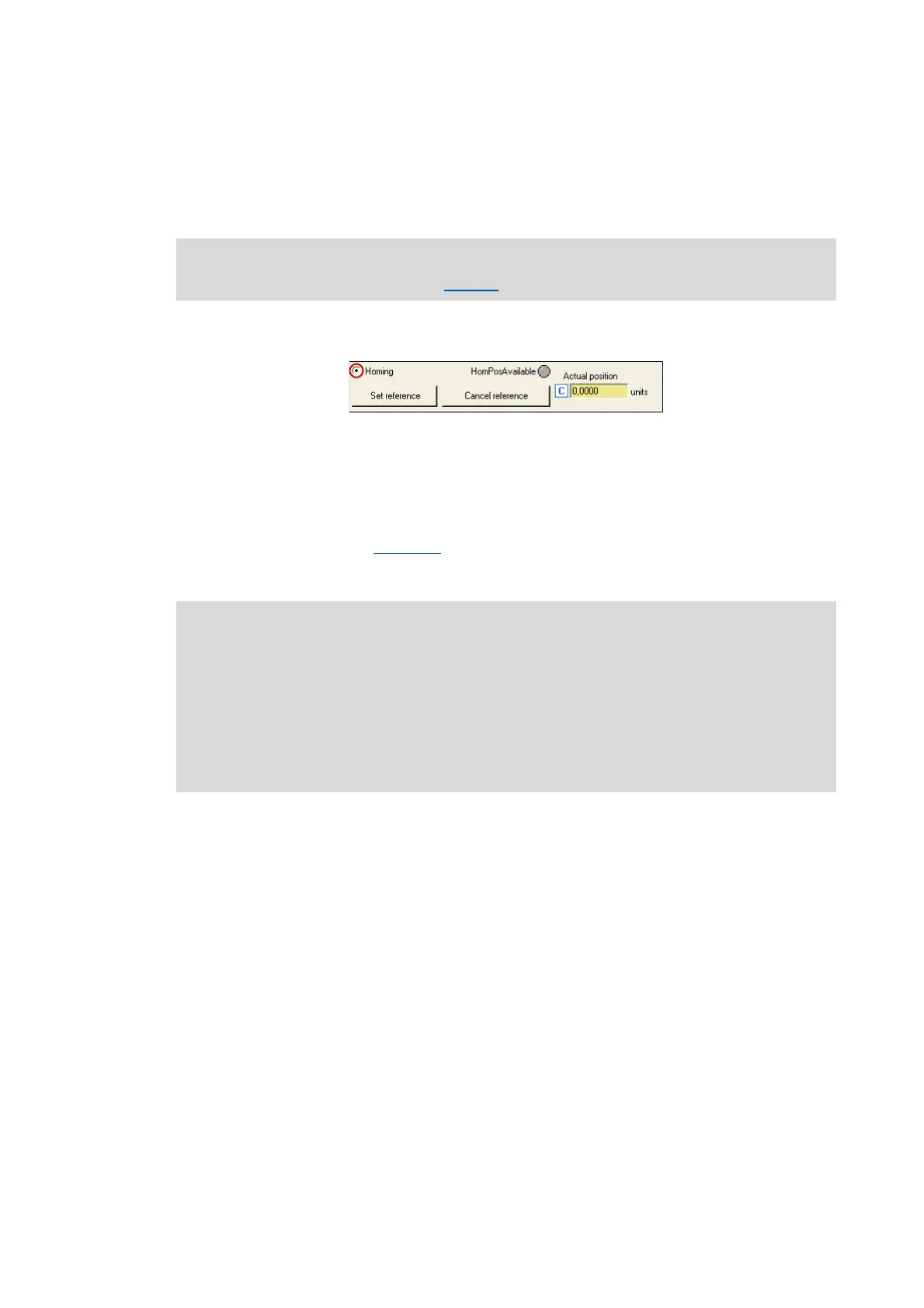

A change to the "Homing" operating mode is made by selecting the correspondent option on the
Positioning tab:
How to set the reference manually with standing drive:
Click the Set reference button.
The current actual position in the machine measuring system now corresponds to the
home position set in C01227/2
(Lenze setting: 0.0000 units).
Detailed information on the "Homing" operating mode is provided in chapter "Basic
drive functions" in subchapter "Homing
". ( 553)
Stop!
If you set the reference with PC manual control, the drive is referenced with it.
If another home position is used for normal operation:
Click Cancel reference and reset the status signals HomPosAvailable and HomePosDone
in the MCK status word in order that no mechanical problems occur in normal operation.
• Setpoints and actual positions remain untouched until a renewed reference setting or
homing.
