17.1.59 L_ConvWordToBits_2

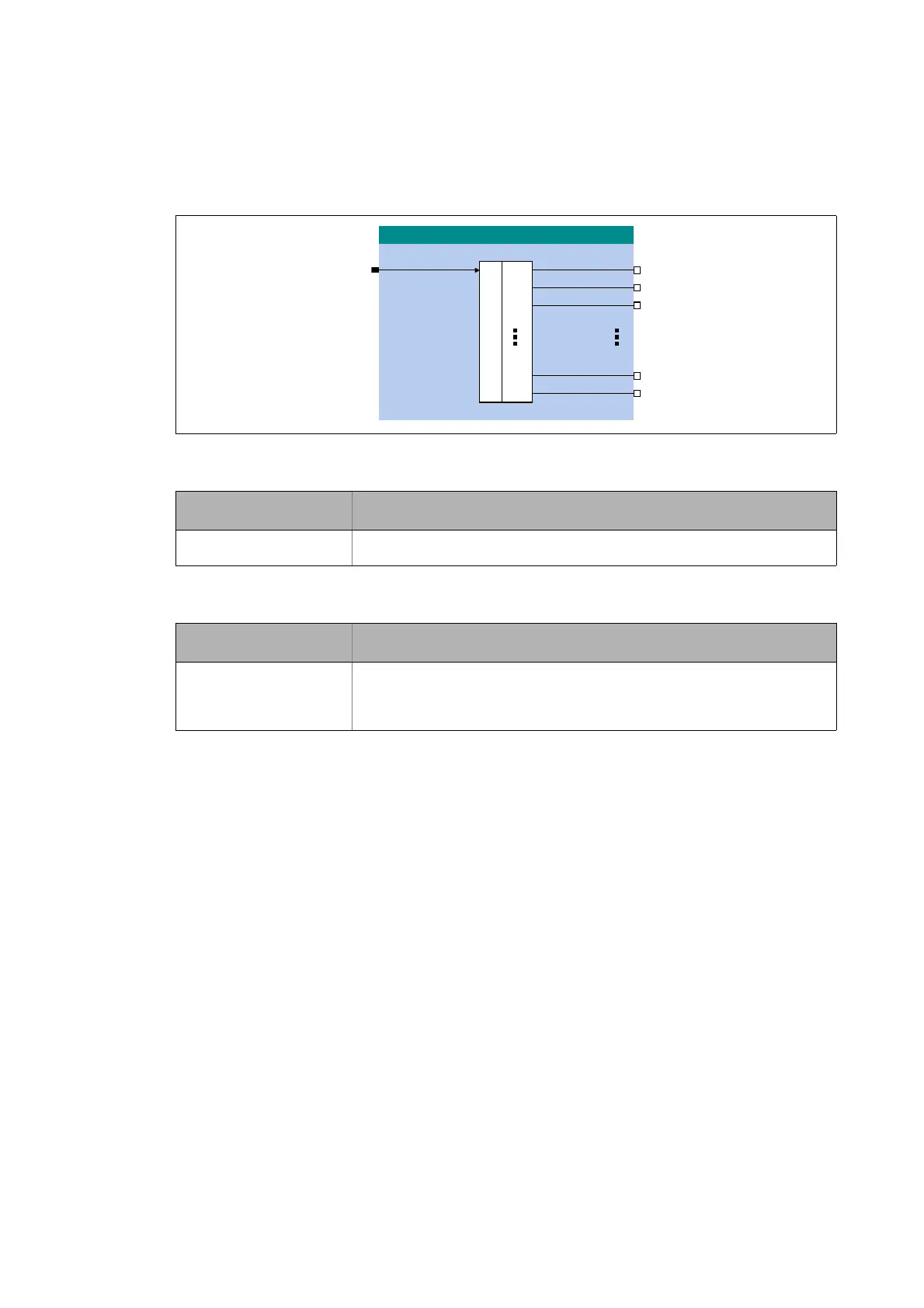

This FB converts an input value of "WORD" type into 16 individual binary signals.
Inputs
Outputs
Designator
Data type
Information/possible settings
wInput
WORD
Input signal
Designator
Data type
Value/meaning
bBit0
...
bBit15
BOOL
Output signal
/B&RQY:RUG7R%LWVB
E%LW
Z,QSXW
%LW
%LW
%LW
%LW
%LW
:25'
E%LW
E%LW
E%LW
E%LW
