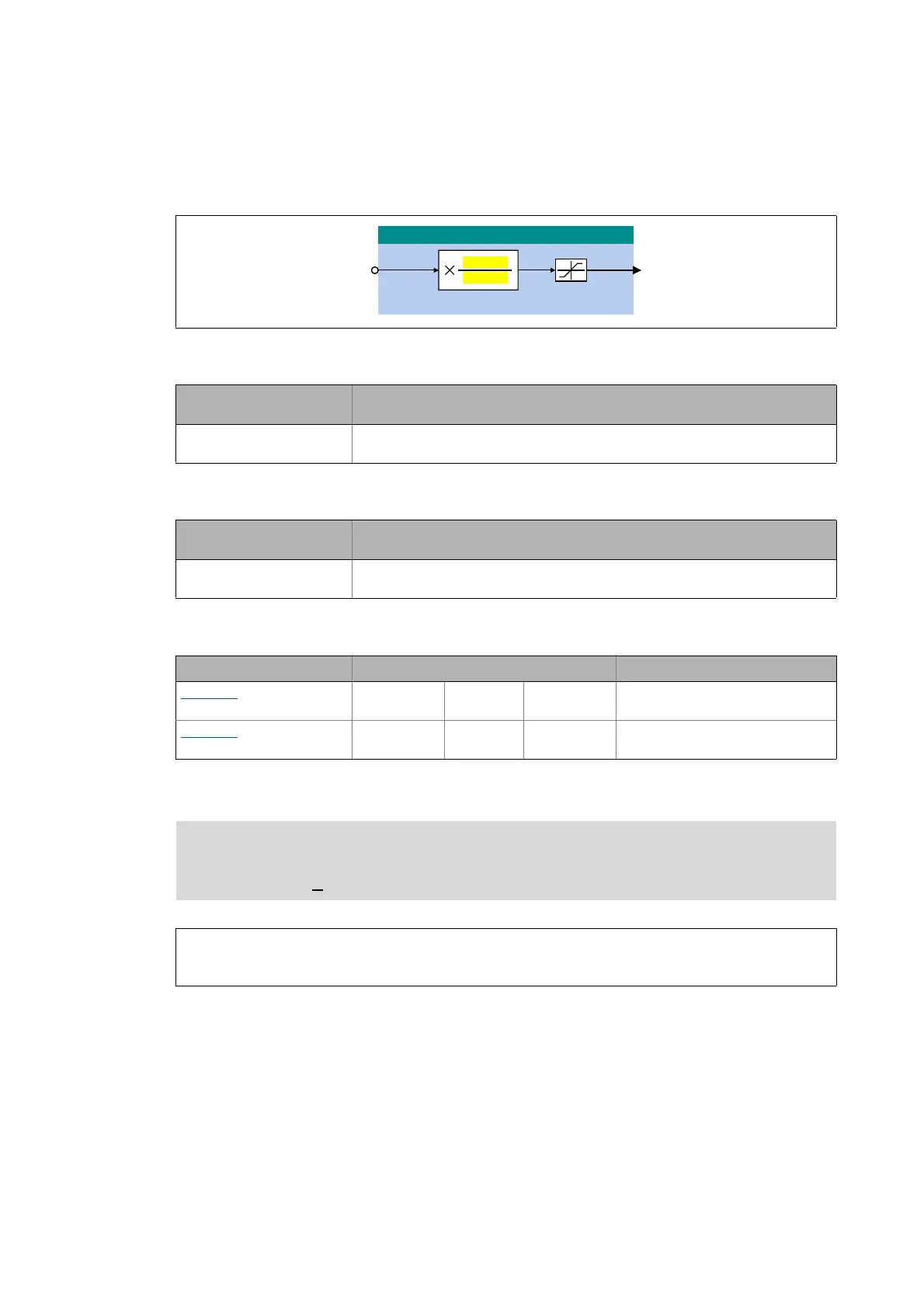

17.1.33 L_ConvAP_1
This FB converts an analog value into a position.
Inputs
Outputs
Parameters
Function
Designator
Data type
Information/possible settings
nIn_a
INT
Input value
• Scaling: 16384 ≡ 100 %
Designator
Data type
Value/meaning
dnOut_p
DINT
Output signal
• Internal limitation to ±2
31
-1 (±2147483647)
Parameters Possible settings Info
C01045/1
-32767 32767 Counter
•Lenze setting: 1
C01045/2
-32767 32767 Denominator
•Lenze setting: 1
 Note!
Conversion is remainder considered.
/B&RQY$3B
Q,QBD GQ2XWBS
&
&



dnOut_p nIn_a
C01045/1
C01045/2
-------------------------
⋅=
