17.1.95.3 Angle correction in case of transmission errors
If an angular offset between master and slave is caused due to transmission errors (missing data
telegrams), it will be corrected by a catch-up function in the FB. For this purpose, the following
connections and parameter settings are required for the slave at the FB L_Interpolator_1:
1. The master angle of the master is connected to the dnPhiIn_p input.
2. The speed signal of the master is connected to the nNIn_a input.
3. The nNOut_a output is connected to the nSet_v input of the FB L_DFSET_1
.
The following illustration shows the principle of the catch-up function in the FB L_Interpolator_1:

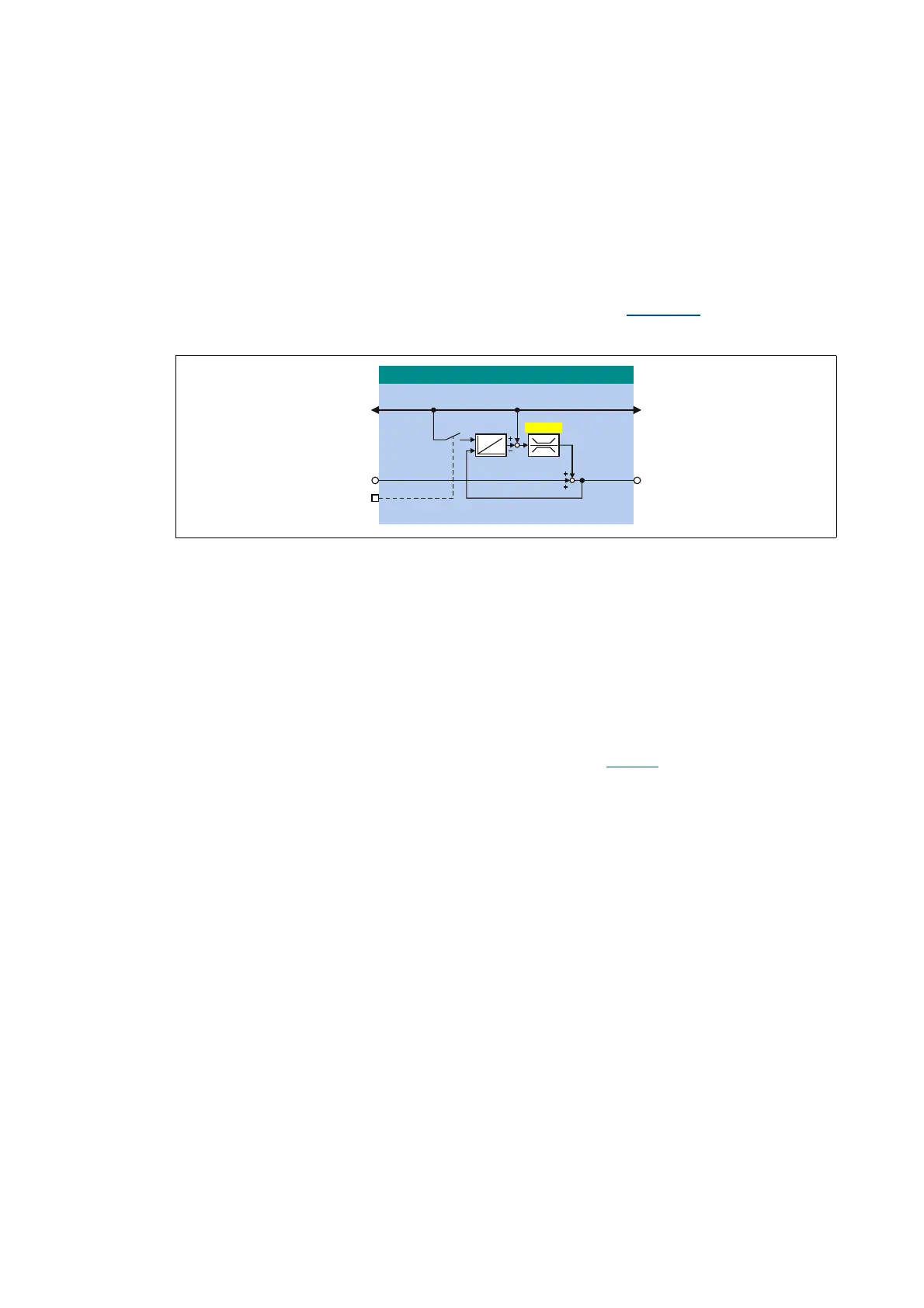

[17-42] Principle of the catch-up function
The speed signal at nNIn_a is provided almost 1:1 at the nNOut_a output. In case of a telegram
error, a correction value can be added to the signal. This correction value results from the
subtraction of the integrated speed signal from the position value applied at dnPhiIn_p.
If, for example, a data telegram should fail, the input values remain constant for one program cycle.
During the next cycle, the correct position and the correct speed are restored.
"Holding" the position at dnPhiIn_p results in a difference between the position values at dnPhiIn_p
and at the output of the integrator. This difference is added to the nNOut_a output signal.
In order that this angle correction does not lead to a strong jerk in the master value, the amount of
correction increments is limited per cycle (catch-up cycle) using C00953
. A typical correction value
is for instance 10 increments/ms.
When the controller is inhibited, the integrator is to be loaded with the position value pending at
dnPhiIn_p by setting the bSpeedAct0 input to TRUE. When the controller is enabled, the nNOut_a
speed signal is integrated.
