17 Function library
17.1 Function blocks | L_ArithmetikPhi_1
1265
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

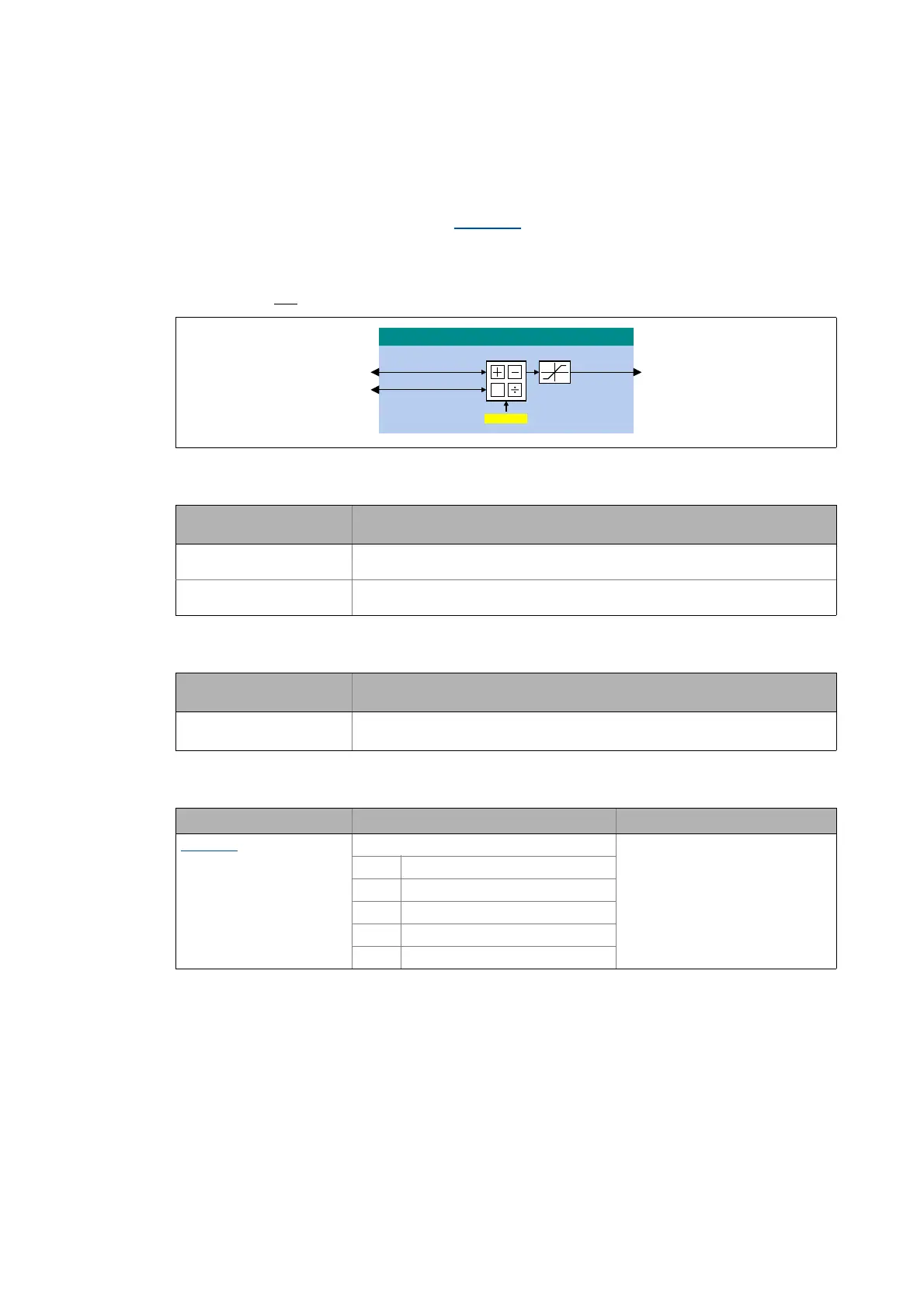

17.1.19 L_ArithmetikPhi_1
This FB can implement an arithmetic link between two angle signals.
• The arithmetic function is selected in C01010/1
.
• All internal intermediate results and the value provided at the dnOut_p output are internally
limited to ±2147483647 (±2
31
-1).
• Division is not
remainder considered.
Inputs
Outputs
Parameters
Designator
Data type
Information/possible settings
dnIn1_p
DINT
Input signal 1
dnIn2_p
DINT
Input signal 2
Designator
Data type
Value/meaning
dnOut_p
DINT
Output signal
• Internal limitation to ±2147483647
Parameters Possible settings Info
C01010/1
Function selection
0 dnOut_p = dnIn1_p
1 dnOut_p = dnIn1_p + dnIn2_p
2 dnOut_p = dnIn1_p - dnIn2_p
3 dnOut_p = dnIn1_p * dnIn2_p
4 dnOut_p = dnIn1_p / dnIn2_p
/B$ULWKPHWLN3KLB
GQ,QBS GQ2XWBS
GQ,QBS
r

&
)XQFWLRQ
