6.3.4 Internal interfaces | System block "LS_AnalogOutput"

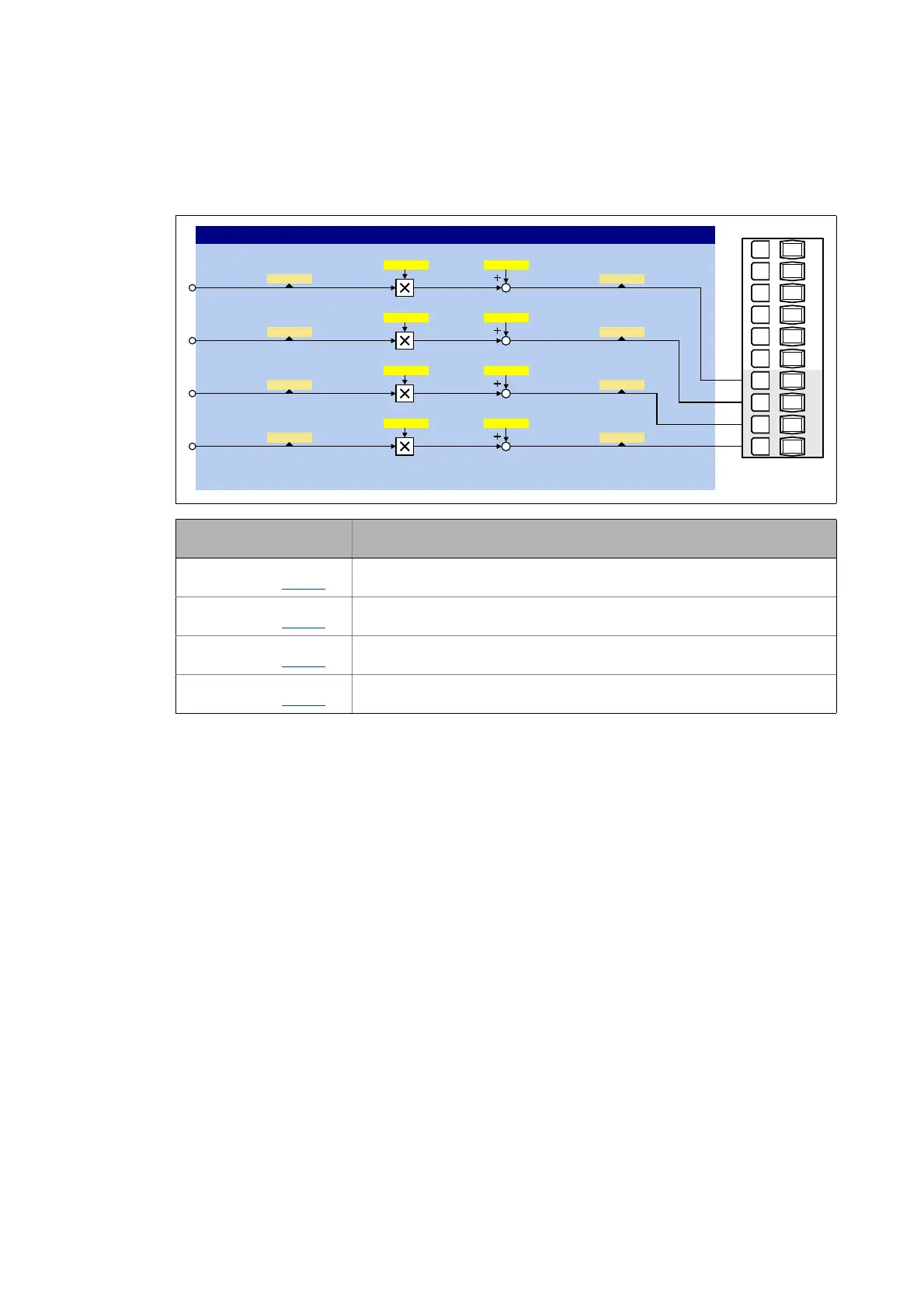

The LS_AnalogInput system block maps the analog outputs in the FB editor.
Input
DIS code | data type
Information/possible settings
nOut1V_a
C00439/1 | INT
Analog output 1 (voltage)
• Scaling: 2
14
≡ 16384 ≡ 10 V
nOut1I_a
C00439/3 | INT
Analog output 1 (current)
• Scaling: 2
14
≡ 16384 ≡ 20 mA
nOut2V_a
C00439/2 | INT
Analog output 2 (voltage)
• Scaling: 2
14
≡ 16384 ≡ 10 V
nOut2I_a
C00439/4 | INT
Analog output 2 (current)
• Scaling: 2
14
≡ 16384 ≡ 20 mA
