Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1374
17 Function library
17.1 Function blocks | L_DigitalLogic_3
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

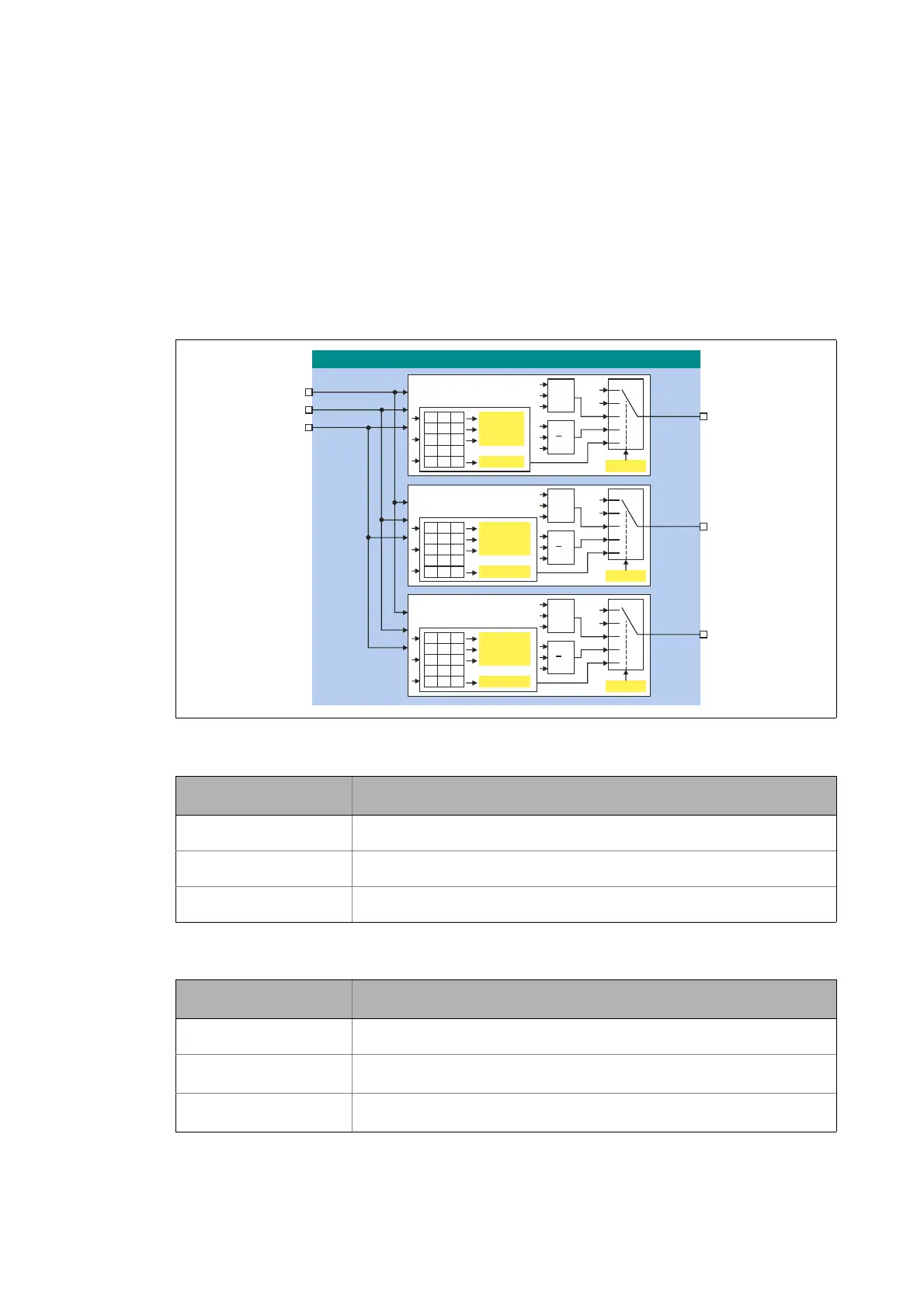

17.1.79 L_DigitalLogic_3
This FB provides a binary output signal created by a logic operation of the input signals. Optionally,
one of the constant binary values independent from the input signals can be output.
Output of a constant binary value
AND operation of the inputs
OR operation of the inputs
Output depending on the combination of the input signals
Inputs
Outputs
Designator
Data type
Information/possible settings
bIn1
BOOL
Input signal 1
bIn2
BOOL
Input signal 2
bIn3
BOOL
Input signal 3
Designator
Data type
Value/meaning
bOut
BOOL
Output signal 1
bOut2
BOOL
Output signal 2
bOut2 is available from version 16.00.00 onwards
bOut3
BOOL
Output signal 3
bOut3 is available from version 16.00.00 onwards
/B'LJLWDO/RJLFB
E,Q
E,Q
E,Q
E2XW
!



&
&
&
&
&
E2XW
!



&
&
&
&
&
E2XW
!



&
&
&
&
&
