6 I/O terminals
6.4 Touch probe detection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.4.1 Parameter setting

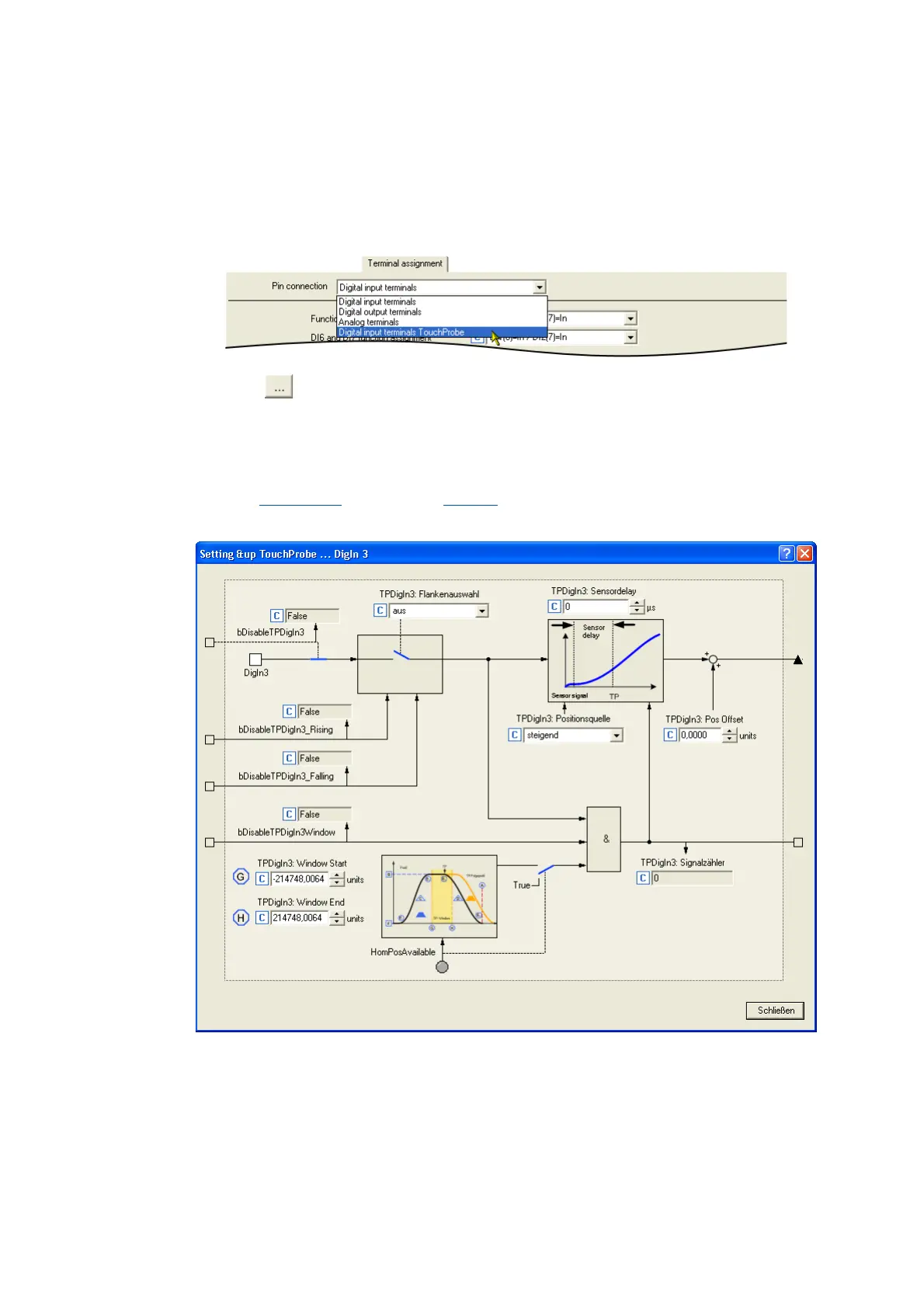

Proceed as follows to open the parameterisation dialog for setting a TP signal source:
1. Go to the Terminal Assignment tab and select "Digital input terminals TouchProbe" in the
Control connections list field:
2. Click the button for the digital input that is to be set for the touch probe detection.
 Tip!
If the "Table positioning" technology application is used, the following parameterisation
dialog can be opened for the selected TP signal source in the parameterisation dialogs for
the Profile entry
and the basic "Homing" function via the Set up touch probe... button:
