16 Working with the FB Editor
16.2 User interface
1198
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.2 User interface
How to access the FB Editor:
1. Go to the Project view and select the 8400 inverter.
2. Go to Workspace and select the FB Editor tab.
The FB Editor displays the wiring of the technology function selected in C00005
. The
interconnection of the I/Os of the inverter depends on the control mode selected in
C00007
.

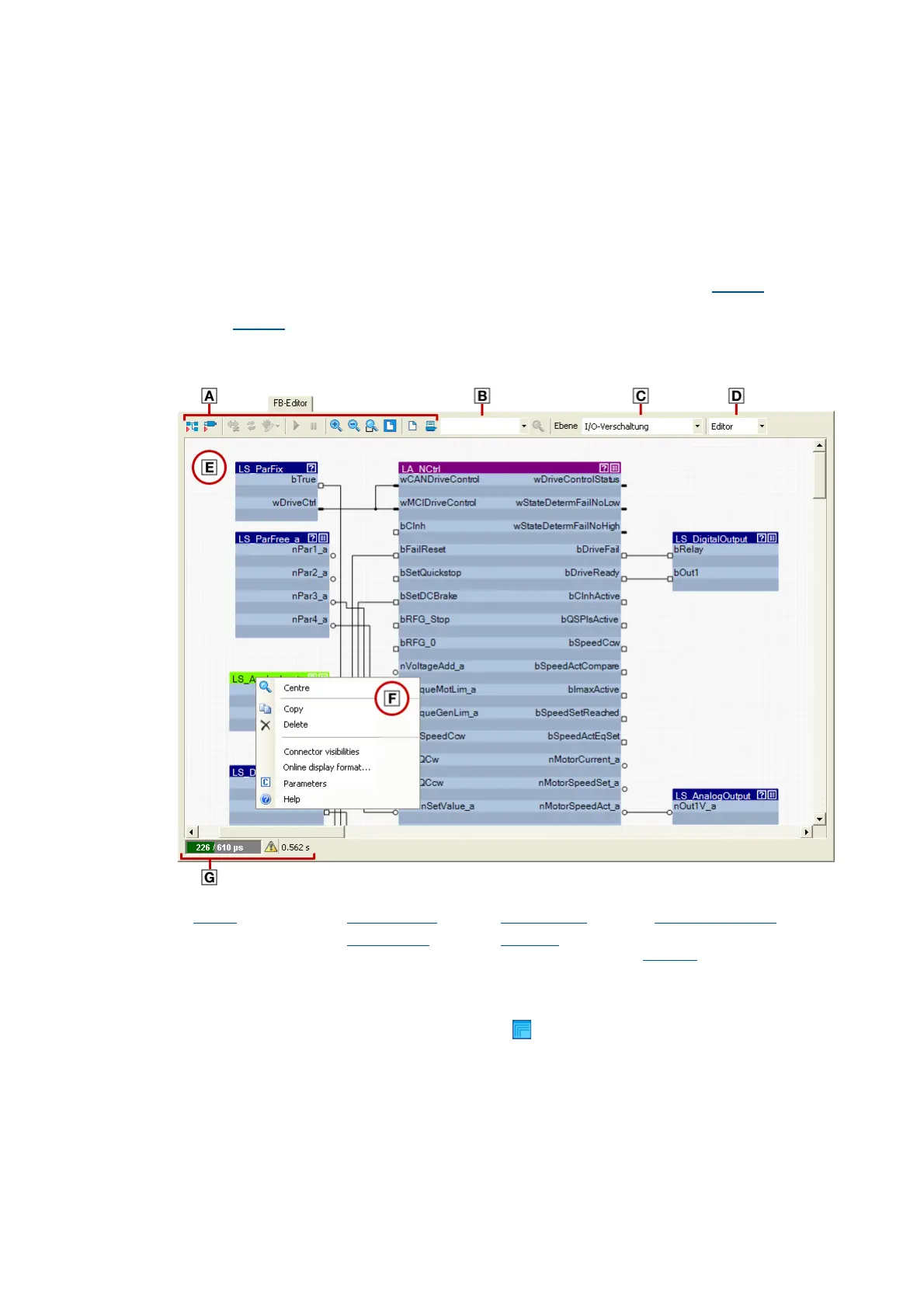

The user interface of the FB Editor includes the following control and function elements:
Tip!
Go to the »Engineer« toolbar and click the icon to hide the Project View and the Message
Window. This increases the Workspace available for the FB Editor. A renewed click on the
symbol shows the Project View and the Message Window again.
Toolbar Search function Plane selection Editor view/overview
Drawing area Context menu Status bar Not shown:
