4 Device control (DCTRL)
4.3 Automatic restart after mains connection/fault...
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
4.3.2 Auto-start option "Inhibit at Lenze setting"
This function extension is available from version 06.00.00!
The "Inhibit at Lenze setting" auto-start option configurable via bit 4 of C00142
prevents the
change to the "SwitchedOn
" status after the Lenze setting has been loaded and the controller is
enabled.
For a change to the "SwitchedOn
" status, the controller enable must first be deactivated after the
Lenze setting has been loaded. Only if the controller is enabled again afterwards, the status changes
to "OperationEnabled
":

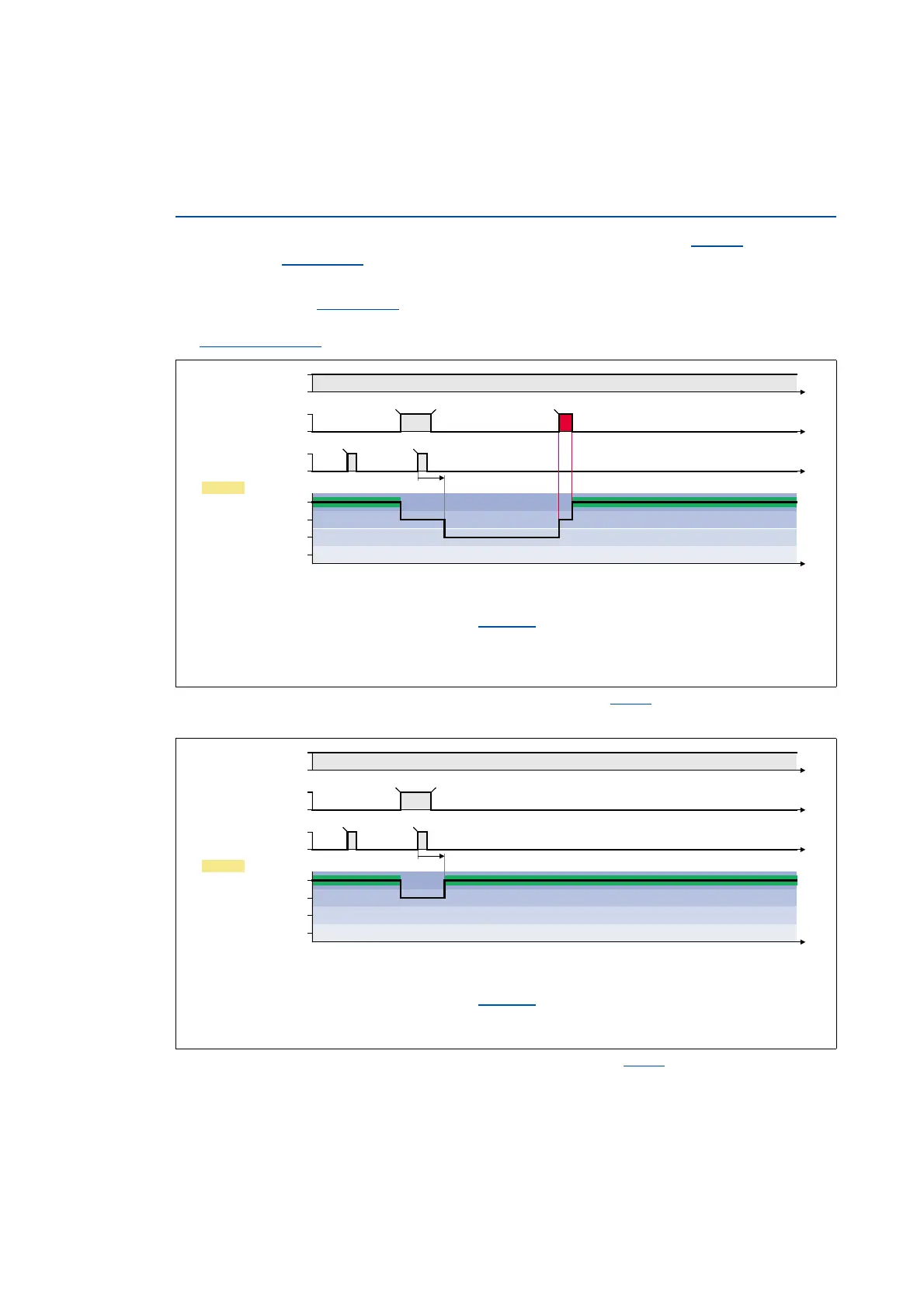

[4-1] Example 1: Behaviour with activated auto-start option "Inhibit at Lenze setting" (C00142: Bit 4 = "1")
[4-2] Example 2: Behaviour with deactivated auto-start option "Inhibit at Lenze setting" (C00142
: Bit 4 = "0")
Loading of the Lenze setting not possible since controller inhibit not set.
Controller inhibit via signal change by the user
Loading of the Lenze setting via device command C00002/1
= "1"
Controller enable via signal change by the user
Controller inhibit and subsequent controller enable via signal change by the user
t
load
= time required for loading the Lenze setting
,QLW
5HDG\7R6ZLWFK2Q
6ZLWFKHG2Q
2SHUDWLRQ(QDEOHG
&
/$B1&WUOE&,QK
W
W
5)5
W
&
W
n
r
o
p
W
ORDG
q
Loading of the Lenze setting not possible since controller inhibit not set.
Controller inhibit via signal change by the user
Loading of the Lenze setting via device command C00002/1
= "1"
Controller enable via signal change by the user
t
load
= time required for loading the Lenze setting
,QLW
5HDG\7R6ZLWFK2Q
6ZLWFKHG2Q
2SHUDWLRQ(QDEOHG
&
/$B1&WUOE&,QK
W
W
5)5
W
&
W
W
n
o
p
ORDG
q
