4 Device control (DCTRL)
4.3 Automatic restart after mains connection/fault...
124
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

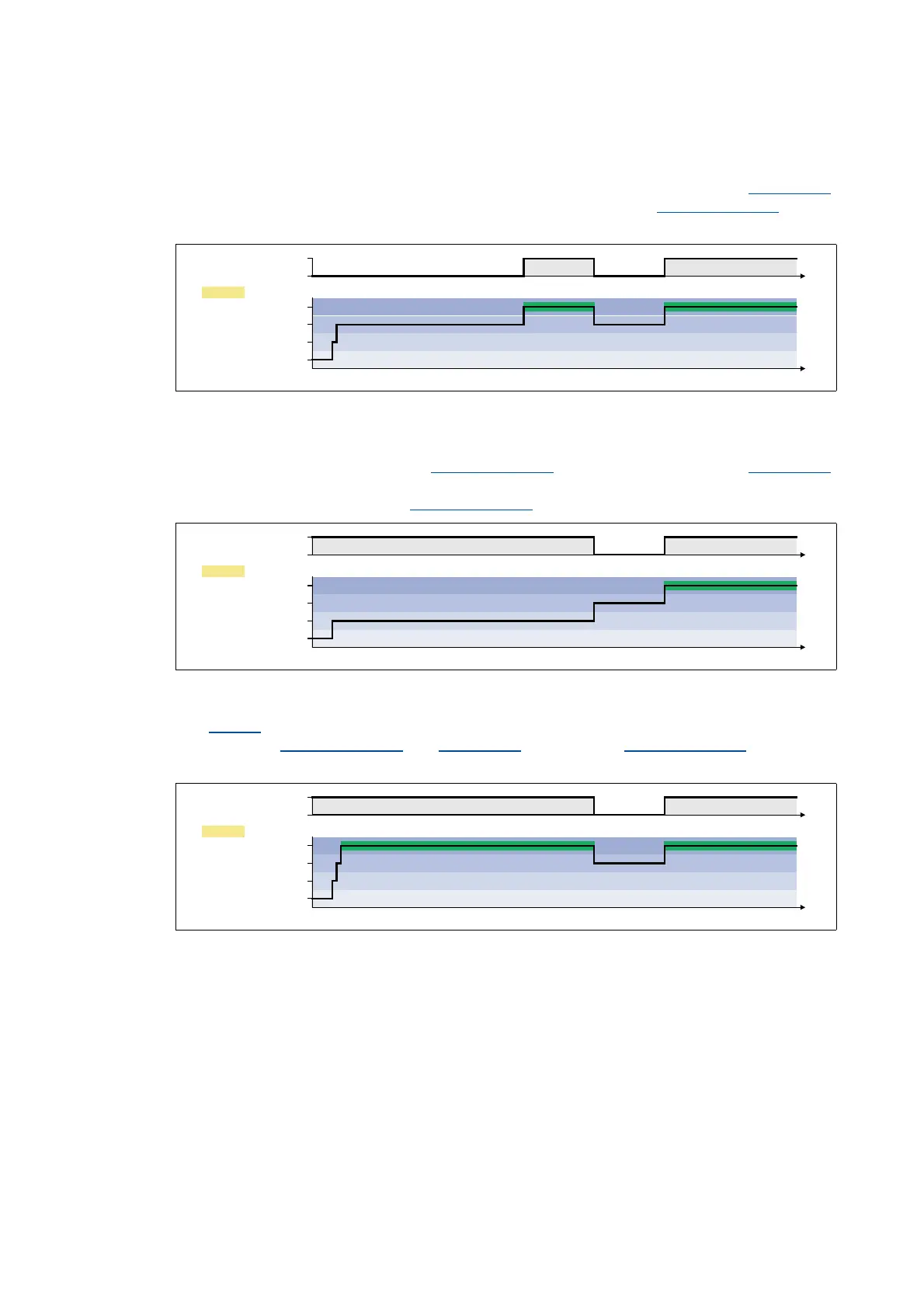

Case 1: No controller enable at mains connection
If the controller is not enabled at mains connection, the inverter remains in the "SwitchedOn
"
status. Only with the controller enable, the device changes to the "OperationEnabled
" status,
independent of the set auto-start option:
Case 2: Controller enable at mains connection and "Inhibit at power-on" activated
If the controller is enabled at mains connection and the auto-start option "Inhibit at power-on" is
activated, the inverter remains in the "ReadyToSwitchOn
" status. For changing to the "SwitchedOn"
status, the controller enable must first be deactivated. Only when the controller is enabled again
afterwards, the status changes to "OperationEnabled
":
Case 3: Controller enable at mains connection and "Inhibit at power-on" deactivated
If in C00142
the autostart option "Inhibit at power-on" is deactivated (bit 0 = 0), the status first
changes from "ReadyToSwitchOn
" to "SwitchedOn" and then to "OperationEnabled" after mains
connection with an enabled controller:
