Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 77
3 Commissioning
3.8 Commissioning of the "Table positioning" technology application
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.8.4.4 Enter one or more profiles

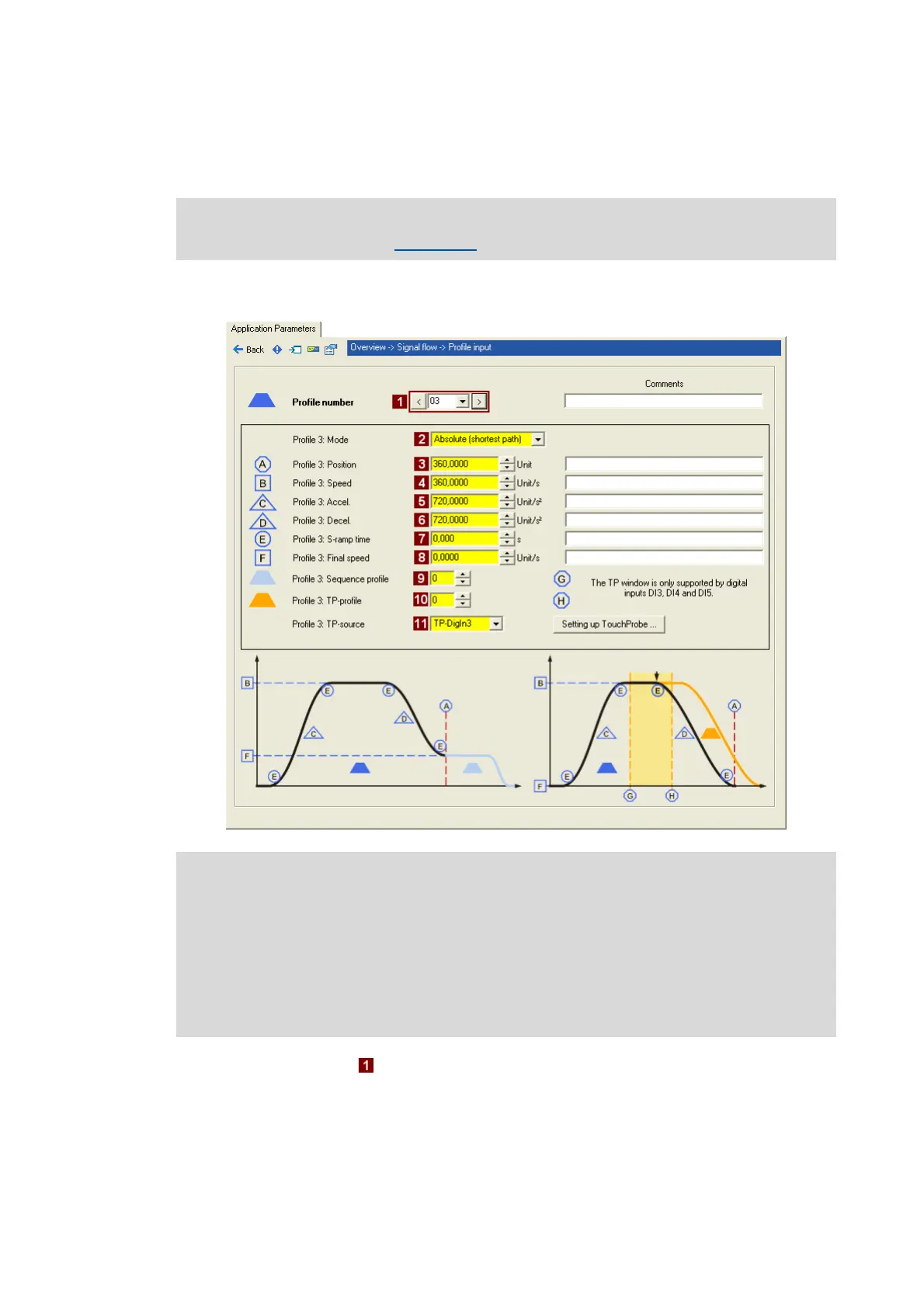

1. Click the Profile entry button (in the "MotionControlKernel" block) in the signal flow to change
to the Overview Signal flow Profile entry dialog level:
2. Select number 3 in the Profile number list field to enter a positioning profile which can be
selected via digital inputs DI5 and DI6.
You can find detailed information on entering profiles in the chapter entitled "Basic drive
functions", subchapter "Profile entry
". ( 586)
Note!
In the Lenze setting, the profiles are assigned to certain operating modes, i.e. the
selection of a profile also results in a change of operating mode:
If profile 0 is selected: Activation of "Speed follower" operating mode
If profile 1 is selected: Activation of "Homing" operating mode
If profile 2 is selected: Activation of "Manual jog" operating mode
If profile 3 ... 15 is selected: Activation of "Positioning" operating mode
