16 Working with the FB Editor
16.4 Reconfiguring the predefined interconnection
1224
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
16.4.4 Creating/deleting connections
After adding objects and arranging them in a reasonable manner within the drawing area, you can
create the connections between the available objects which are required for the desired function.
A connection always has a direction and therefore always has a source and a target.

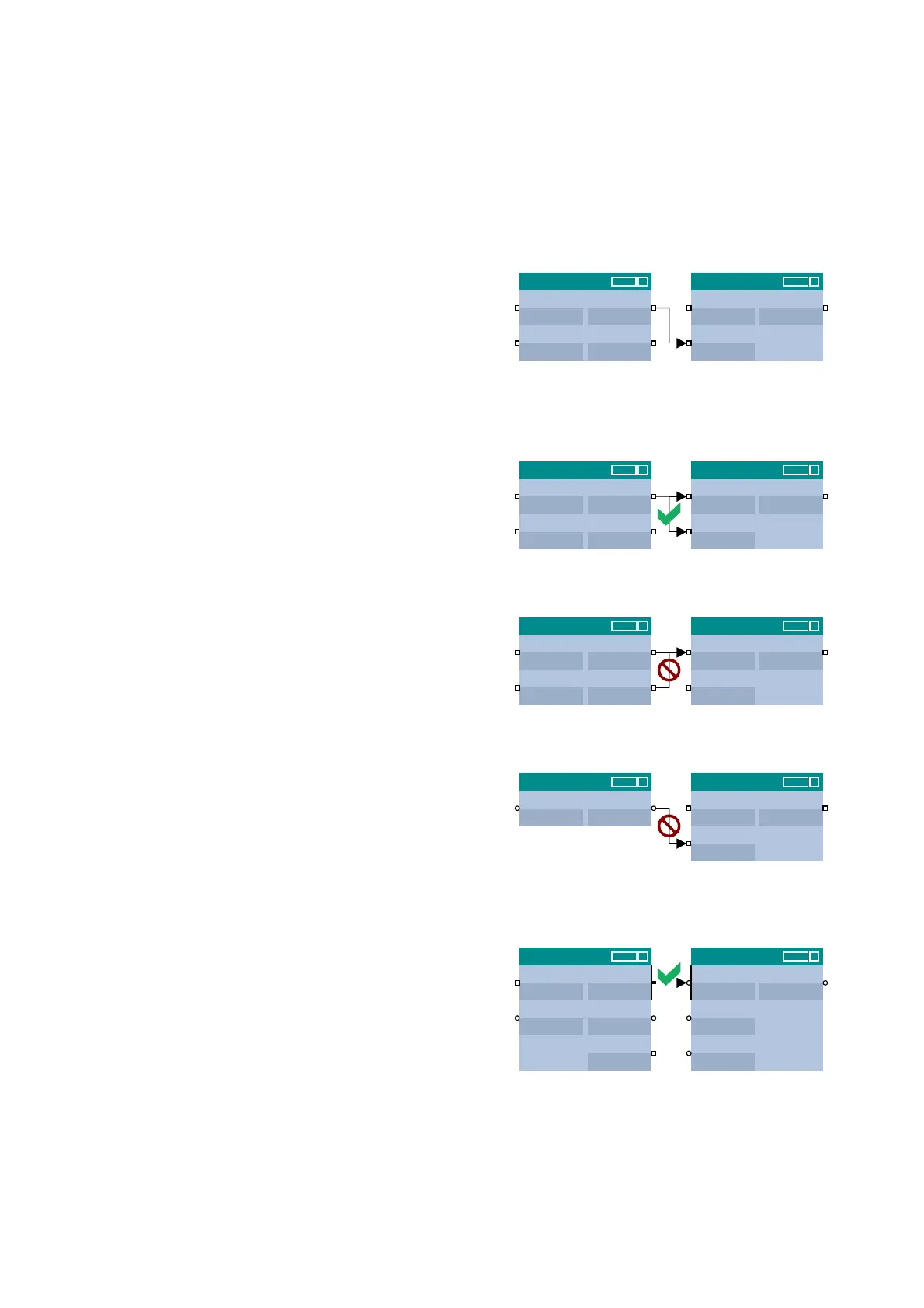

Permissible/impermissible connections
Several connections can lead from one output.
However, maximally one connection may end in an input.
Only inputs/outputs of the same signal type can be connected.
From the »Engineer« V2.12 "Analog/scaled" (_a) and "Miscellaneous (WORD)" signal types can also
be interconnected.
From the »Engineer« V2.13 "Analog/scaled" (_a) and "Angular velocity" (_v) signal types can also be
interconnected.
An output represents a possible source in
the interconnection.
An input represents a possible target in the
interconnection.
•Therefore it is always possible to start a
new connection from an output.
Therefore it is only possible to start a new
connection from an input if there is no
connection already ending in this input.
Thus, a connection between different port
symbol cannot be established.
The implicit type conversion is indicated by
a vertical black bar at the port symbol.
