17 Function library
17.1 Function blocks | L_AddSub_1
1249
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

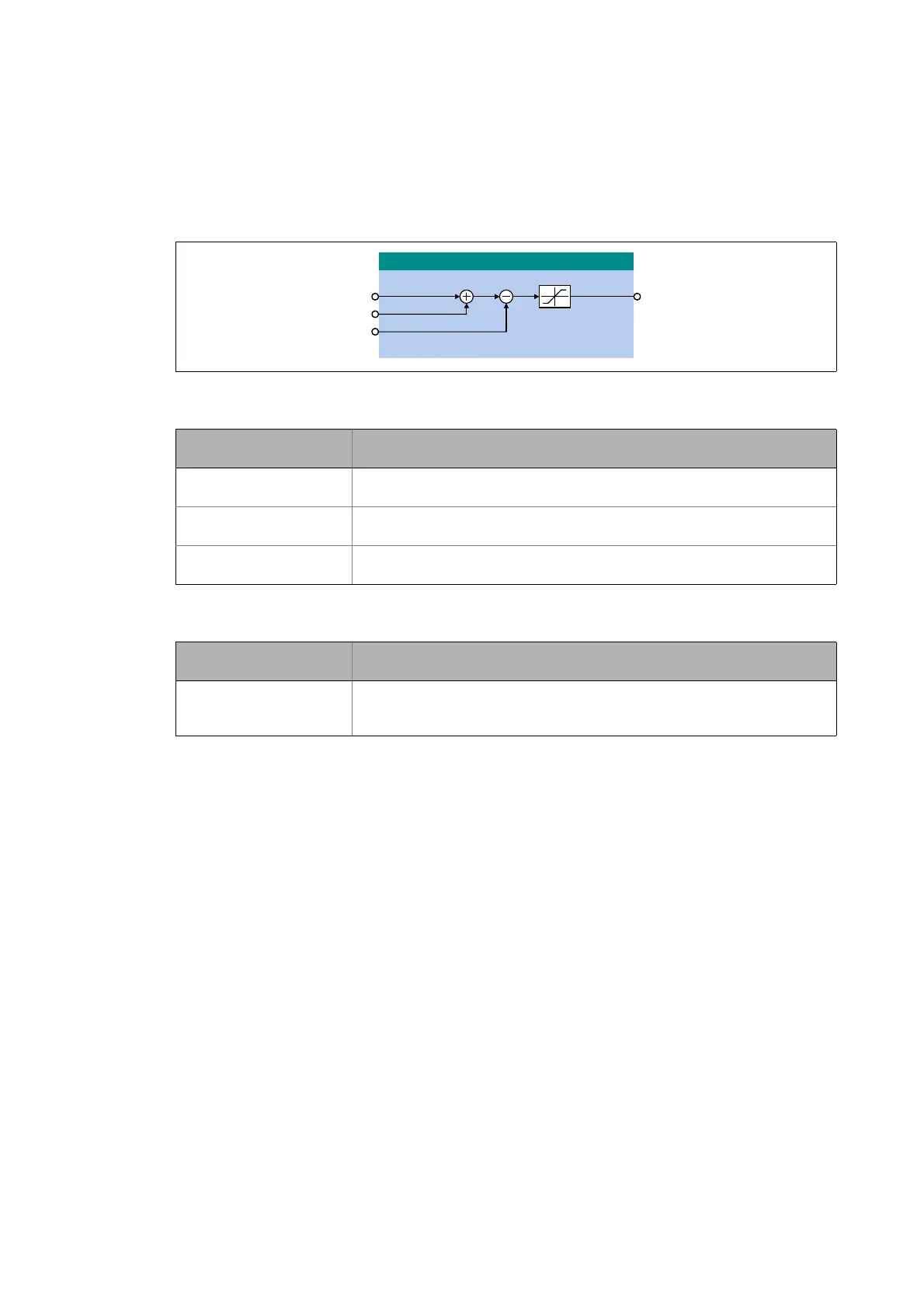

17.1.3 L_AddSub_1
This FB has two adding inputs and one subtracting input.
The value provided at the nOut_a output is internally limited to ±32767.
Inputs
Outputs
Designator
Data type
Information/possible settings
nIn1_a
INT
Input signal 1
This input is added
nIn2_a
INT
Input signal 2
This input is added
nIn3_a
INT
Input signal 3
This input is subtracted
Designator
Data type
Value/meaning
nOut_a
INT
Output signal
nOut_a = nIn1_a + nIn2_a - nIn3_a
Internal limitation to ±32767 (±199.99 %)
