16.4.4.2 Creating a connection using port identifiers

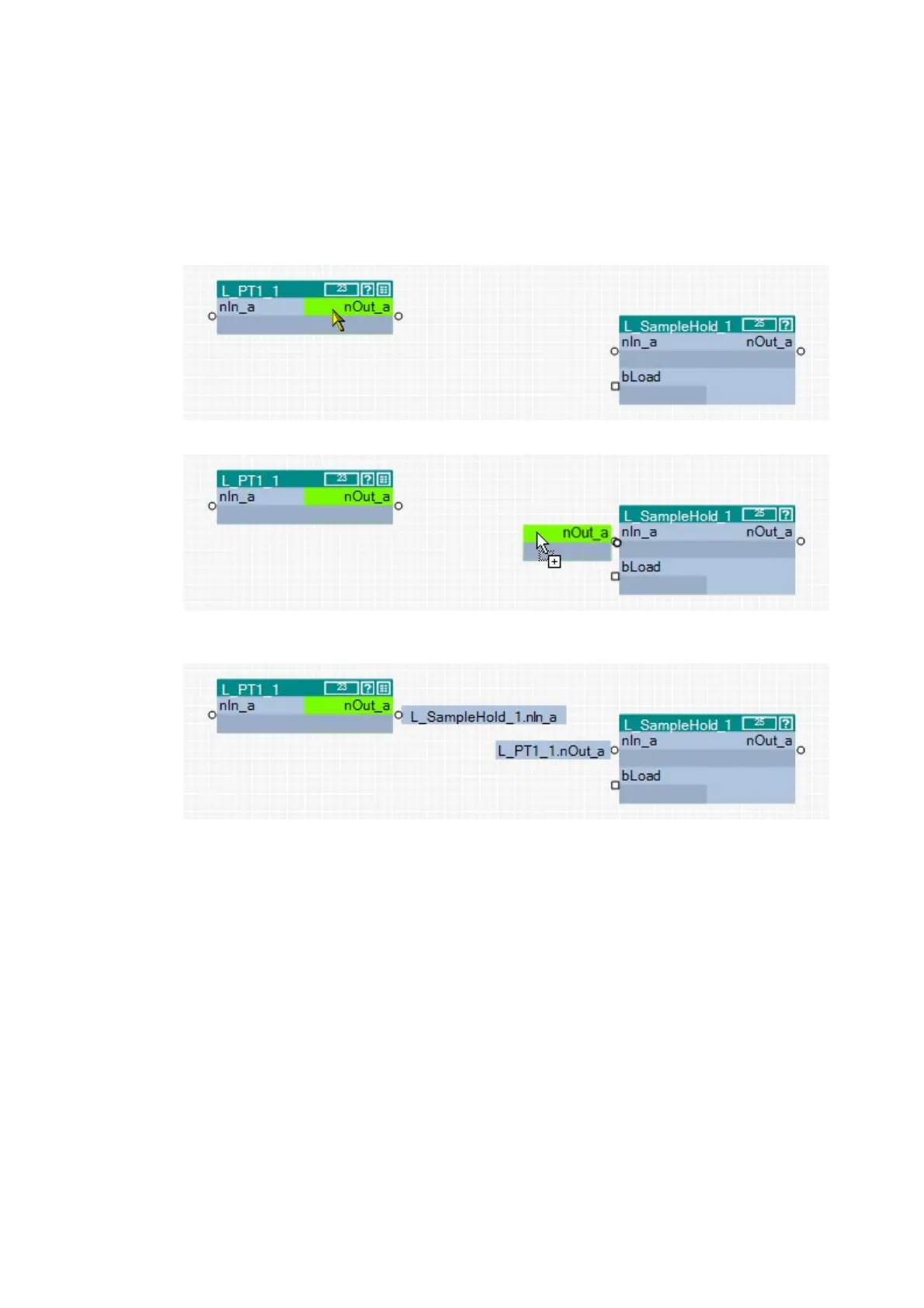

 How to create a connection with port identifiers:
1. Click the port identifier.
• The selected port is highlighted in light green:
2. Drag the port segment to the required port while keeping the left mouse button pressed:
After releasing the mouse button, the connection via port identifiers (flags) is created. The
corresponding port identifier consists of the block name and the name of the input/output:
 Tip!
The command Show as line in the context menu of a flag serves to change the
representation of the connection at any time.
