16 Working with the FB Editor
16.4 Reconfiguring the predefined interconnection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Connection types
Connections can either be created by means of connection lines or port identifiers ("flags")

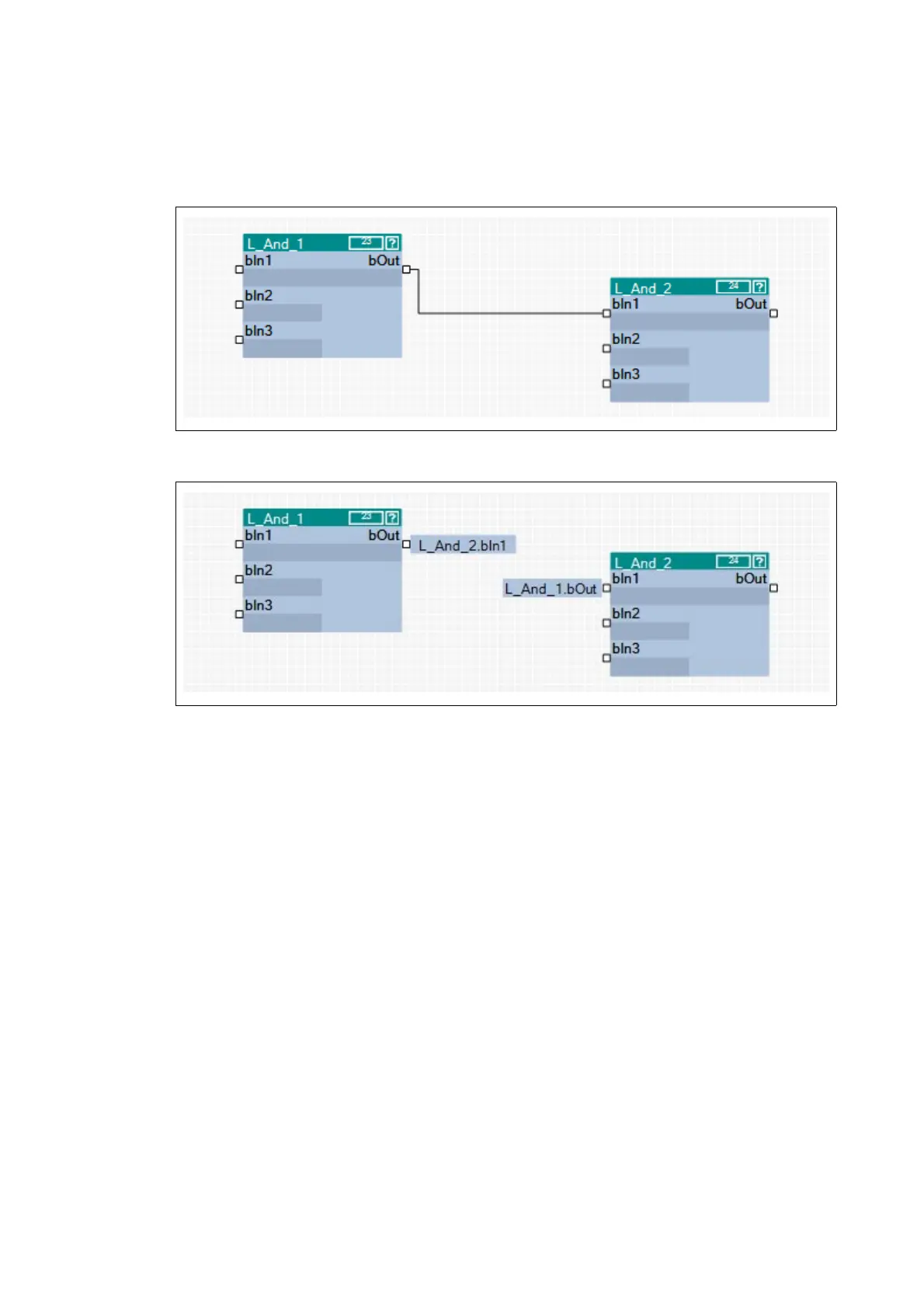

[16-8] Example 1: Connection via connection line
[16-9] Example 2: Connection via flags
 Tip!
The commands Show as flag or Show as line in the context menu of a connection serve to
change the representation of the connection at any time.
When an output is connected to several inputs via flags, three points are displayed ("...") at
the output instead of the concrete input identifier. The context menu of the port symbol
shows all inputs which are connected to the output.
