5. Optional
: Change preset text alignment.
• For this purpose, click the right Change... button to open the Text alignment dialog box
to select another text alignment.
6. Press OK to close the Properties dialog box and insert the comment.

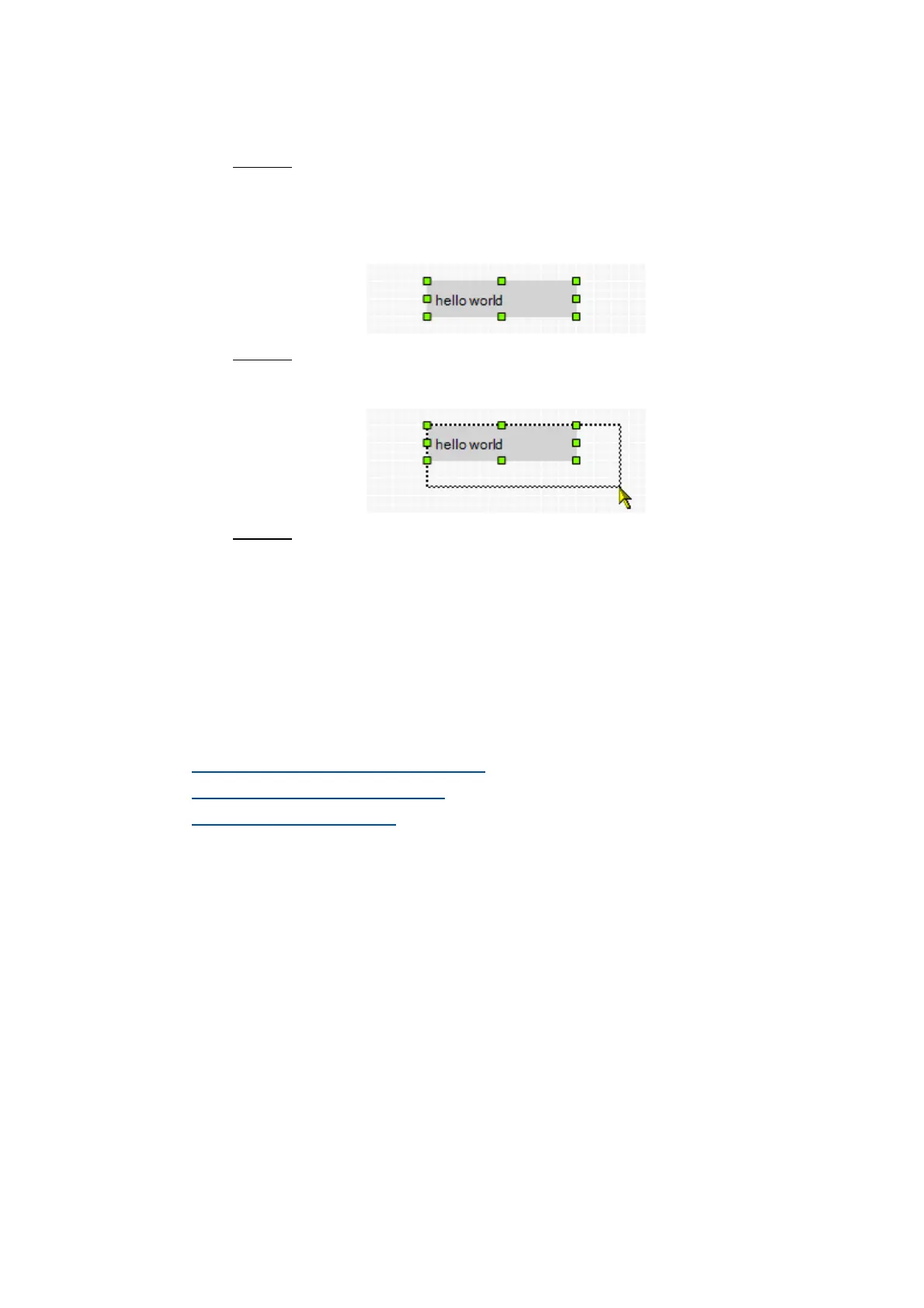

• After being inserted, the corner points of the comment are shown:
7. Optional
: Change size of the comment.
• For this purpose click one of the corner points with the left mouse button and enlarge
the comment to the required size with the mouse button pressed.
8. Optional
: Drag comment.
• For this purpose click the comment with the left mouse button and move the comment
to the required position with the mouse button pressed.
Tip!
The Properties dialog box for a comment already available can be opened by double-clicking
the comment.
Related topics
Deleting objects that are no longer required
( 1221)
Arranging objects in the drawing area
( 1223)
Creating/deleting connections
( 1224)
