16 Working with the FB Editor
16.4 Reconfiguring the predefined interconnection
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

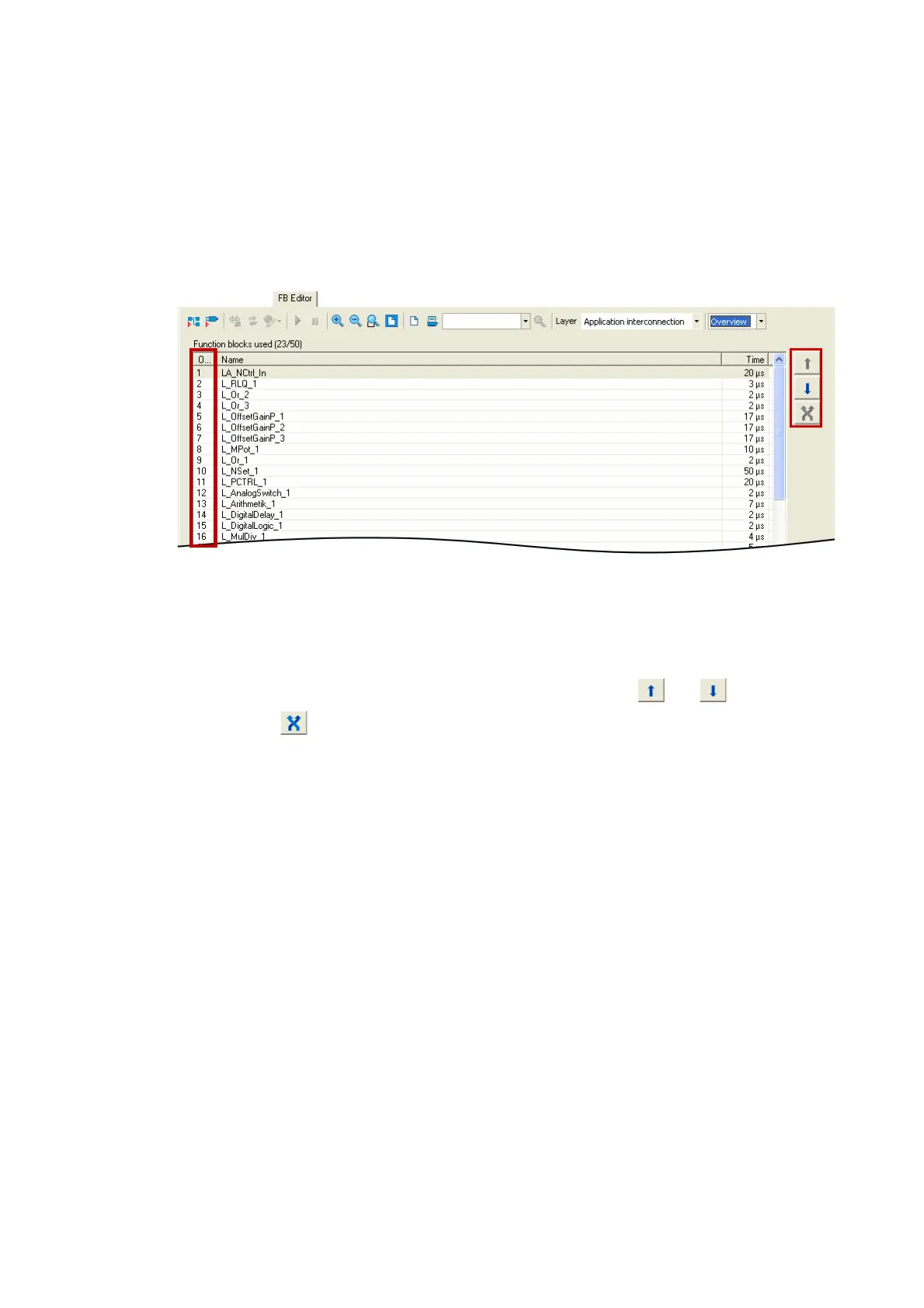

 How to change the processing order manually:
1. Use the list field at the top right to change from the Editor to the overview.
• The overview displays all function blocks of the interconnection in the order of their
processing
• In the first "Order" column the order index of each function block is listed.
2. Unless already selected, select the entry "Manual selection" in the Optimisation... list field.
3. Select the function block which is to receive a different position within the processing
order.
• If you click further function blocks while pressing <Ctrl> they are added to an already
existing selection (multi-selection).
•The <Shift> key serves to select a related area of function blocks.
4. Move the function block(s) to the desired position using the and buttons.
• The button serves to exchange two selected function blocks with regard to their
order.
5. Repeat steps 3 and 4 until the required processing order has been established.
