16 Working with the FB Editor
16.7 Comparing interconnections
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

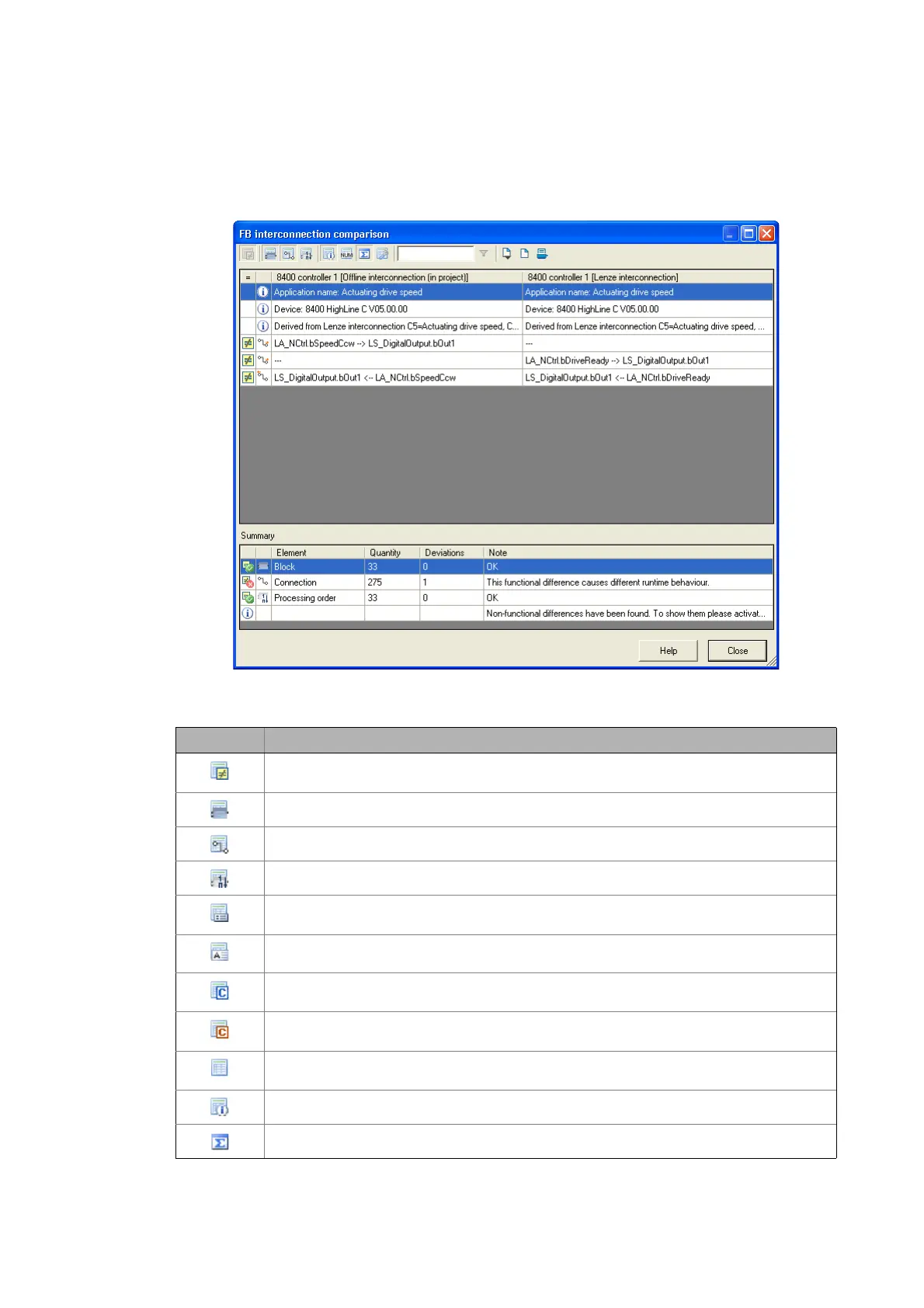

Representation of the comparison result
The comparison result is displayed in the form of a list in the FB interconnection comparison dialog
box:
• The symbols in the Toolbar serve to show or hide different details and export and print the
shown list.
Symbol Function
Only show differences
• Button can only be activated in expert mode.
Show blocks
Show connections
Show processing sequence
Show properties for blocks and connections
• Function is only available in expert mode.
Show comments
• Function is only available in expert mode.
Show block parameters
• Function is only available in expert mode.
Show application parameters
• Function is only available in expert mode.
Show all
• Function is only available in expert mode.
Show general information
Show summary
