Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 1276
17 Function library
17.1 Function blocks | L_Compare_1
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
17.1.23.3 Function 3: nIn1 < nIn2
This function serves, for instance, to implement the comparison "actual speed is lower than a limit
value" (n
act
< n
x
) for one direction of rotation.

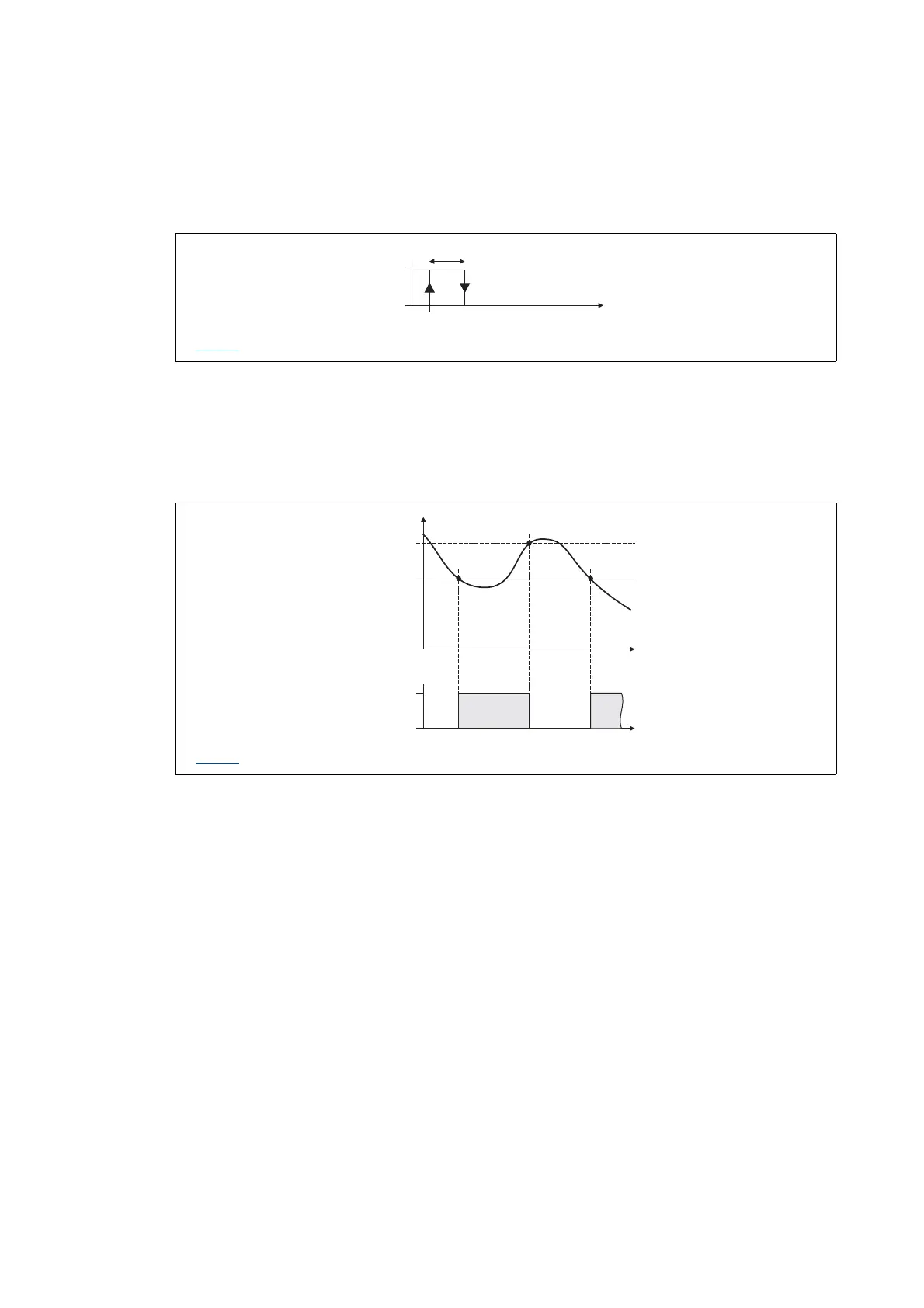

[17-10] Function 3: Switching performance
Functional sequence
1. If the value at nIn1_a falls below the value at nIn2_a, bOut changes from FALSE to TRUE.
2. Only if the signal at nIn1_a exceeds the value of nIn2_a - hysteresis again, bOut changes back
from TRUE to FALSE.
[17-11] Function 3: Example
 C00681: Hysteresis
TRUE
FALSE
bOut
nIn2_a
nIn1_a

 C00681: Hysteresis
nIn1_a
nIn2_a
TRUE
FALSE
bOut
t
t

