5 Motor control (MCTRL)
5.1 Motor selection/Motor data
140
Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Accepting the default values of the motor

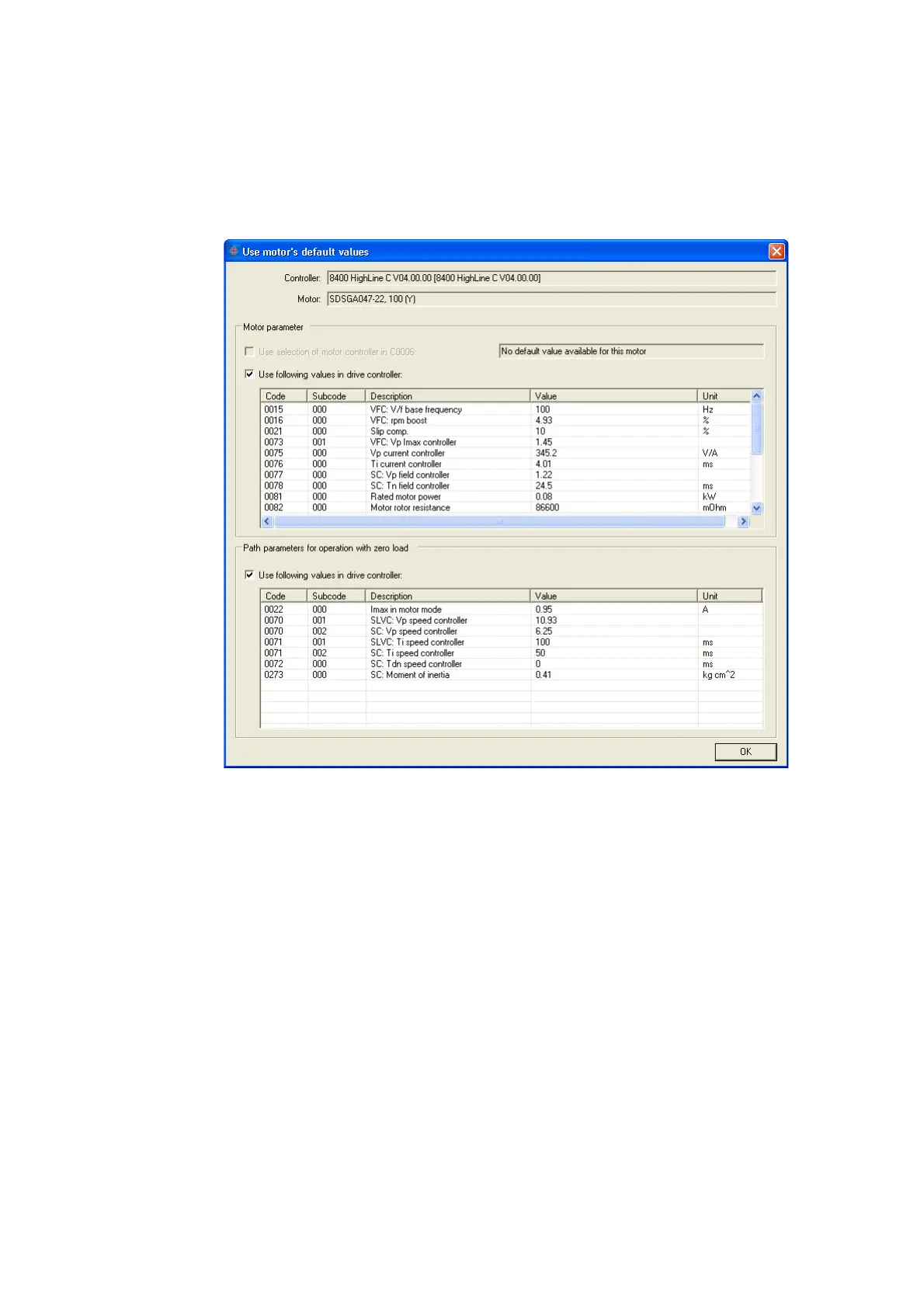

If a motor is selected from the motor catalogue at a later time, the Use motor's default values dialog
box is displayed afterwards which includes all motor data of the selected motor. Please select here
which of the default values are to be copied to the inverter:
• The listed motor parameters are already optimally preset for the selected Lenze motor. An
adaptation is not required.
• The "plant parameter" term comprises all parameters that result from the combination of
motor and load. These characterise the transfer behaviour of the entire controlled system.
• The plant parameters depend on the application in which the inverter and motor are used.
• When a Lenze motor is selected in the »Engineer«, plant parameters are suggested for this
motor for a load-free operation.
Tip!
If a third party manufacturer's motor is used, select a Lenze motor from the motor
catalogue first which is similar in terms of current, voltage and speed rating. Adapt the
preselected motor data exactly to the real motor afterwards.
