Lenze · 8400 HighLine · Reference manual · DMS 12.0 EN · 06/2017 · TD23 353
6 I/O terminals
6.3 Analog terminals
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
 Proceed as follows to open the dialog for parameterising the characteristic:
1. Go to the Terminal assignment tab and select the "Analog terminals" entry in the Control
connections list field.

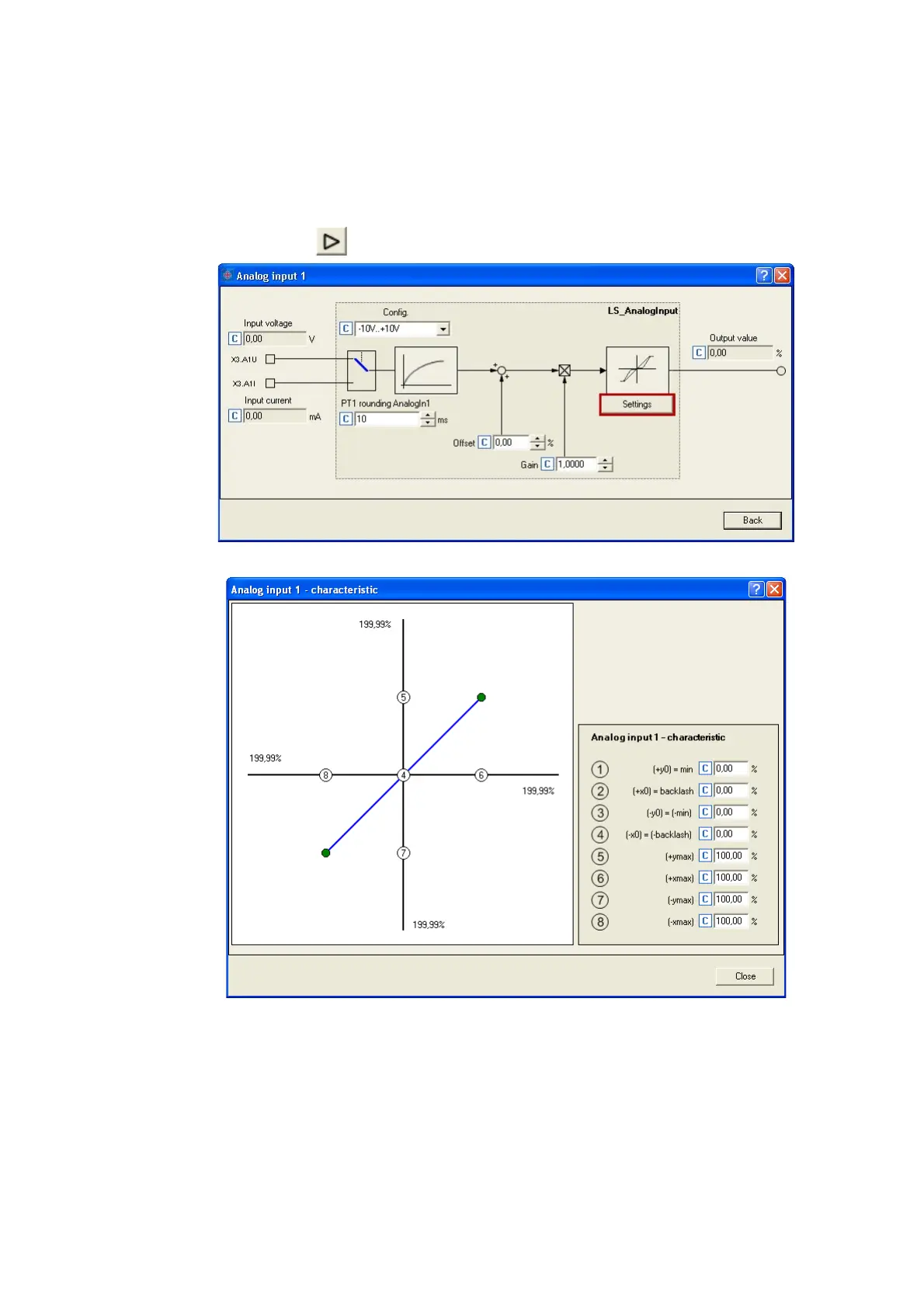

2. Click on the button for the analog input in order to open the Analog input dialog.
3. Click on the Settings button in order to open the Analog input - Characteristic dialog box:
