6 I/O terminals
6.6 User-defined terminal assignment
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
Possibility 3: Change terminal assignment with the FB editor
Procedure:
1. Go to the FB Editor tab.

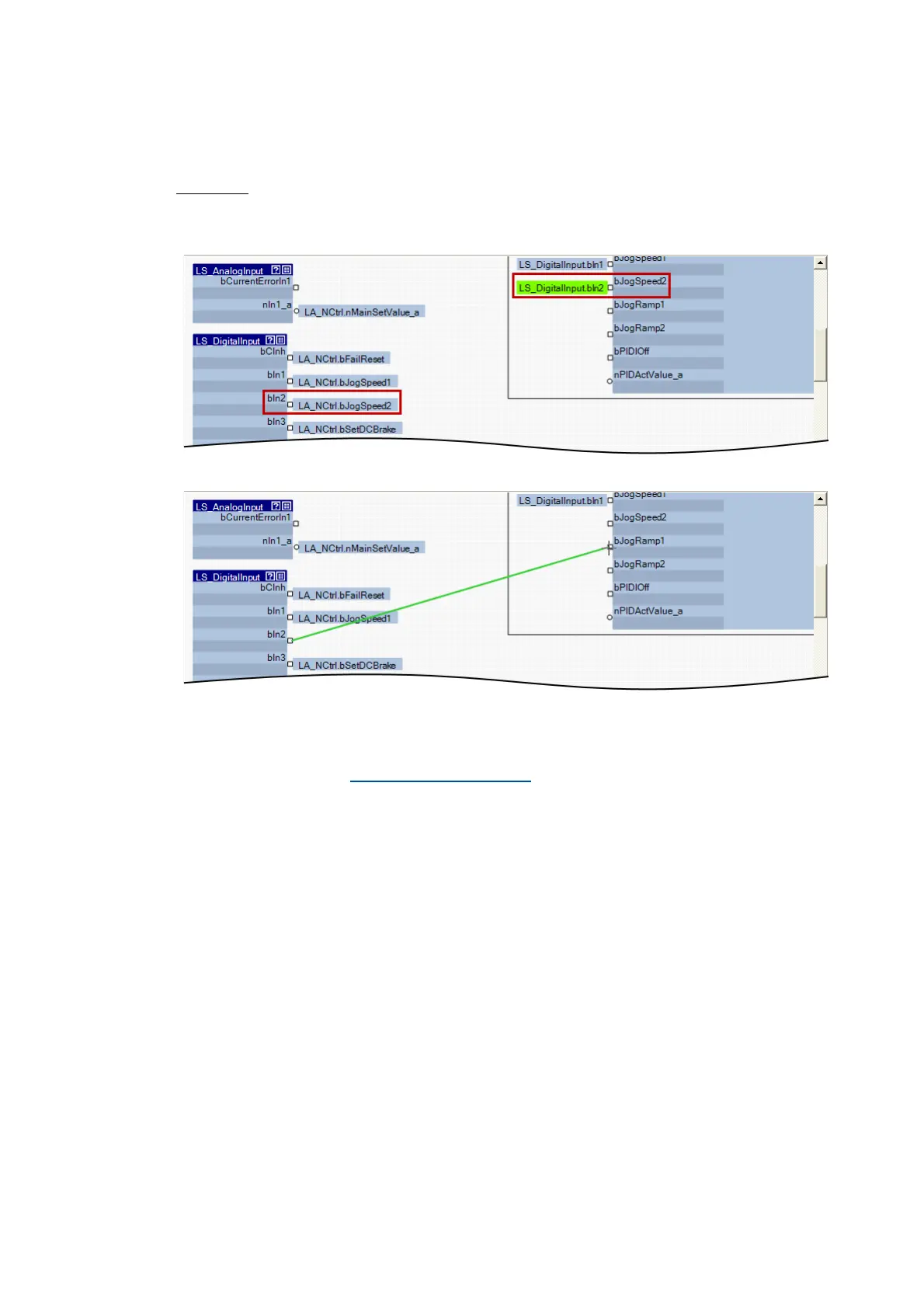

2. Delete the existing interconnection from LS_DigitalInput.bIn2 to LA_NCtrl.bJogSpeed2:
3. Establish a new interconnection from LS_DigitalInput.bIn2 to LA_NCtrl.bJogRamp1:
 Tip!
You can find detailed information on how to use the FB editor of the »Engineer« in the main
chapter entitled "Working with the FB Editor
". ( 1191)
