7 Technology applications
7.4 TA "Table positioning"
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
[7-16] "GeneralPurpose" functions (continuation)
Free inputs and outputs
These inputs can be freely interconnected in the application level. They can be used to transfer
signals from the I/O level to the application level and vice versa.

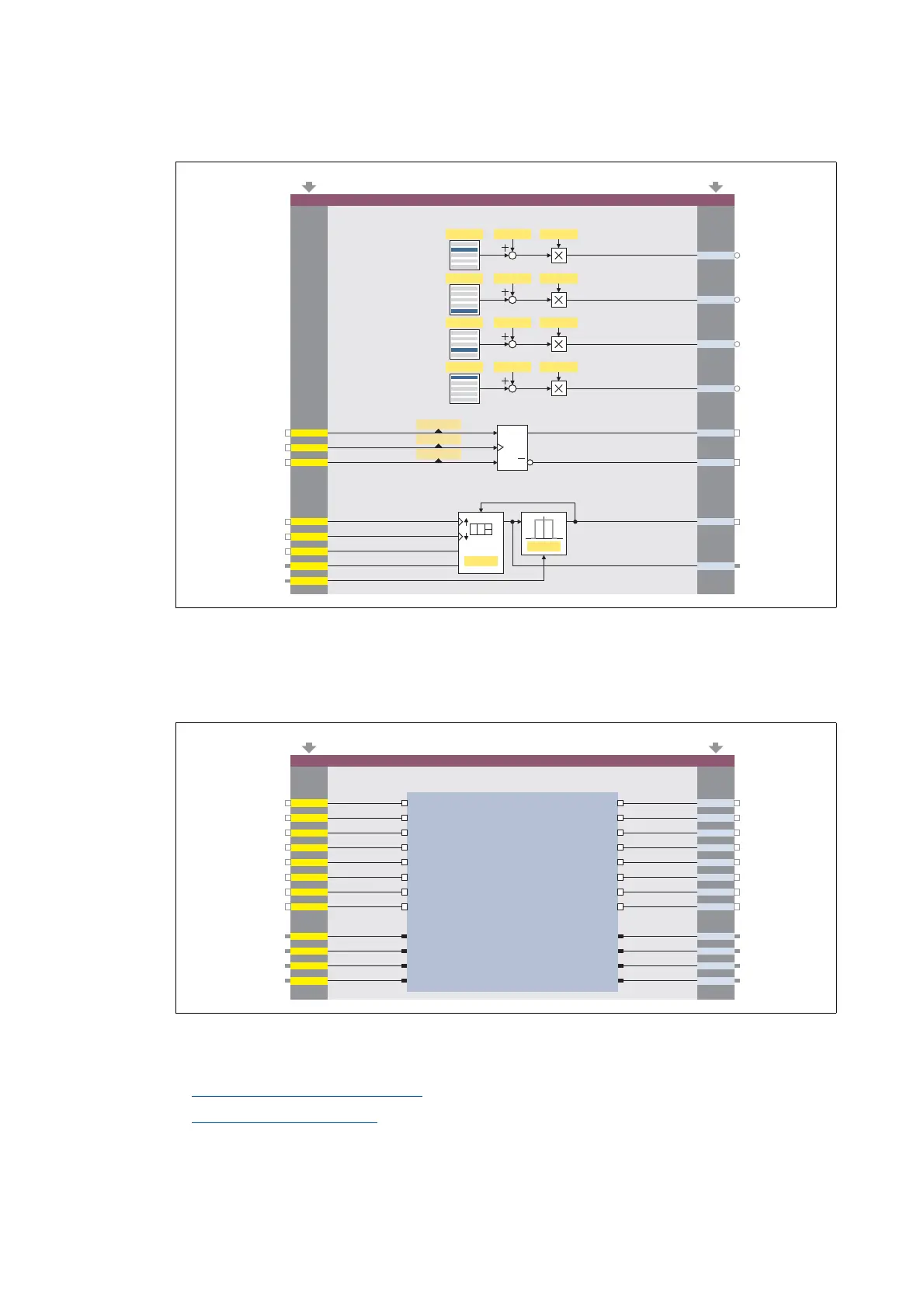

[7-17] Free inputs/outputs
Related topics:
User-defined terminal assignment
( 365)
"GeneralPurpose" functions
( 491)
bGPDFlipFlop_NegOut
bGPDFlipFlopOutbGPDFlipFlop_InD
bGPDFlipFlop_InClk
bGPDFlipFlop_InClr
C1
Q
Q
1D
R
C00833/4
C00833/5
C00833/6
LA_NCtrl
Configuration parameters Entry in select list
C711/35
C711/36
C711/37
1126
1127
GeneralPurpose (GP) functions
nGPSignalOut1_a
C00410/1 C00413/2C00413/1
nGPSignalOut2_a
C00410/2 C00413/4C00413/3
nGPSignalOut3_a
C00410/3 C00413/6C00413/5
nGPSignalOut4_a
C00410/4 C00413/8C00413/7
1117
1118
1119
1120
bGPCounter1Equal
bGPCounter1ClkDown
wGPCounter1LdVal
bGPCounter1Load
wGPCounter1CmpVal
bGPCounter1ClkUp
wGPCounter1Out
C01100
1
3
4
2
Function
C01101
C711/38
C711/39
C711/40
C710/19
C710/20
1128
1121
bFreeOut1
bFreeOut2
bFreeOut3
bFreeOut4
bFreeOut5
bFreeOut6
bFreeOut7
bFreeOut8
wFreeOut1
wFreeOut2
wFreeOut3
wFreeOut4
bFreeIn1
bFreeIn2
bFreeIn3
LA_TabPos
Configuration parameters Entry in select list
C711/49
C711/50
C711/51
1129
1130
1131
1132
1133
1134
1135
1136
1122
1123
1124
1125
Free In/Out
bFreeIn4
bFreeIn5
bFreeIn6
C711/52
C711/53
C711/54
bFreeIn7
bFreeIn8
C711/55
C711/56
wFreeIn1
wFreeIn2
C710/23
C710/24
wFreeIn3
wFreeIn4
C710/25
C710/26
Application
