8 Basic drive functions (MCK)
8.4 Basic settings
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
In example 2, the setpoint holdback in the master is set to 2 ms. This removes the offset between
master and slave. Only time differences are visible due to the telegram runtimes on the bus.

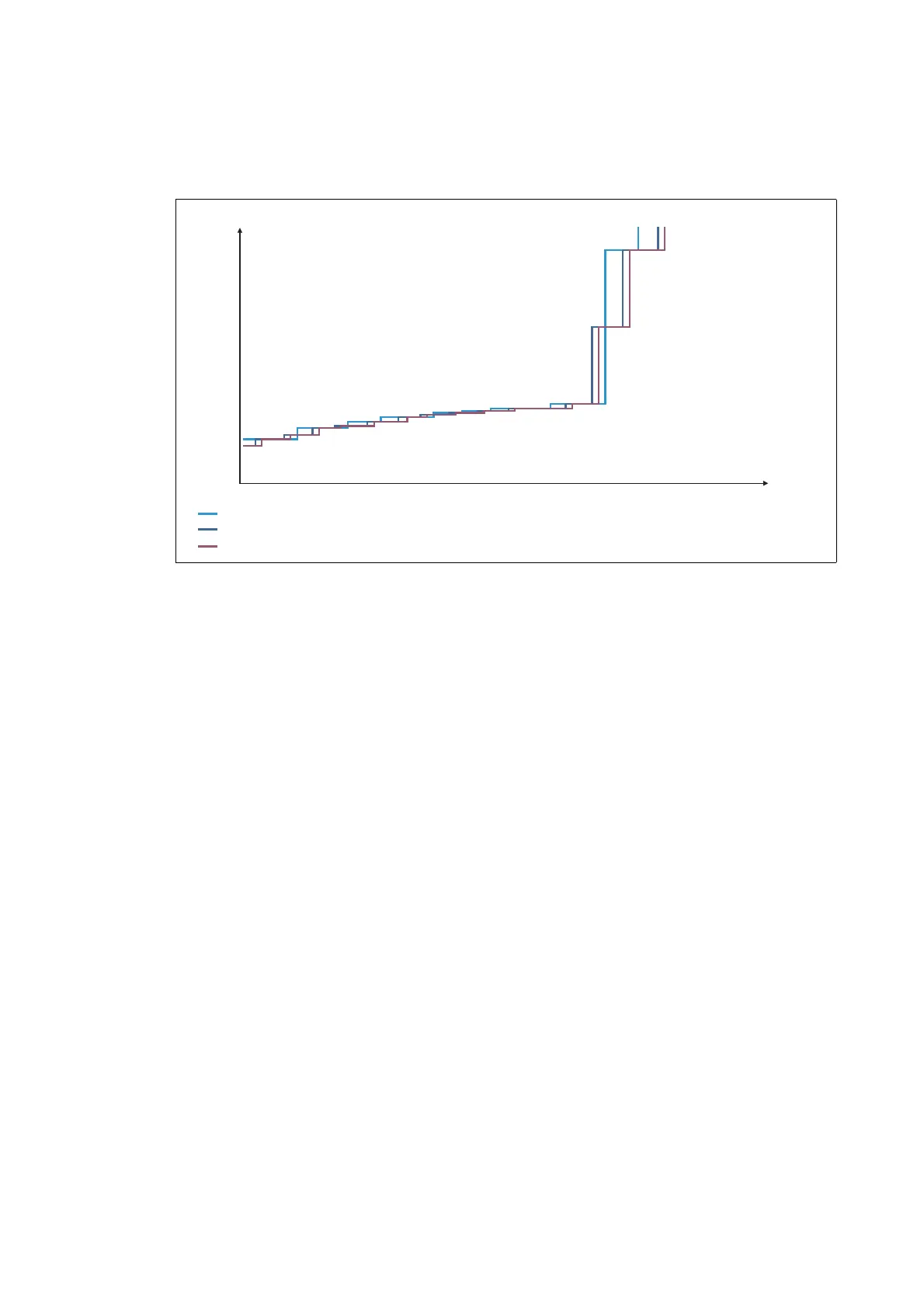

[8-23] Example 2: Runtime behaviour with setpoint holdback = 2 ms
 Setpoint at the output of the Motion Control Kernel (is transferred to the slaves via fieldbus)
 Effective setpoint of the motor control in the master
 Effective setpoint of the motor control in the slave
t


