8 Basic drive functions (MCK)
8.12 Holding brake control
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

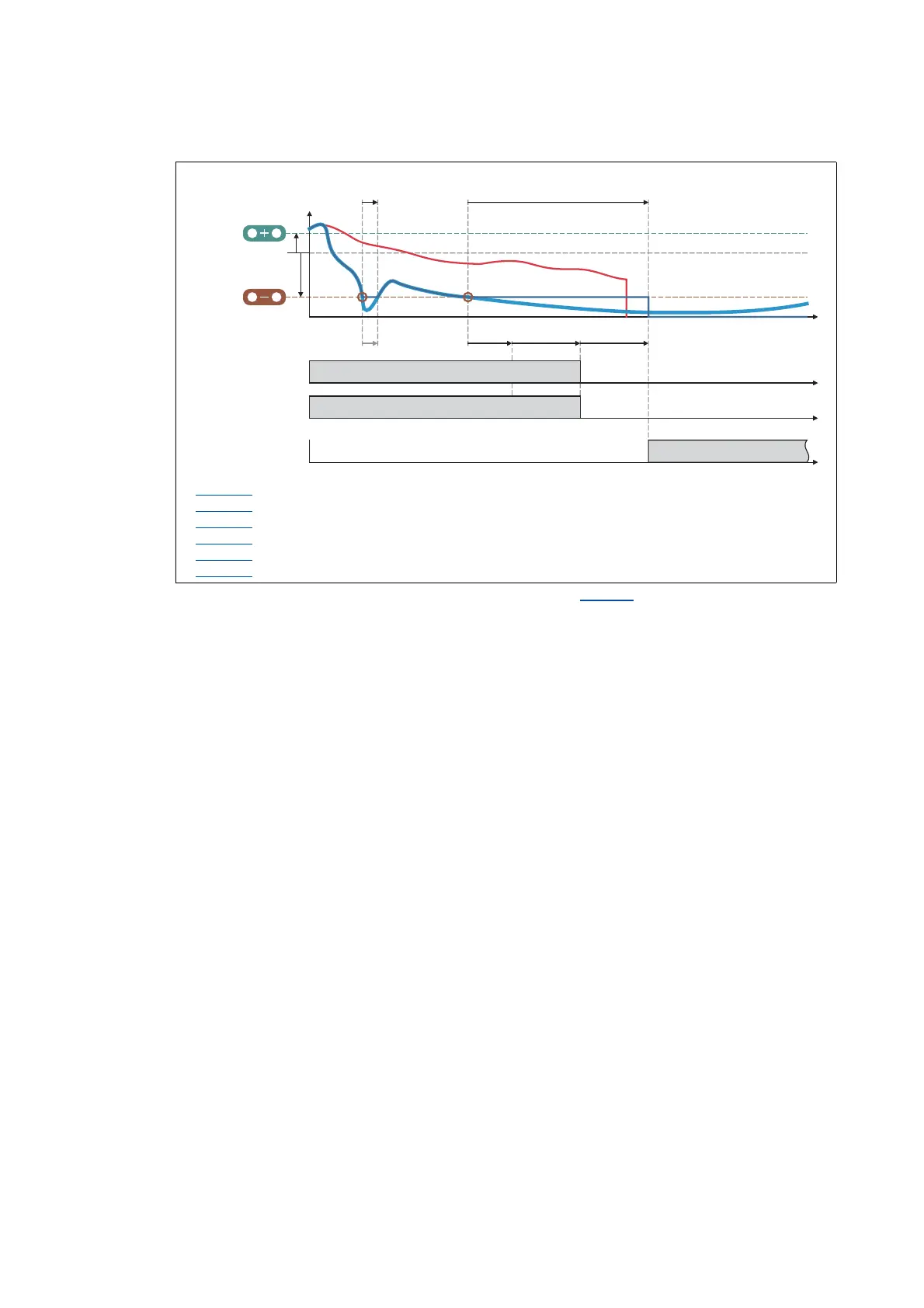

[8-43] Close holding brake in automatic mode with actual value monitoring time (C02593/1 >0s)
 Feedforward control
 C02581/1
: Switching threshold
 C02581/2
: Hysteresis for release
 C02581/3
: Hysteresis for application
 C02593/2
: Application delay
 C02593/1
: Actual value monitoring time
 C02589/1
: Application time

bMBrakeReleaseOut
0
0
bMBrakeReleased
CINH
t
t
t
t
nSpeedSetValue_a_

0
nMotorSpeedAct_a
nSpeedSetValue_a


