Driving
5.1 Before driving
5 - 8 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

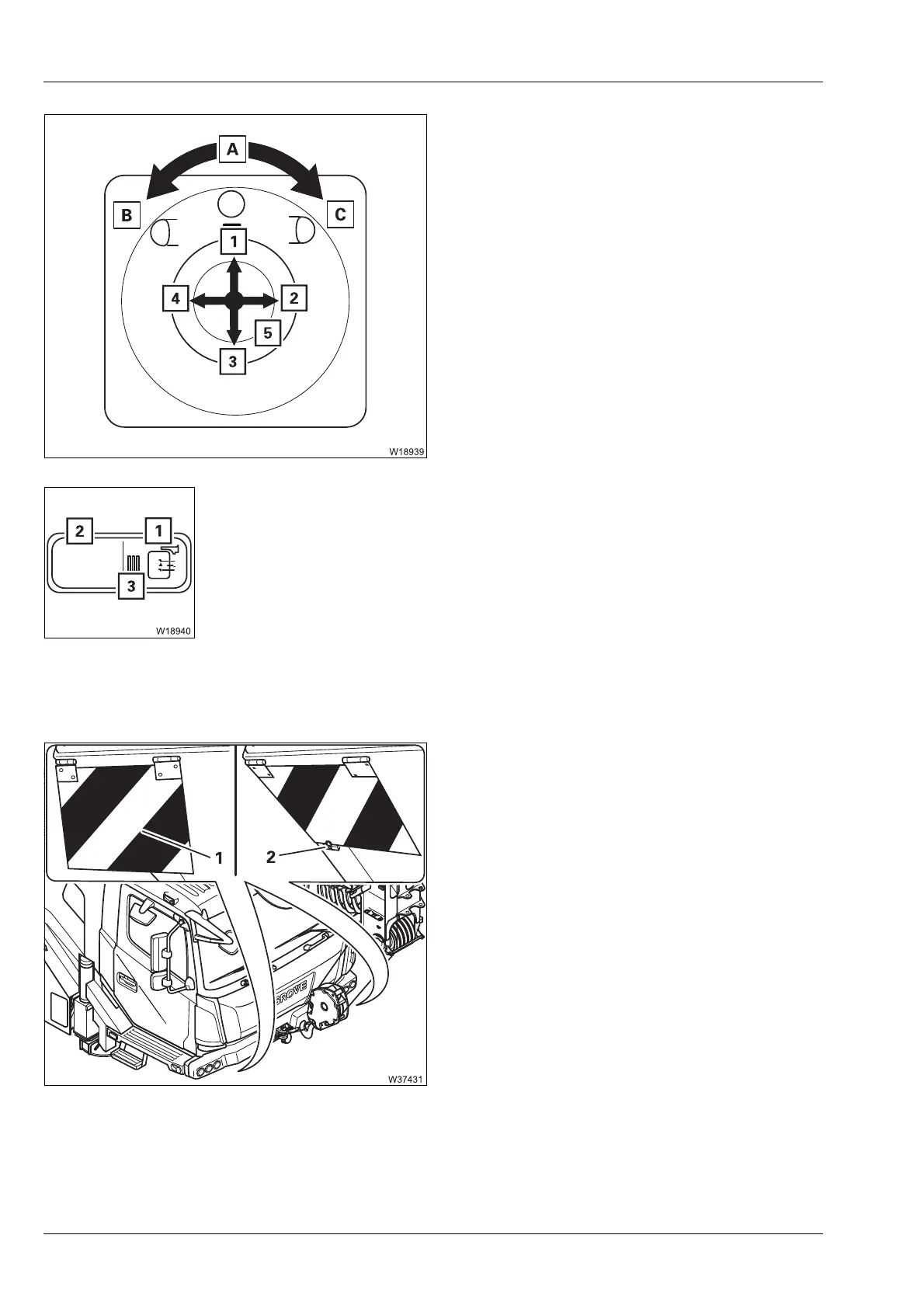

Electrical adjustment
• Turn the button to position
• Press the button (5) – the mirror moves.
Mirror heating
Warning plates for
vehicle width
Depending on the vehicle width and version, fold-up warning plates are fit-
ted below the driver's cab.
The warning plates (1) must be folded down to
indicate the vehicle width during on-road
driving.
For off-road driving, the warning plates can
be folded up and fastened with the locking
bar (2).
A Neutral position
B Mirror on the driver's side or
C Mirror on the passenger side.
1 Up
2 right
3 Down
4 left
1 Switch on: Press button once – lamp (3) turns on
2 Switch off: Press button once – lamp (3) turns off
