6.4 Installing/removing the outrigger beams
Operating manual 3 302 736 en 6 - 29
GMK4090
xx.xx.xxxx

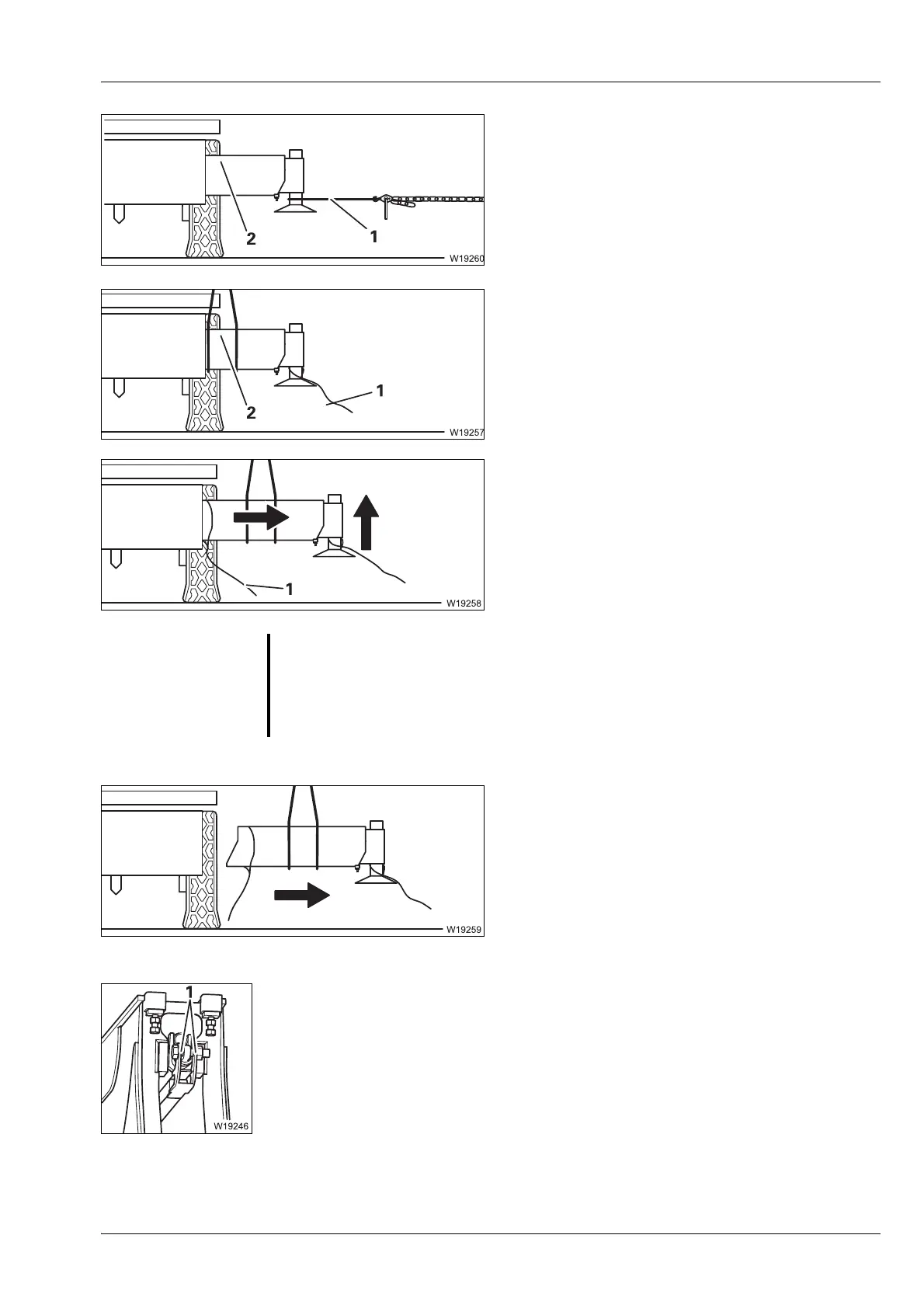

• Fasten the lifting gear (1) and a chain hoist.
• Pull the outrigger beam out so far that the
centre of gravity (2) is accessible;
à Centre
of gravity data
, p. 6 - 20.
• Using the auxiliary crane, sling the outrigger
beam in the centre of gravity (2).
• Remove the chain hoist and lifting gear.
Fasten a guide rope (1).
• Lift the outrigger beam slightly to ease the
load.
• Lift the outrigger beam almost completely
out of the outrigger box.
• Fasten another guide rope (1).
• Lift the outrigger beam out of the outrigger
box.
• Lift the outrigger beam onto a separate vehi-
cle;
à p. 6 - 32.
• Fasten the connecting elements to the connecting points (1) of the sup-
ports.
s
G
Risk of being crushed by the swinging outrigger beam!
Secure the outrigger beam with the guide ropes as it is lifted out of the out-
rigger box.
Keep a suitable distance to avoid injuring yourself or others on the swing-
ing outrigger beam.
