Driving modes
6.4 Installing/removing the outrigger beams
6 - 30 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

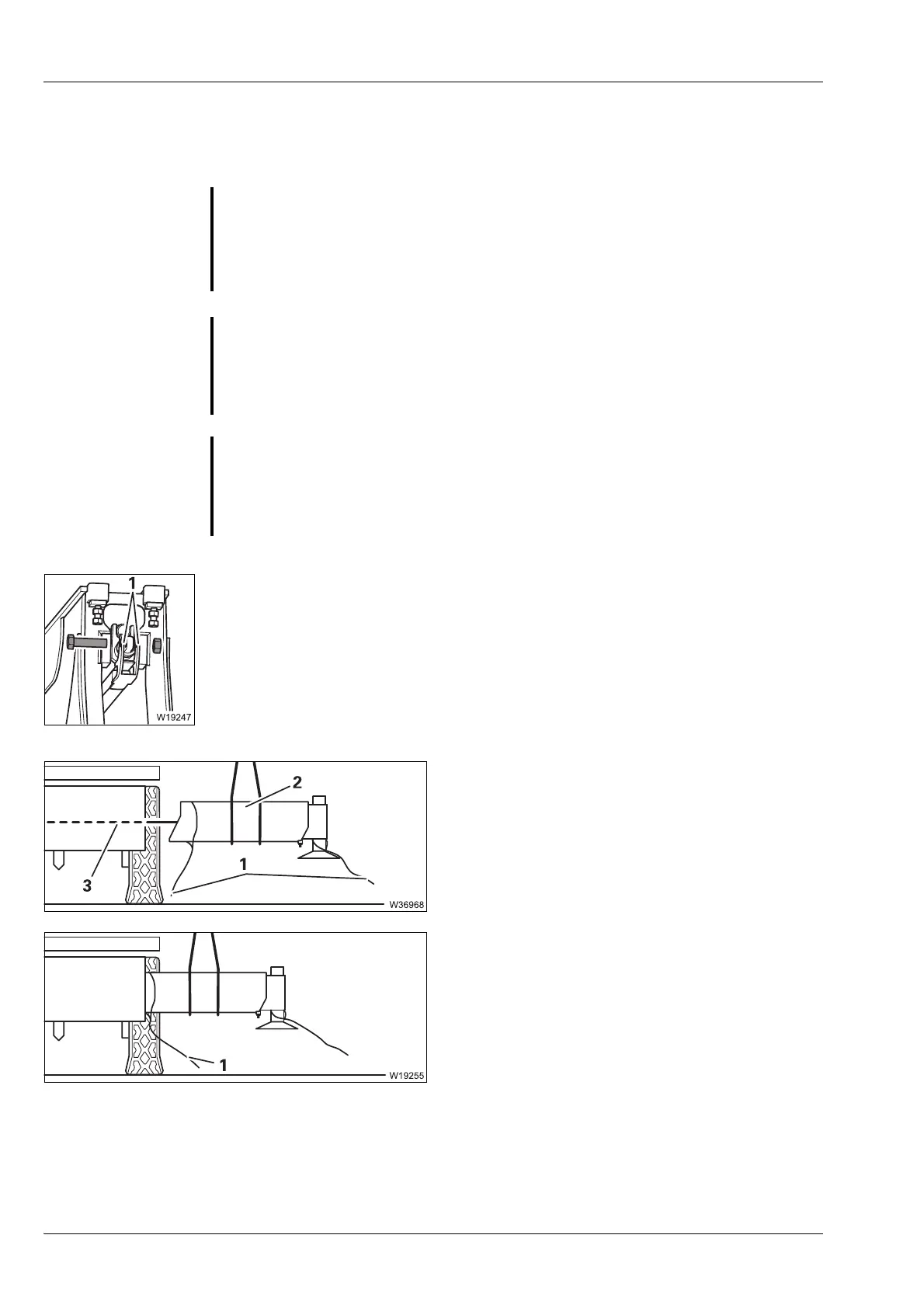

Inserting the out-
rigger beam
• Only insert the outrigger beam at the correct installation point. Note the
information on the label.
• Remove the connecting elements from the connecting points (1) of the
supports.
• Feed lifting gear (3) through the supporting
box and fasten it to the outrigger beam.
• Sling the outrigger beam at the centre of
gravity (2);
à Centre of gravity data, p. 6 - 20.
• Fasten two guide ropes (1).
• Set the outrigger beam in the outrigger box.
• Remove the guide rope (1).
G
Risk of being crushed by the swinging outrigger beam!
Do not guide the outrigger beam with your hands when inserting it.
Always used guide ropes and keep a suitable distance. This will prevent
limbs from being crushed between the supporting box and the outrigger
beam.
S
Risk of damage to hydraulic lines!
Ensure that the hydraulic lines on the outrigger beam do not remain hang-
ing on the supporting box and become damaged.
S
Risk of damage to the spacers!
Check that all spacers have been screwed in completely.
The prevents the spacers from remaining hanging in the supporting box
and becoming damaged.
