Malfunctions in driving mode
8.7 Fuses on the carrier
8 - 56 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

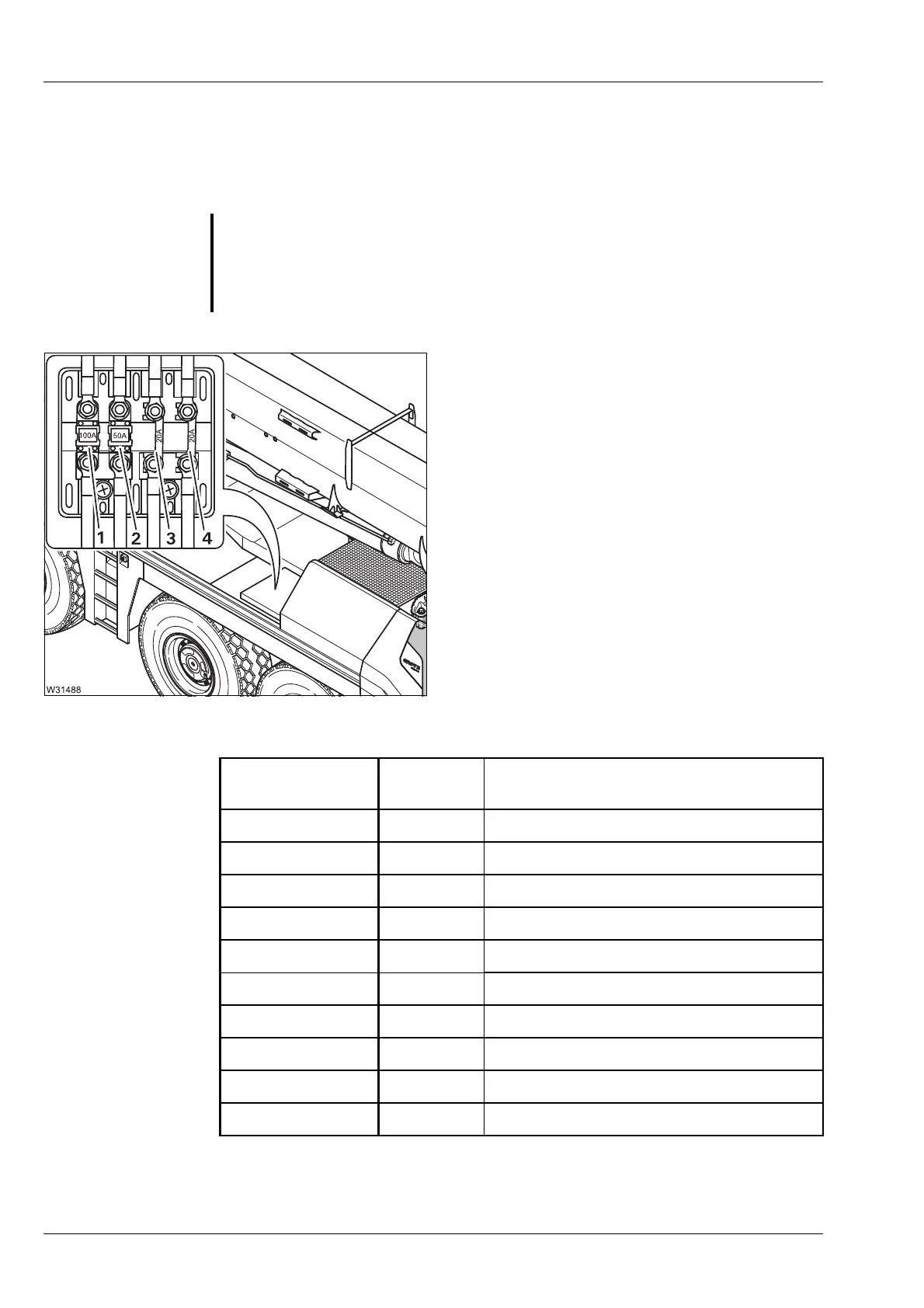

8.7.2 Fuses in the battery box
Fuses F7 to F16 are contained in the battery box.
• Open the battery box.
The fuses are in a terminal box in front of the
batteries.
• Remove the lid from the terminal box.
• Observe the instructions for fuse changes;
à p. 8 - 49.
The fuses F7 to F 16 are located in the terminal box.
S
Danger from lead and lead compounds on batteries
Battery poles, battery terminals and parts of the battery itself contain lead
and lead compounds. Wash your hands after working on these parts or in
these areas.
Designation
Amper-
age (A)
Function
F7 50 Driver's cab central fuse
F8 25 Battery charger socket
F9 25 Superstructure central fuse
F10 10 Steer by wire
F11 20 Superstructure central fuse
F12 25 Driver's cab central fuse
F13 15 Dual tank system central fuse
F14 50 Superstructure central fuse
F15 175 Crane cab heating supply
F16 175 Back-up protection
