Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 736 en 9 - 21
GMK4090
xx.xx.xxxx

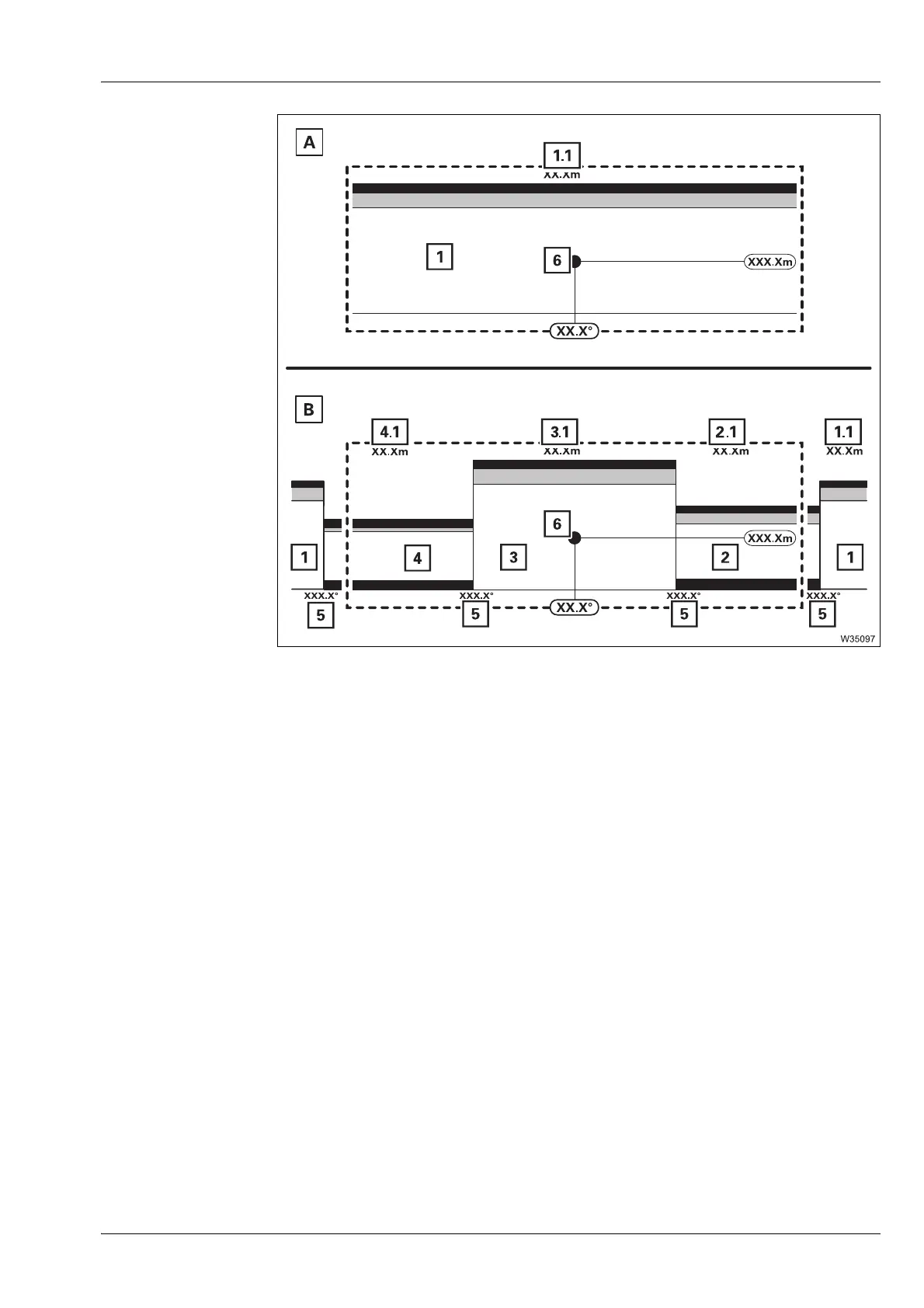

Display Slewing
ranges/working
radii
A For the Standard slewing range type
B For the
MAXbase slewing range type
Display of current slewing range divisions
à p. 9 - 131
1 Slewing range 1
à p. 9 - 131
2 Slewing range 2
à p. 9 - 131
3 Slewing range 3
à p. 9 - 131
4 Slewing range 4
à p. 9 - 131
5 Display of current slewing range limits
à p. 9 - 131
6 Current position display
à p. 9 - 132
Maximum permissible working radius display
à p. 9 - 132
1.1 In slewing range 1
à p. 9 - 132
2.1 In slewing range 2
à p. 9 - 132
3.1 In slewing range 3
à p. 9 - 132
4.1 In slewing range 4
à p. 9 - 132
