Operating elements for crane operation
9.1 Overview of the operating elements
9 - 20 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

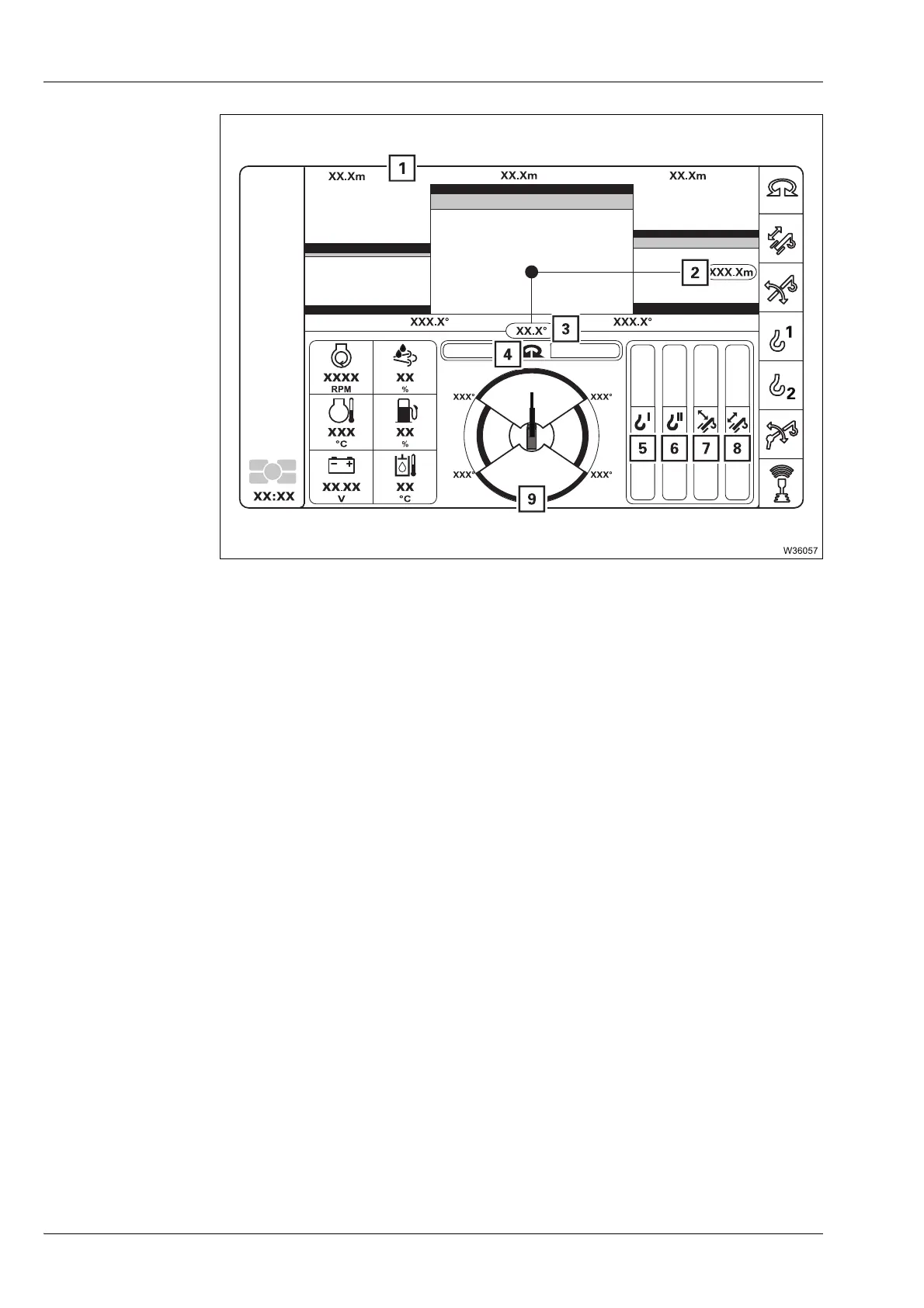

RCL display
1 Display Slewing ranges/working radii à p. 9 - 21
2 Current working radius display
à p. 9 - 132
3 Current slewing angle display
à p. 9 - 132
4 Maximum permissible speed display – Slewing gear
à p. 9 - 133
5 Maximum permissible speed display – Main hoist
à p. 9 - 133
6 Maximum permissible speed display – Auxiliary
hoist
1)
à p. 9 - 133
7 Maximum permissible speed display – Derricking gear
à p. 9 - 133
8 Maximum permissible speed display – Telescoping
mechanism
à p. 9 - 133
9 Slewing range display
à p. 9 - 133
1)
Additional equipment
