Operating elements for crane operation
9.2 Short description of the operating elements
9 - 138 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

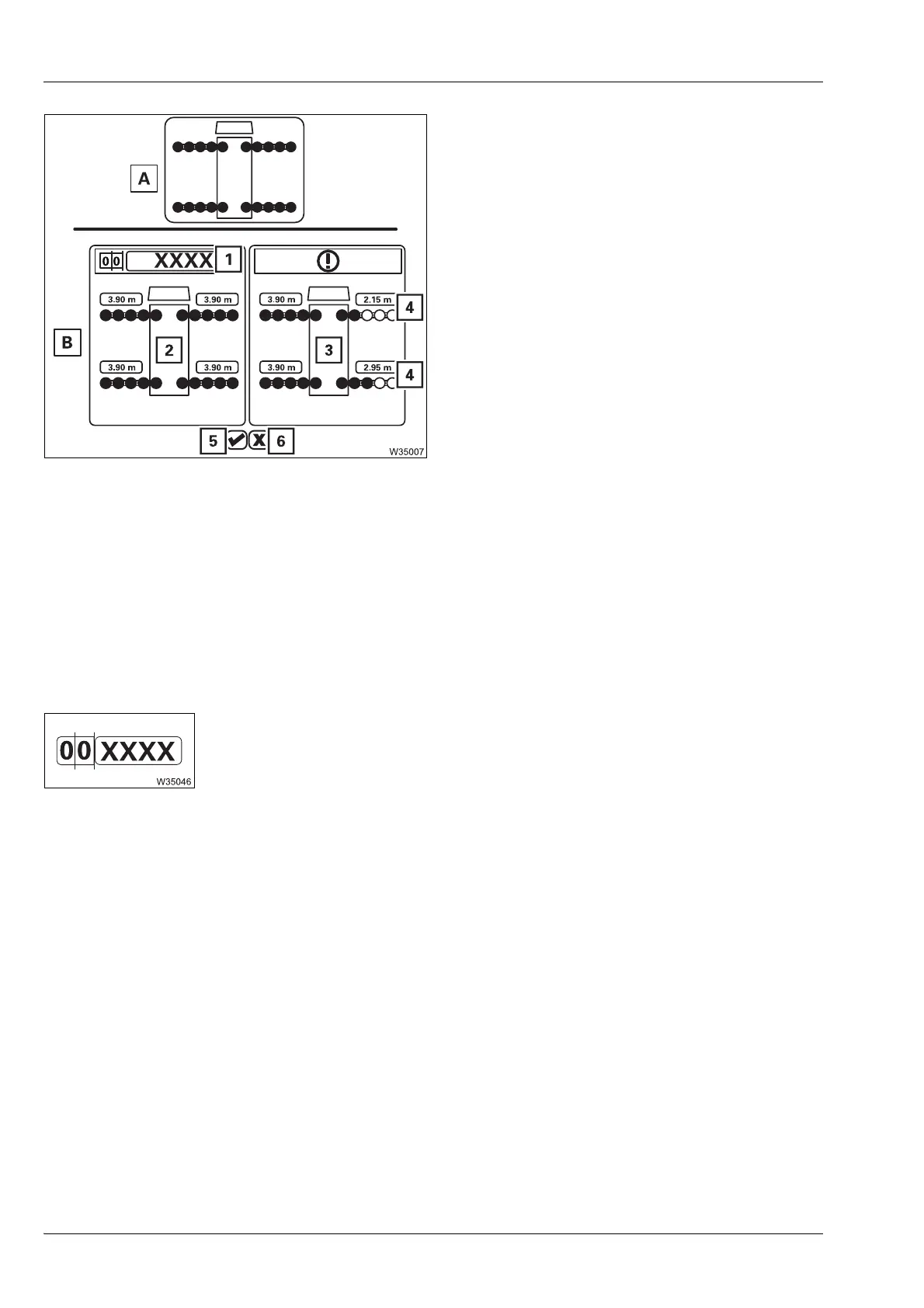

Outrigger span monitoring display
(standard)
Query after confirming the rigging mode.
à Enter rigging mode, p. 11 - 30
Enter RCL code
In input mode – select and confirm the RCL code.
The corresponding rigging mode is displayed;
à p. 11 - 38.
A Measured outrigger width = required
width
B Measured outrigger span ï‚¹ï€ of required
span (query menu)
2 Required outrigger width – for
RCL code (1)
3 Measured outrigger width
4 Outrigger width not OK for
RCL Code (1) – red
5 Confirmation
Rigged outrigger span = outrigger
span (2),
Crane operation enabled
6 Confirmation
Rigged outrigger span  outrigger
span (2)
Crane operation not enabled
