Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 736 en 11 - 35
GMK4090
xx.xx.xxxx

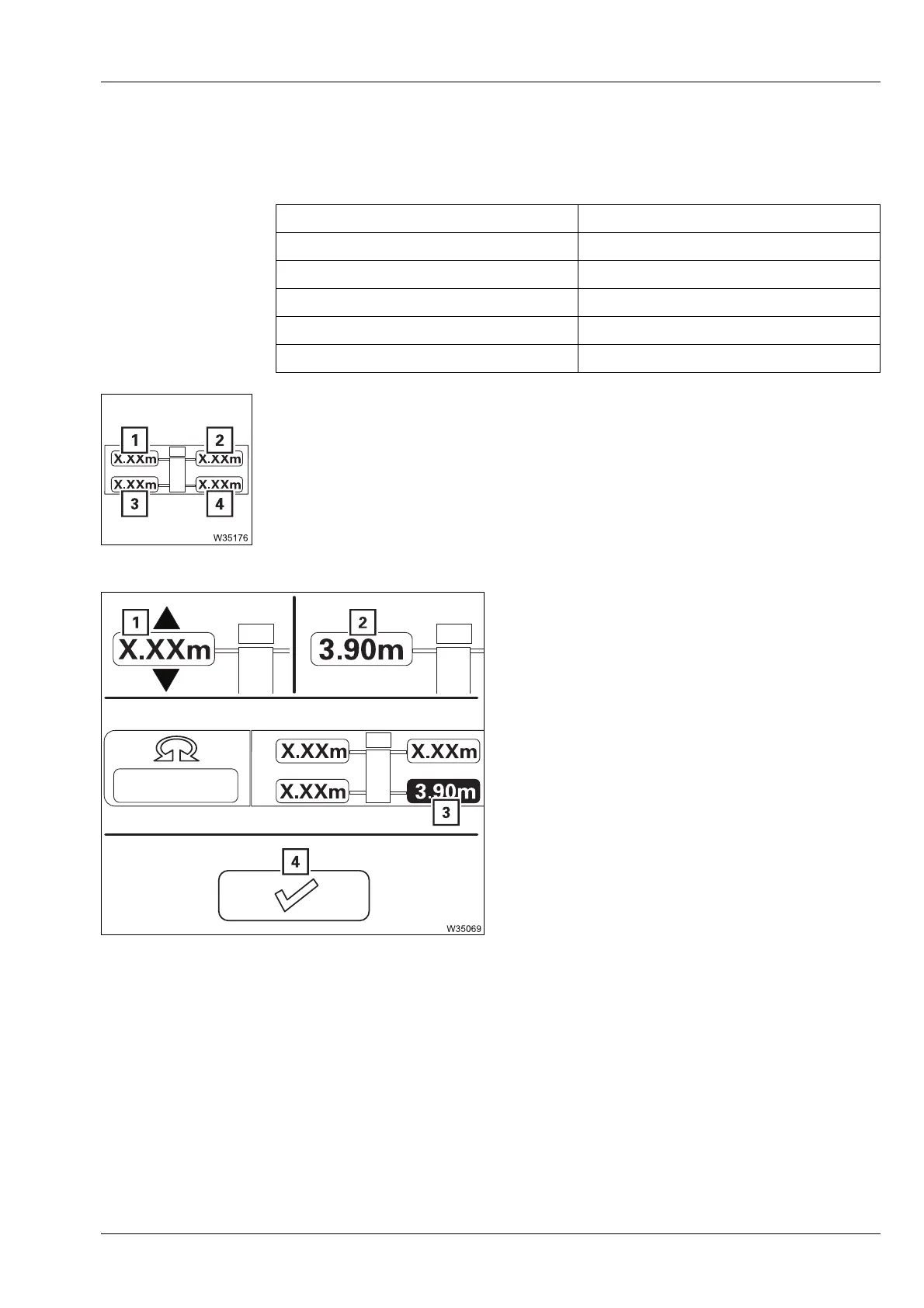

Enter outrigger span (MAXbase)
The outrigger spans are entered as individual widths. If the
Lifting capacity
table
specifies an overall width then select the associated individual width.
If changing an outrigger width would result in an impermissible outrigger
span, then the selection is disabled for this outrigger beam. If necessary,
you must re-enter the outrigger widths in the sequence (1) to (4).
• Select and confirm the display (1) for the
desired outrigger beam.
• Select the rigged individual width (2), e. g.
3.600 m (11.8 ft).
• Confirm the selection.
If the outrigger span measured by the outrig-
ger width monitoring differs from the entered
value then the value (3) is displayed in red.
The symbol (4) becomes grey – the rigging
mode cannot be adopted.
• In this case, rig the necessary outrigger
span.
s
Overall width Individual width
7.200 m (23.6 ft) 3.600 m (11.8 ft)
6.250 m (20.5 ft) 3.125 m (10.3 ft)
5.300 m (17.4 ft) 2.650 m (8.7 ft)
3.800 m (12.4 ft) 1.900 m (6.2 ft)
2.340 m (7.6 ft) 1.170 m (3.8 ft)
