Crane operation
11.4 Operation of the rated capacity limiter
11 - 36 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

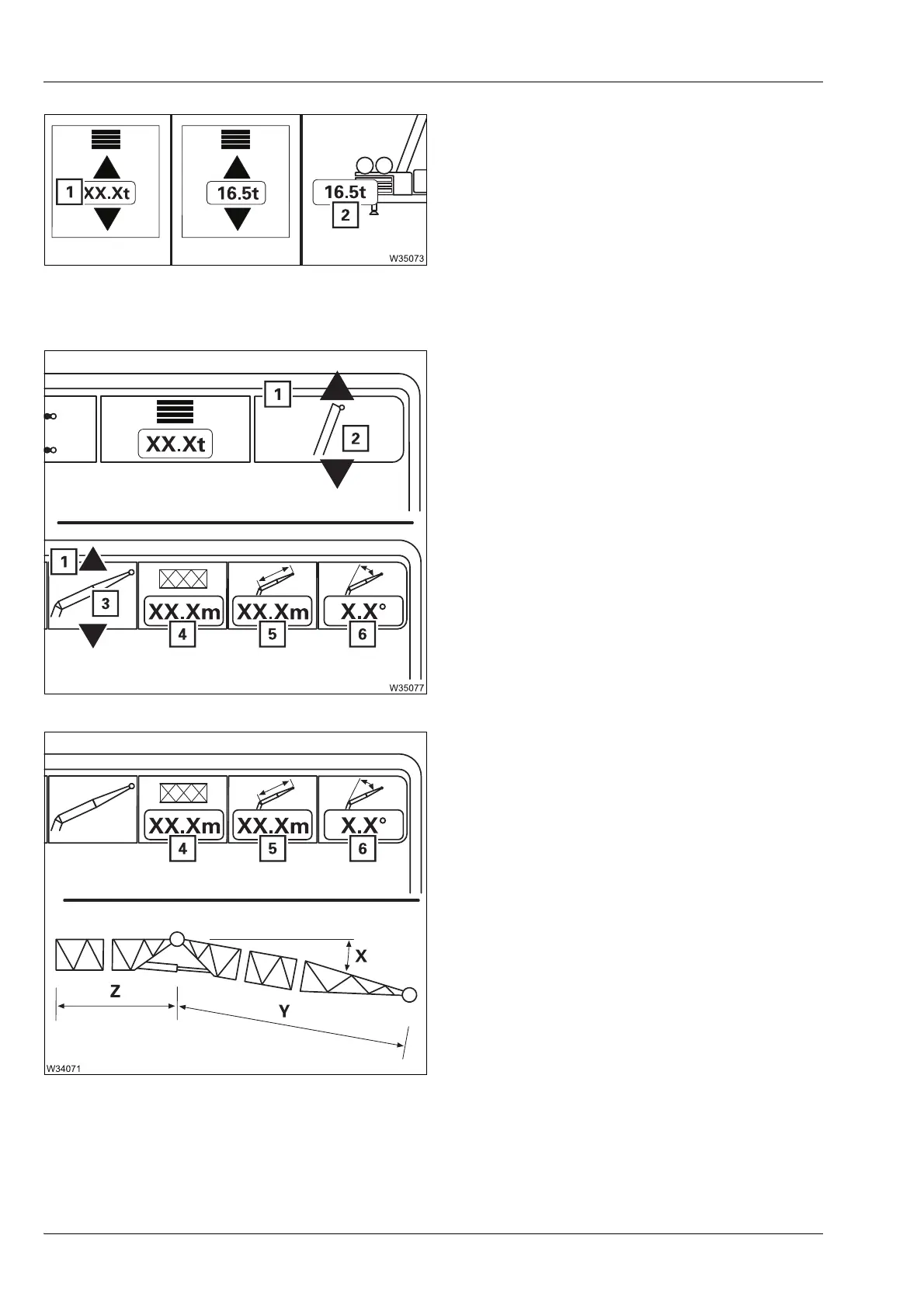

Counterweight
• Select and confirm the display (1).
• Select the rigged counterweight combina-
tion, for example, 16.5 t.
• Confirm the selection.
The display (2) shows the entered counter-
weight combination.
Boom system
For the
Standard slewing range type only.
• Select and confirm the display (1).
• Select the symbol for the rigged boom sys-
tem.
• Confirm the selection.
When selecting
Lattice extension additional
displays (4) to (6) are shown – selection and
confirmation is performed in the same man-
ner as with display (1).
– Display (4)
• Select an confirm the current length (Z)
before the angle.
– Display (5)
• Select an confirm the current length (Y)
after the angle.
– Display (6)
Only for inclinable lattice extensions.
• Select and confirm the currently rigged
angle (X).
2 main boom
3 Lattice extension
