Crane operation
11.4 Operation of the rated capacity limiter
Operating manual 3 302 736 en 11 - 51
GMK4090
xx.xx.xxxx
On the CCSdisplay After confirming a permissible rigging mode, the Start menu opens automat-
ically.
Slewing range type
Standard
If the MAXbase slewing range type has been entered; Ã p. 11 - 53.
The RCL display differs according to the confirmed slewing range.

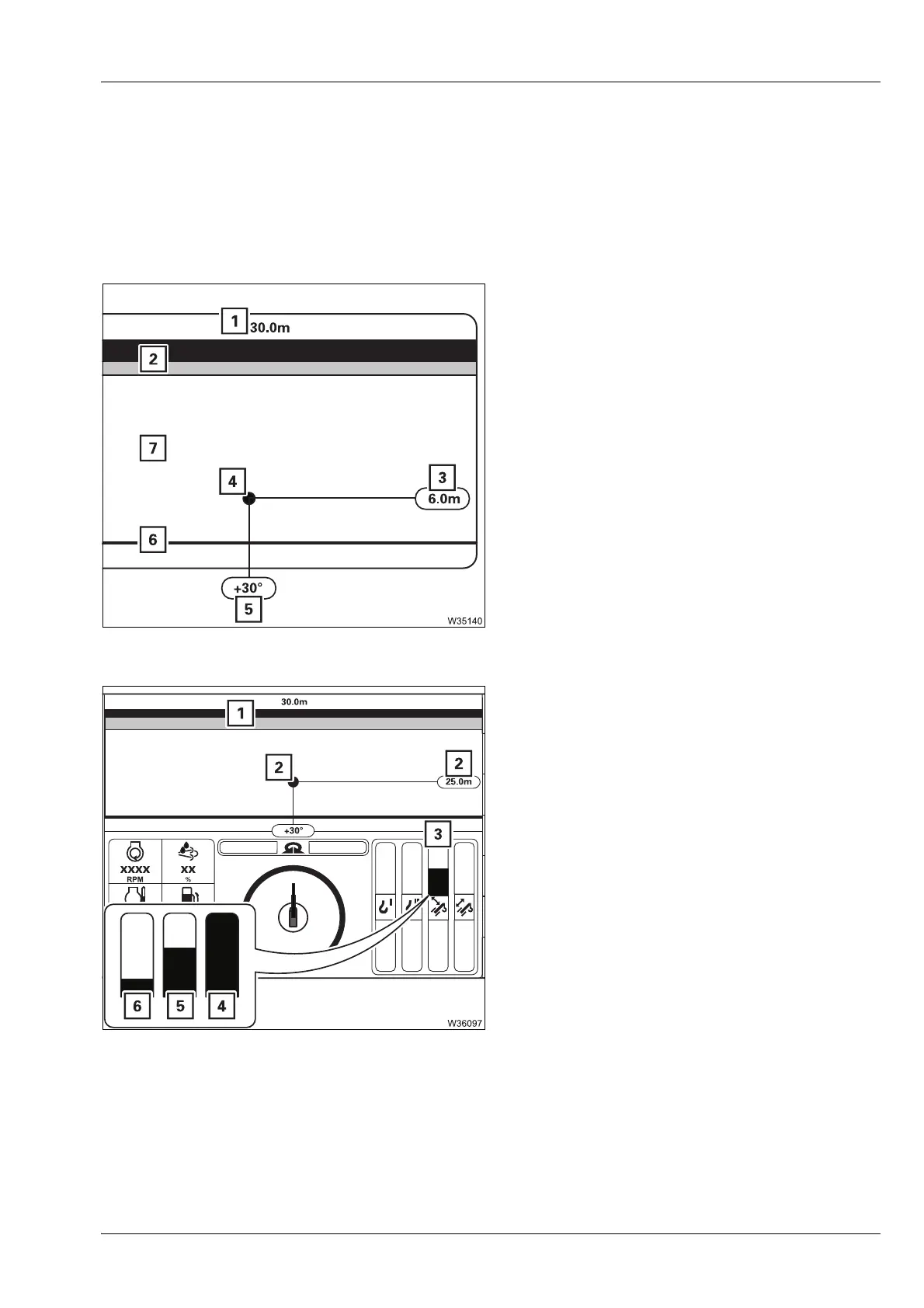

360° slewing range
The diagram (7) covers the entire width. The
height of the diagram corresponds to the max-
imum permissible working radius (1), for
example, 30 m (100 ft).
The current position of the boom head is
shown using the symbol (4) and defined by
two displays.
The shutdown range for the maximum work-
ing radius (2) is shown in colour and – if active
– the shutdown range for the minimum work-
ing radius (6) is displayed.
– When telescoping or derricking
The displays (2) move up and down to show
the current working radius, e.g. 25 m (20 ft).
In a shutdown range (1) the movement
towards the shutdown limit is continually
reduced until reaching a standstill.
The corresponding display (3) shows the
current speed reduction, e.g. for lowering
the boom.
s
3 Current working radius, e.g. 6 m (20 ft)
5 Current slewing angle, for example +30°
4 Green: 26% to 100%
5Yellow: 11% to 25%
6Red: 0% to 10%
