11.5 Crane operation with main boom
11 - 96 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx
Switching on the
telescoping mech-
anism
After the ignition is switched on, all of the power units will be switched off
and the lamps in the corresponding buttons will light up only dimly.

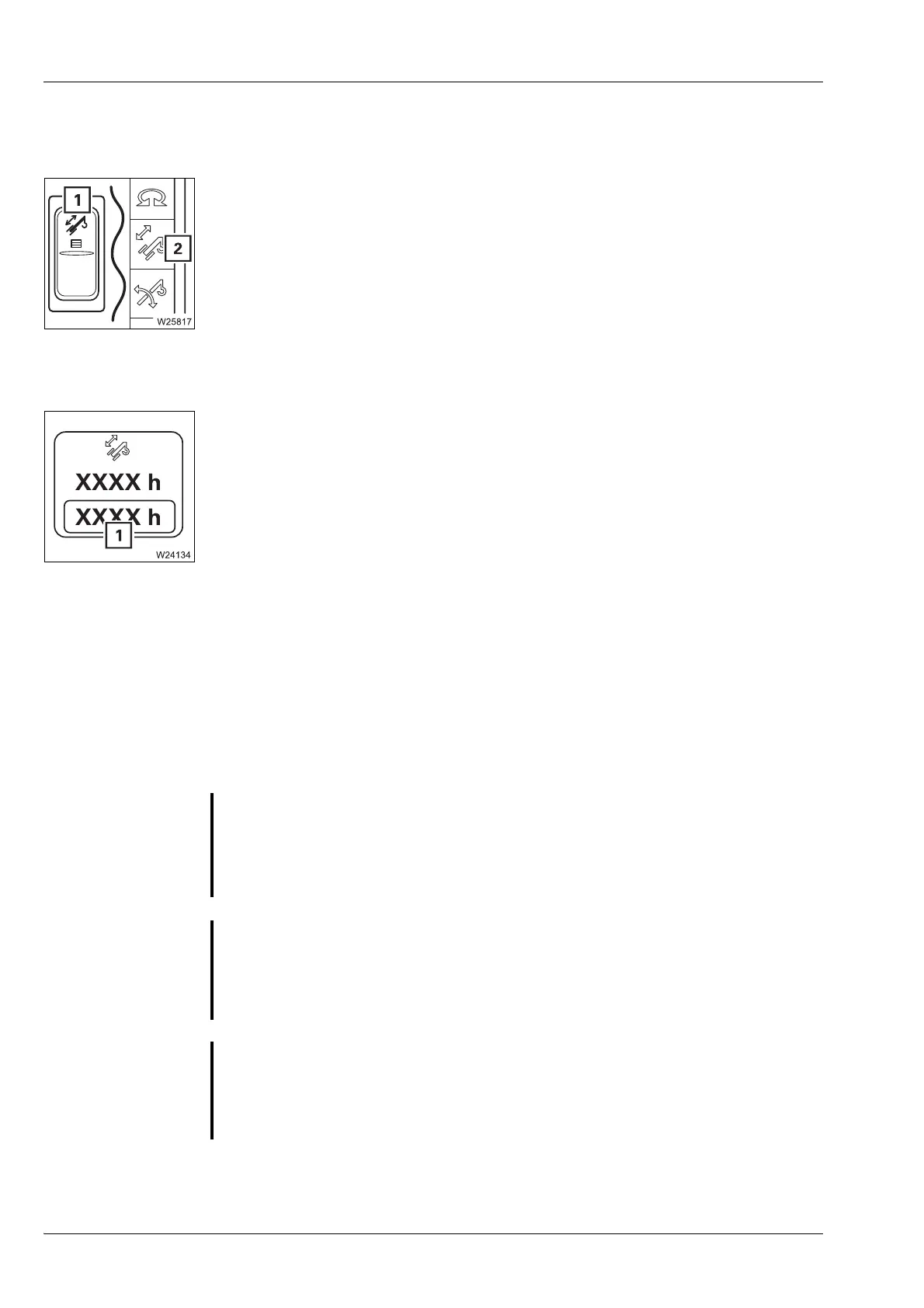

• Press the button (1) once.
– The lamp in button (1) will light up brightly.
– The symbol (2) will be green if the telescoping mechanism is
switched on.
If the control lever is assigned more than one function, all other power units
which are assigned to the same control lever movement will be switched
off;
à Control lever assignment, p. 9 - 14.
You can have the operating hours (1) of the telescoping mechanism dis-
played;
à p. 11 - 131.
Function of the
control lever
This section only describes the function of the control lever. Before tele-
scoping, a number of prerequisites need to be fulfilled as well.
– Before manual telescoping;
à p. 11 - 99.
– Before telescoping with teleautomation;
à p. 11 - 108.
You can adjust the sensitivity of the control levers to suit the operating con-
ditions;
à Setting the characteristic curves for the control levers, p. 11 - 127.
.
G
Risk of accident due to unexpected crane movements
In the case of multiple configuration, check whether the control lever
Tele-
scoping
function is switched on before you move the control lever for tele-
scoping.
This prevents accidents caused by unexpected derricking.
G
Risk of accidents due to gaps in monitoring
Boom extension will only be monitored completely if
– The lifting limit switch is correctly rigged;
à p. 12 - 141
– The lifting limit switch is not overridden;
à p. 11 - 81.
S
Risk of damage to the hoist rope
The rope can become slack if the hook block touches the ground during
retraction operations. Rope loops will form, which can cause the load to slip
and damage the hoist rope.
