Rigging work
12.8 Outrigger operation
12 - 50 3 302 736 en Operating manual
GMK4090
xx.xx.xxxx

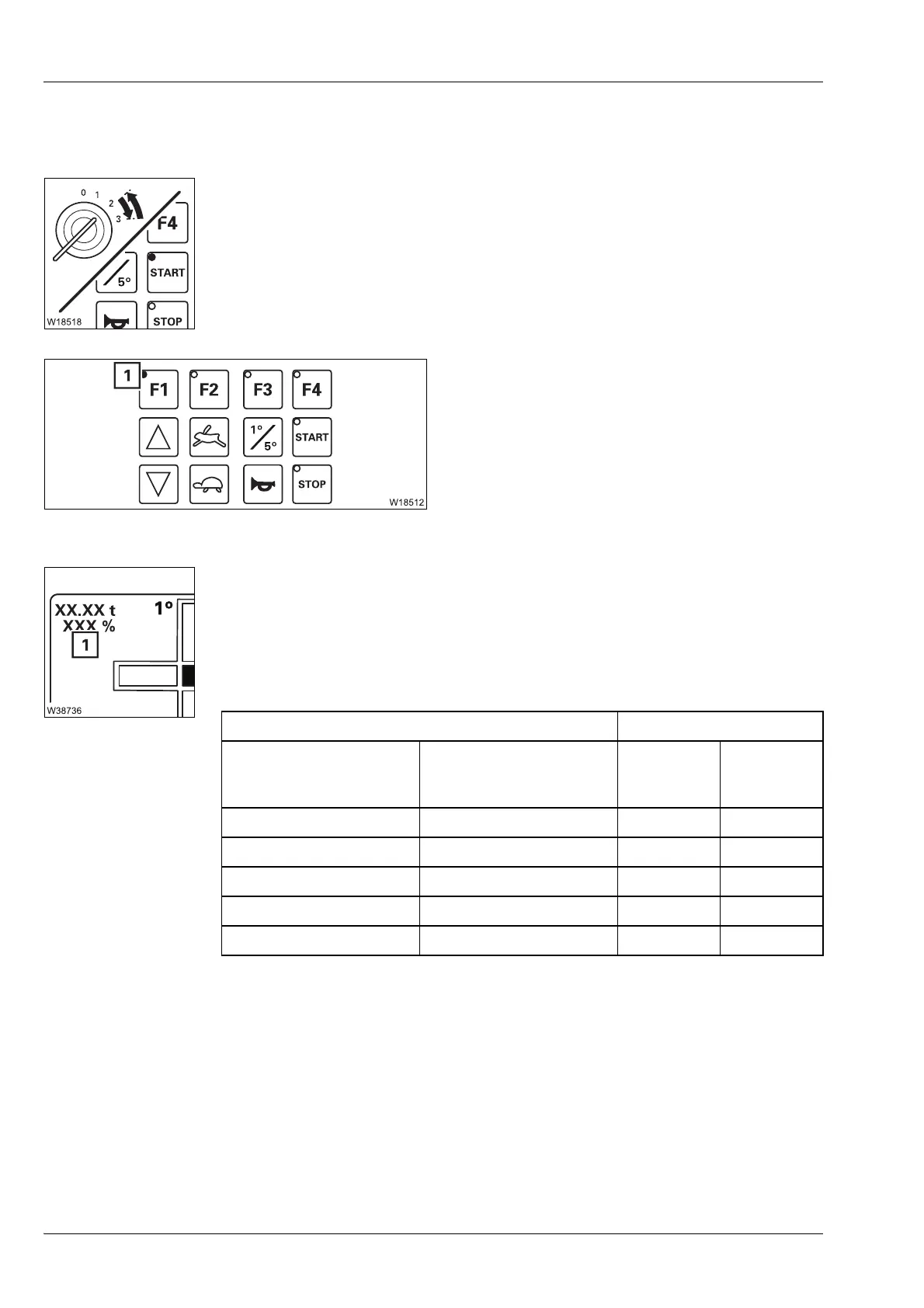

From the control
units
Starting the engine
• Start the engine from the driver's cab; à p. 4 - 14.
You can also start the engine from the control units;
à p. 12 - 27.
Switching on the lighting
Only the lamp (1) lights up after opening the
door.
• Press any button.
The lights are switched on.
Display of the outrigger span
The value might deviate partially from the percent specifications in the
Lifting capacity table. The table gives an overview of what percent (1) you
have to move the outrigger beam at the control unit to get to the desired
outrigger span.
Length specifications Per cent
Overall widths Individual widths
Control
unit
Lifting
capacity
table
7.200 m (23.6 ft) 3.600 m (11.8 ft) 100% 100%
6.250 m (20.6 ft) 3.125 m (10.3 ft) 81% 80%
5.300 m (17.4 ft) 2.650 m (8.7 ft) 61% 60%
3.800 m (12.4 ft) 1.900 m (6.2 ft) 31% 40%
2.340 m (7.6 ft) 1.170 m (3.8 ft) 0% 0%
