Rigging work
12.10 Rigging work on the main boom
Operating manual 3 302 736 en 12 - 129
GMK4090
xx.xx.xxxx

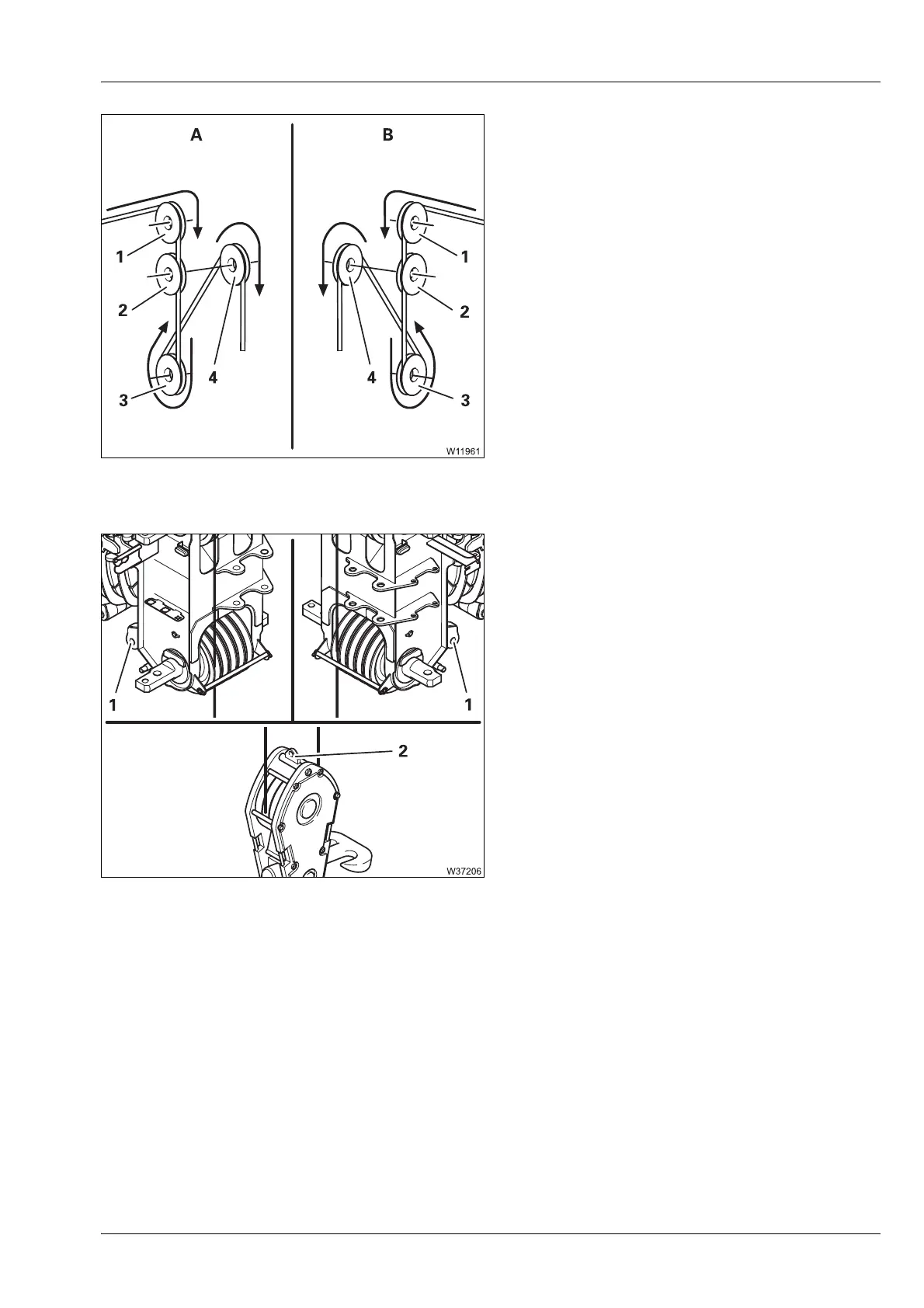

Hoist rope, reeving
• Guide the hoist rope over the upper head
sheave (1) to the lower head sheave (2).
• Guide the hoist rope from the front around
the outer pulley (3) of the hook block,
upwards to the main boom head.
• Guide the hoist rope from the rear over the
next required head sheave (4), etc.
• Reeve the hoist rope with the required
number of lines.
Possible reevings;
à p. 12 - 134.
Fastening the hoist rope
The fixed point used depends on the number
of reeved rope lines.
– Fixed point for an even number of lines
The rope end clamp is fastened to the fixed
point (1) with 2-fall, 4-fall, 6-fall etc. reev-
ings.
– Fixed point for an odd number of lines
The rope end clamp is fastened to the fixed
point (3) for 1-fall, 2-fall, 5-fall reevings etc.
s
A For the main hoist rope
B For the auxiliary hoist rope
